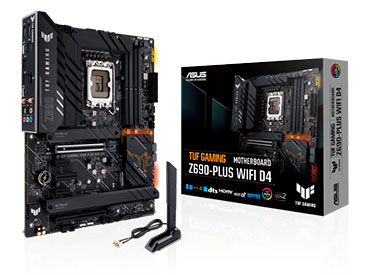

Marca: ASUS
Modelo: TUF GAMING Z690-PLUS WIFI D4
Socket: Intel® Socket LGA1700
Chipset: Intel® Z690 Express
Soporte de Procesadores:
- Intel® 12ᵃ generación: Procesadores Intel® Core™, Pentium® Gold y Celeron®

Tarjeta madre para juegos Intel® Z690 (LGA 1700) ATX, 15 fases de poder DrMOS, PCIe® 5.0, memoria DDR4, cuatro puertos M.2, WiFi 6 y Ethernet Intel de 2.5Gb, HDMI®, DisplayPort™, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 2 Type C frontal, SATA 6 Gbps, Thunderbolt™ 4 e iluminación Aura Sync RGB

- Socket Intel® LGA 1700: Listo para procesadores Intel® Core™ de 12.ª generación.
- Solución de energía mejorada: 14 + 1 fases de poder DrMOS, PCB de seis capas, conectores ProCool, chokes de aleación y capacitores duraderos para una entrega de energía estable.
- Conectividad de próxima generación: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, USB 3.2 Gen 2 Type-C frontal y Thunderbolt™ 4.
- Hecha para juegos en línea: WiFi 6, Intel 2.5 Gb Ethernet y TUF LANGuard.
- Cancelación de ruido de IA bidireccional: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
- Refrigeración completa: Disipador de calor VRM ampliado, disipador de calor PCH sin ventilador, disipadores de calor M.2, puertos de ventilador híbridos y utilidad Fan Xpert 4 en Armory Crate.
- Efectos RGB Aura deslumbrantes: Elegante diseño de iluminación de borde y PCH, puertos RGB direccionables y soporte para tiras RGB.

Memoria:
- Soporte para módulos de memoria Non-ECC, Un-buffered DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- 4 x DIMM, Max Memory Size: 128GB
- Arquitectura de memoria Dual Channel
- ASUS OptiMem II
- Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1 x HDMI® port *
* Supports 4K@60Hz as specified in HDMI 2.1.
- 1 x DisplayPort 1.4 **
** Supports max. 4K@60Hz as specified in DisplayPort 1.4

Puertos de expansión:
Intel® 12th Gen Processors:
- 1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset:
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x4 slot
- 2 x PCIe 3.0 x1 slots

Almacenamiento:
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

LAN:
- Intel 2.5 Gb Ethernet y TUF LANGuard

Wireless y Bluetooth:
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

Audio:
ALC887/897
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover

USB:
Rear USB: Total 8 ports:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Front USB: Total 7 ports:
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Características Especiales de ASUS:
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design:
- M.2 Q-Latch
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
- ASUS Q-Slot
ASUS Thermal Solution:
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY:
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Características de Software:
ASUS Exclusive Software:
Armoury Crate:
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS:
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Soporte Sistema Operativo:
- Windows 11 64-bit
- Windows 10 64-bit

Puertos E/S traseros:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Puertos internos:
1 x Thunderbolt 4 header
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Accesorios:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF GAMING sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide

Garantía: 36 Meses
