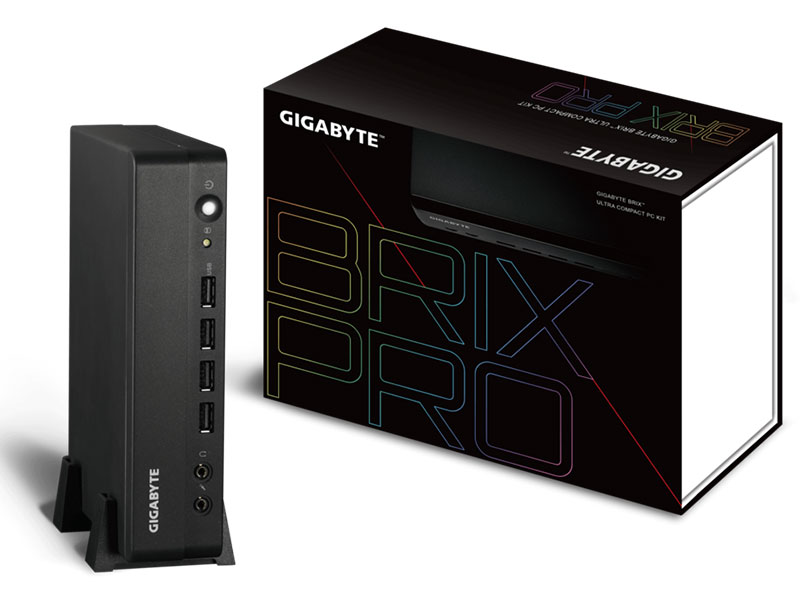

KIT de PC Ultra Compacta Gigabyte BRIX PRO AMD Ryzen™ V1605B
Small Outside, Powerful Inside - AMD Ryzen Embedded V1000 APU
The AMD Ryzen Embedded V1000 APU family offers ultra-high performance and class leading integration.
The GB-BSRE-1605 BRIX PRO model sports the AMD Ryzen Embedded V1605B APU which combines “Zen” CPU and “Vega” GPU cores to achieve breakthrough SoC performance. Moreover, it supports up to four 4K display outputs. All these in a single device!
Características Principales:
- AMD® Ryzen™ Embedded V1605B Quad Cores Processor
- Integrated Graphics Processor – Radeon™ Vega 8 Graphics
- Dual Channel DDR4 2400MHz, 2 x SO-DIMMs, Max. 32GB
- 4 x HDMI ports, supporting a maximum resolution of 4096x2160@60Hz
- 2 x GbE LAN ports, Wi-Fi 802.11ac / BT4.2
- ALC 269 Audio Codec
- 2 x M.2 for SSD (1 x PCIe/SATA Mode, 1 x SATA Mode)
- 1 x Mini PCI slot
- 4 x USB 2.0 (Front), 2 x USB 3.2 (Back)
- Headphone/microphone jack
- Support VESA Mount
Especificaciones Técnicas:
Marca: Gigabyte
Modelo: BRIX PRO - GB-BSRE-1605 (rev. 1.0)
Dimensiones: 196.2 x 44.4 x 140 mm, 1.16L
Motherboard Size: 3.5" SBC, 146 x 102 mm
CPU: AMD Ryzen™ Embedded V1605B
- 4 Cores / 8 Threads, 6M Cache, 2.0 – 3.6 GHz, 25W TDP
Memoria: 2 x SO-DIMM DDR4 2400MHz, Max. 32GB
- Dual channel memory architecture
LAN: Dual Realtek RTL8111H GbE LAN
Wifi Card: Intel® Wi-Fi 802.11ac / BT4.2
Graphics: AMD Radeon™ Vega 8 Graphics
- GPU Max: 1100 MHz
- GPU CU: 8
Audio: ALC 269 Codec
HDMI Resolution (Max.): 4 x HDMI 2.0 @4K/60P
- Max. Bandwidth 4K / 90P
Storage:
- 1 x M.2 PCIe x4/SATA Mode
- 1 x M.2 SATA Mode
Expansion Slots: Mini PCI slot

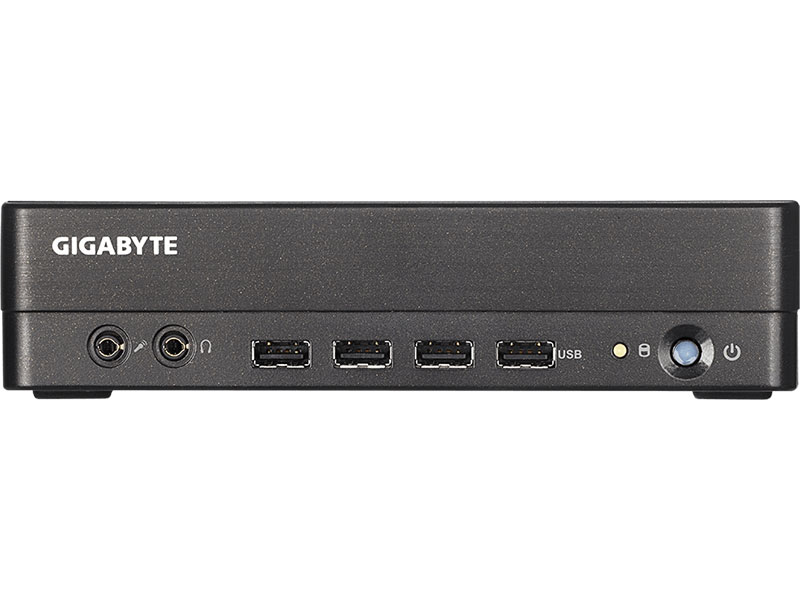

Front I/O:
- 4 x USB 2.0
- 1 x Headphone / Mic Jack
- 1 x Power Button

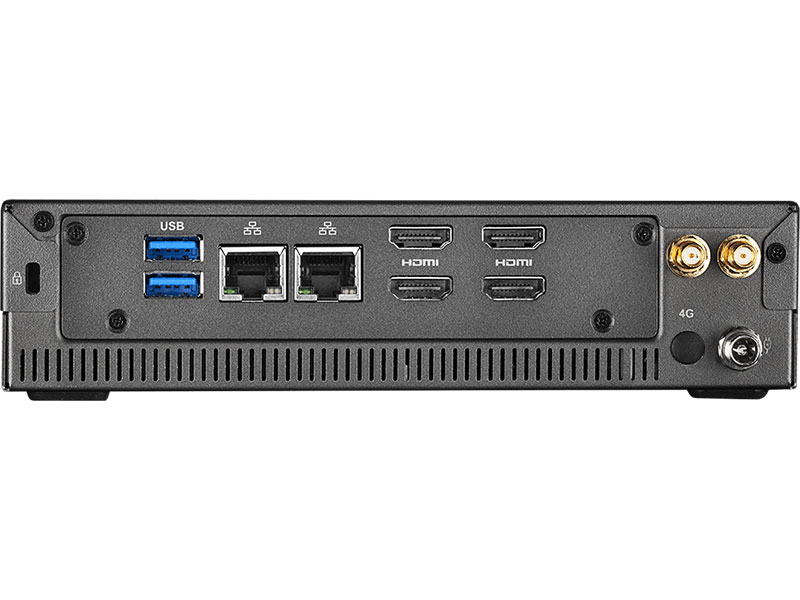

Rear I/O:
- 4 x HDMI 2.0
- 2 x USB 3.1 Gen 2
- 2 x GbE LAN ports
- 1 x DC-In
Power Supply:
- Input: 100-240V
- Output: 7.1A 19V, 135W
VESA:
- Bracket included
- Supports 75 x 75 and 100 x 100 mm
Support OS: Microsoft Windows 10 Home/Pro/IoT, Linux
Environment:
- Operating Temperature: 0°C to 35°C
- Storage Temperature: -20°C to +60°C
Garantía: 36 Meses
NOTA:
El equipo NO incluye: Disco SSD y/o Memoria RAM
