KIT de PC Ultra Compacta Gigabyte BRIX PRO Intel® Core™ i3-1115G4
The Perfect Fit for Any Space
The BRIX PRO models are following a modern design with metal and plastic parts. They are compact to fit perfectly in any environment from home to a retail store. They can be placed horizontally or vertically according to your needs every time. They feature a VESA mount so they can be attached to the back of the display or almost anywhere! With a broad choice of processors covering the entire performance spectrum, BSi3-1115G4 can serve the most demanding applications with its high processing power and the multiple display support.
Características Principales:
- Intel® 11th Gen CoreTM Processor ( Tiger Lake UP3)
- Dual Channel DDR4, 2 x SO-DIMMs 3200MHz, Max. 64GB
- 4 x HDMI port, supporting a maximum resolution 4K/60P
- 1 x Thunderbolt 4 Port
- Intel® AX201 Wifi 6 + BT5.2
- Intel® 2.5G + Gigabit Ethernet (225V+219V)
- ALC255 Audio Codec
- 2 x M.2 for SSD (1 x PCIe Gen 4 x4 + 1 x PCIe x4/SATA Mode)
- 4 x USB 3.2 (Front), 2 x USB 3.2 (Back)
- Headphone/microphone jack
- Support VESA Mount
Especificaciones Técnicas:
Marca: Gigabyte
Modelo: BRIX PRO - GB-BSi3-1115G4 (rev. 1.0)
Dimensiones: 196.2 x 44.4 x 140 mm, 1.16L
Motherboard Size: 3.5" SBC, 146 x 102 mm
CPU: Intel® Core™ i3-1115G4
- 2 Cores / 4 Threads, 6M Cache, 1.7 - 4.1GHz, 28W
Memoria: 2 x SO-DIMM DDR4 3200MHz, Max. 64GB
- Dual channel memory architecture
LAN: Intel 219V+225V (GbE+2.5G)
Wifi Card: Intel AX201 Wi-Fi 6 / BT5.2
Graphics: Intel® UHD Graphics for 11th Gen Intel® Processors
Audio: ALC 255 Codec
HDMI Resolution (Max.): 4 x HDMI 2.0a @4K/60P
Storage:
- 1 x M.2 2280 support PCIe Gen4 x 4 NVMe SSD
- 1 x M.2 2280 support PCIe Gen3 x 4 NVMe SSD or SATA SSD

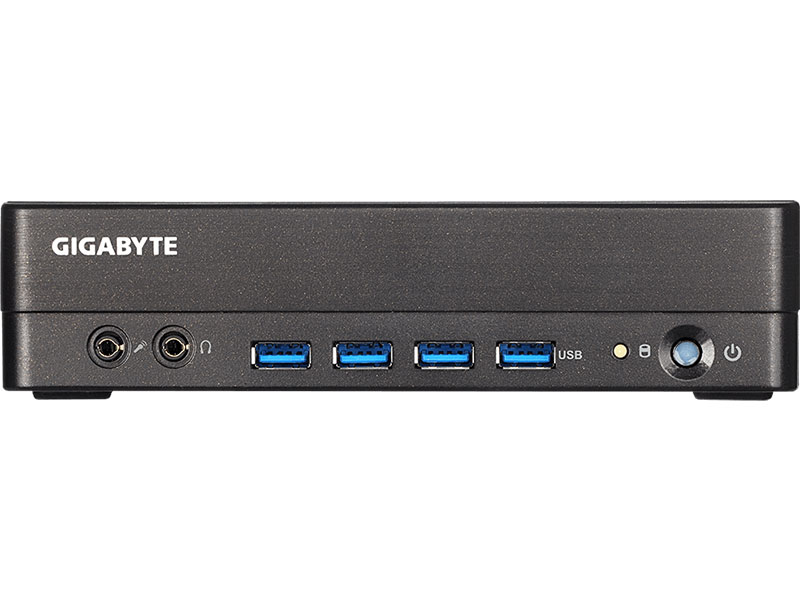

Front I/O:
- 4 x USB 3.2
- 1 x Headphone / Mic Jack
- 1 x Power Button

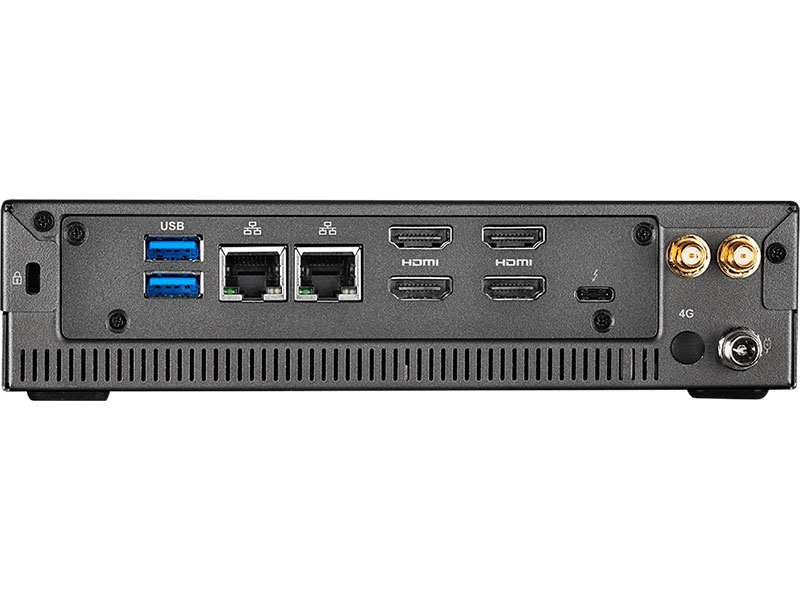

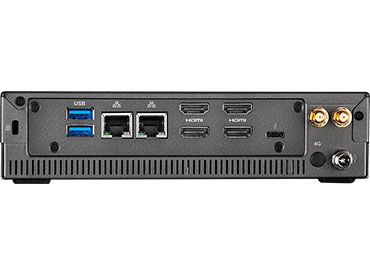

Rear I/O:
- 4 x HDMI 2.0a
- 1 x Thunderbolt 4 / USB 4.0
- 2 x USB 3.2 Gen 2
- 2 x GbE LAN ports
- 1 x DC-In
Power Supply:
- Input: 100-240V
- Output: 7.1A 19V, 135W
VESA:
- Bracket included
- Supports 75 x 75 and 100 x 100 mm
Support OS: Microsoft Windows 10 Home/Pro/IoT, Linux
Environment:
- Operating Temperature: 0°C to 35°C
- Storage Temperature: -20°C to +60°C
Garantía: 36 Meses
NOTA:
El equipo NO incluye: Disco SSD y/o Memoria RAM
