Marca: ASUS
Modelo: A68HM-PLUS
Socket: FM2+
Chipset: AMD A68H FCH (Bolton D2H)
Soporte de Procesadores:
- AMD A series
- AMD Athlon™ series
- Soporta CPU de hasta 4 Cores
- Soporta AMD® Turbo Core 3.0 Technology

Memoria:
2 x DDR3 DIMM, Max. 16GB
DDR3 2400(O.C.)/2133/1866/1600/1333 MHz
Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con AMD Memory Profile (AMP)

Gráficos:
Gráficos integrados en el APU (AMD Radeon™ R/HD8000/HD7000 Series)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz
- DVI con una resolución máxima de 2560 x 1600 @ 60 Hz
- D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 2 GB

Puertos de expansión:
1 x PCI Express 3.0 x16 slot, running at x16
1 x PCI Express 2.0 x1 slot
1 x PCI slot

Tecnología Multi-Gráficos:
Soporte para AMD® Dual Graphics technology

Almacenamiento:
Chipset:
4 x SATA 6Gb/s connectors
Soporta Raid 0, 1, 10 y JBOD

LAN:
Realtek® 8111GR, 1 x Gigabit LAN Controller(s)

Audio:
Realtek® ALC887-VD codec
High Definition Audio
2/4/5.1/7.1-channel
Soporte para: Jack-detection, Multi-streaming, Front Panel Jack-retasking

USB:
ASMedia® ASM1042 controller:
2 x USB 3.0/2.0 ports (2 puertos en panel posterior)
AMD A68H FCH (Bolton D2H) chipset :
2 x USB 3.0/2.0 ports (2 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (2 puertos en panel posterior, 4 puertos mediante el header USB interno)

Soporte Sistema Operativo:
Windows 7 , 32bit/64bit
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit
Windows® XP 32bit

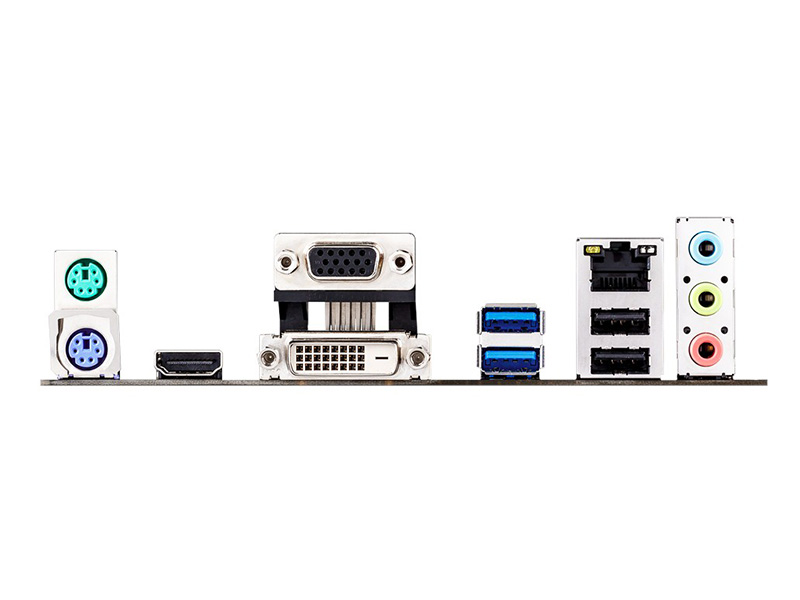

Conectores:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.0 (blue)
2 x USB 2.0
3 x Audio jack(s)

Tamaño:
Micro ATX Form Factor
22.6 cm x 18.3 cm

Caracteristicas Especiales:
ASUS 5X Protection :
- ASUS DIGI+ VRM - 3 + 2 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot

BIOS:
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

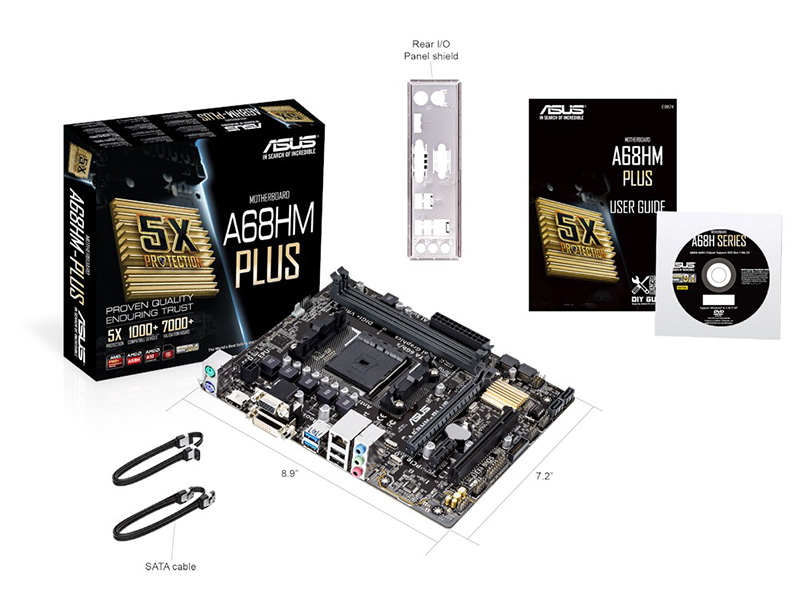

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk
Quick Installation Guide

Garantía: 36 Meses
