Marca: ASUS
Modelo: B150M-A D3
Socket: Intel® Socket 1151
Chipset: Intel® B150
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0

Memoria:
4 x DIMM, Max. 64GB
DDR3 1866(O.C.)/1600/1333 MHz
Memorias Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- RGB con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1024 MB
Soporta hasta 3 monitores simultaneos

Puertos de expansión:
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1

Almacenamiento:
Intel® B150 chipset:
6 x SATA 6Gb/s port(s), gray

LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Soporta: Jack-detection, MIC Jack-retasking en el panel frontal
Características de audio:
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB:
Intel® B150 chipset:
6 x puerto(s) USB 3.0/2.0 (4 en panel posterior, azul, 2 en placa)
6 x puerto(s) USB 2.0/1.1 (2 en panel posterior, negro, 4 en placa)

Características Especiales:

ASUS 5X Protection:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- ESD Guards
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer

Soporte Sistema Operativo:
Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 , 32bit/64bit

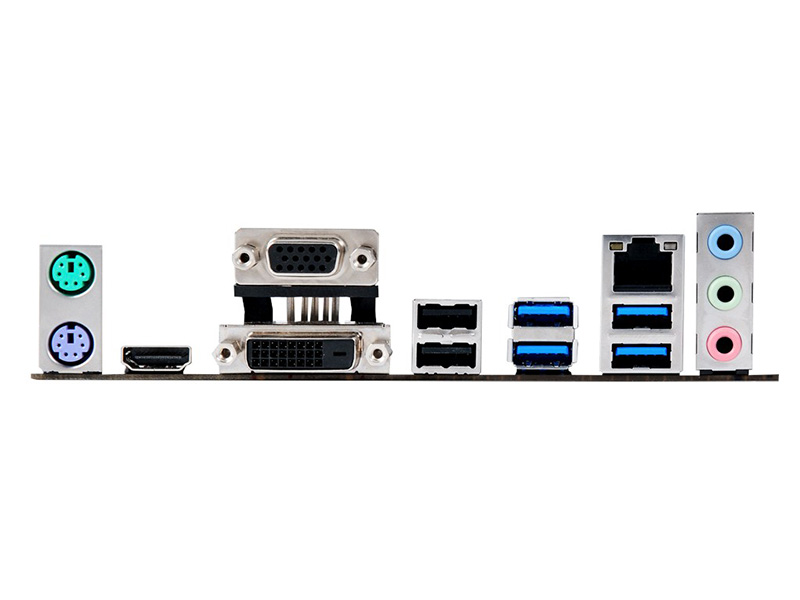

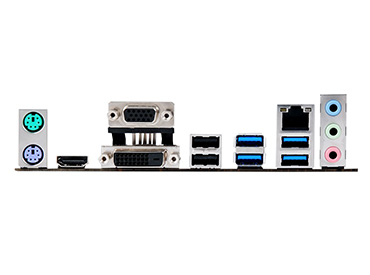

Conectores:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Tamaño:
mATX Form Factor
23.4 cm x 20.1 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

Garantía: 36 Meses
