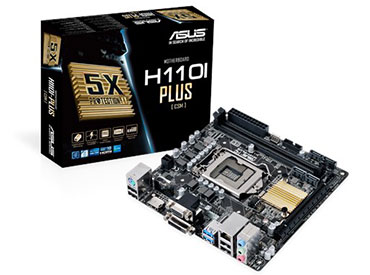

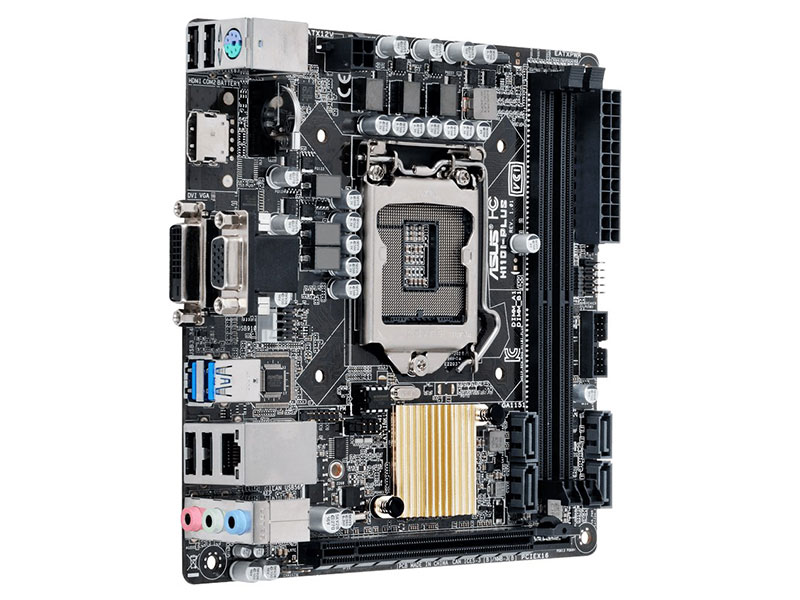

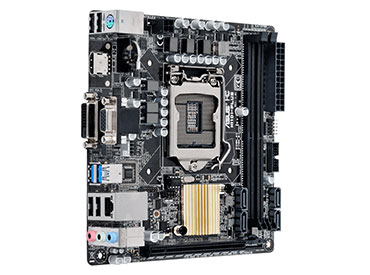

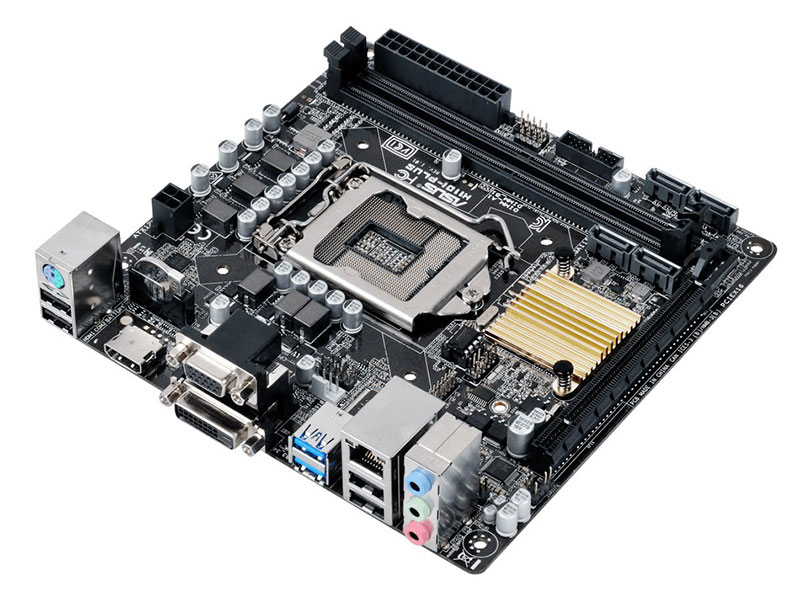

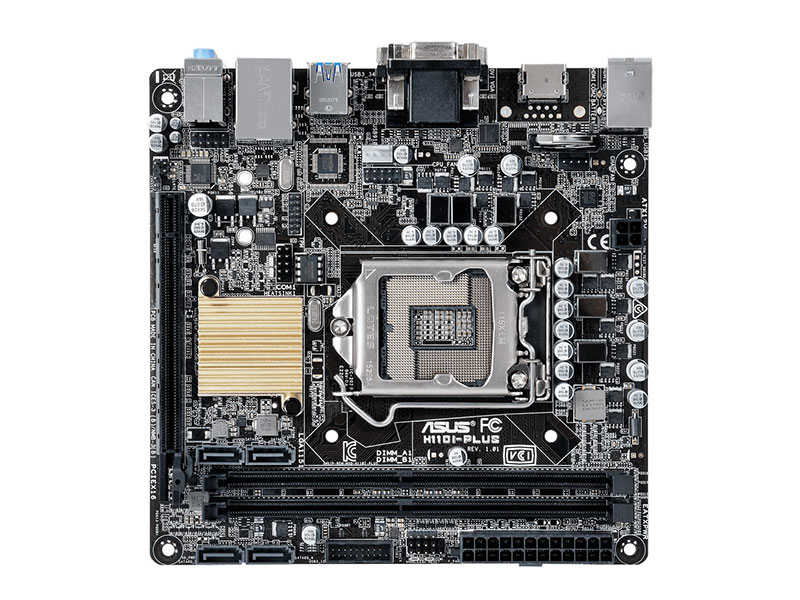

Marca: ASUS
Modelo: H110I-PLUS/CSM
Socket: Intel® Socket 1151
Chipset: Intel® H110
Soporte de Procesadores:
- Intel® 7ma y 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- Intel® Turbo Boost Technology 2.0

Memoria:
2 x DDR4 DIMM, Max. 32GB
Soporte para módulos de memoria DDR4 2133 MHz
Non-ECC, Un-buffered Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- VGA con una resolución máxima de 1920 x 1200 @60 Hz
- HDMI con una resolución máxima de 4096 x 2160 @24 Hz / 2560 x 1600 @60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @60 Hz
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 2 pantallas simultáneas

Puertos de expansión:
1 x PCIe 3.0/2.0 x16

Almacenamiento:
4 x SATA 6Gb/s port(s)

LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio:
Realtek® ALC887 7.1-Channel High Definition Audio CODEC
Soporta Jack-detection, Front Panel Jack-retasking

USB:
Chipset:
4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)

Características Especiales:

ASUS 5X Protection III:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-DIMM
100% All High-quality Conductive Polymer Capacitors
Media Streamer

Soporte Sistema Operativo:
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

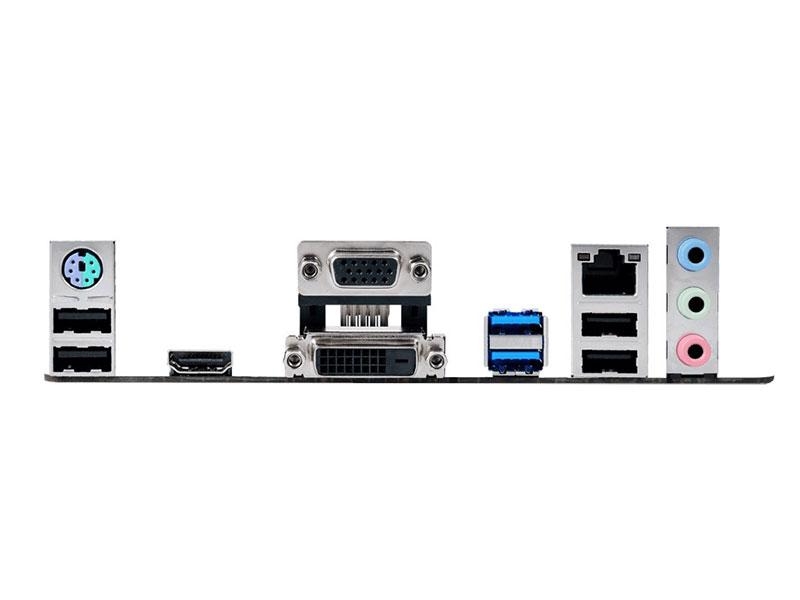

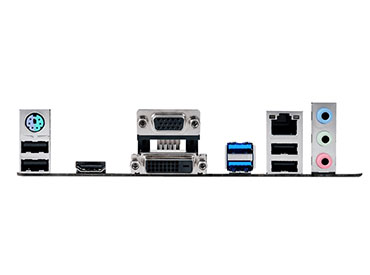

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
4 x USB 2.0
3 x Audio jack(s)

Tamaño:
Mini ITX Form Factor
17 cm x 17 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

Garantía: 36 Meses
