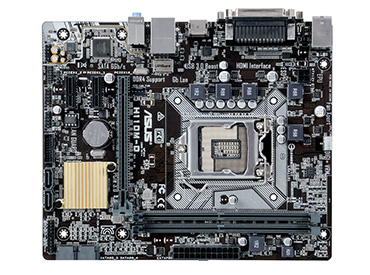

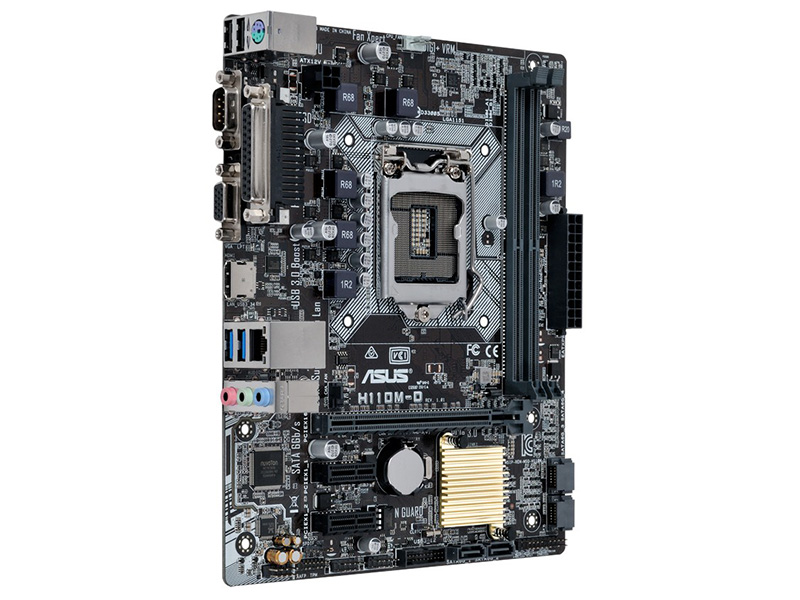

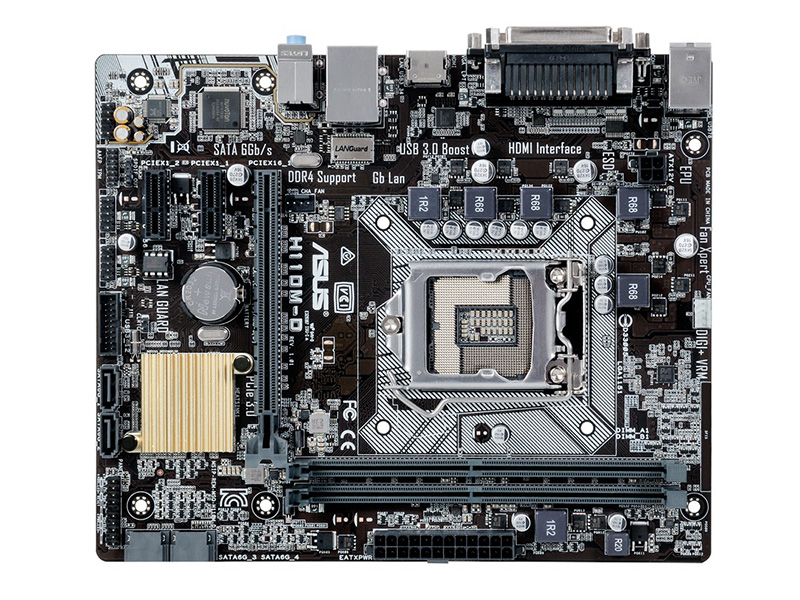

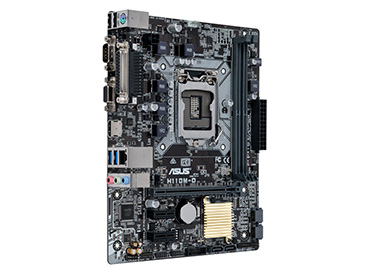

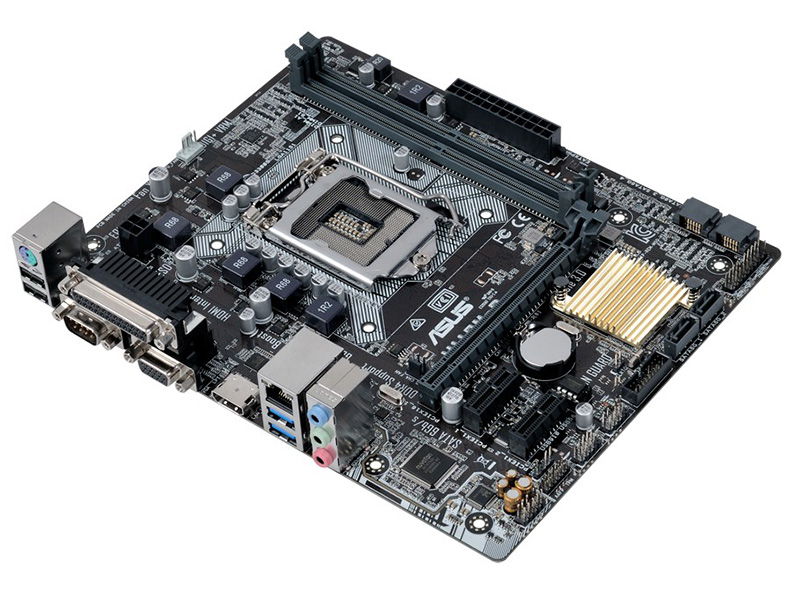

Mother ASUS H110M-D Socket 1151
Este producto no está disponible.
Encontrá productos similares clickeando acá.
Marca: ASUS
Modelo: H110M-D
Socket: Intel® Socket 1151
Chipset: Intel® H110 Express
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0
Memoria:
2 x DDR4 DIMM, Max. 32GB
Soporte para módulos de memoria DDR4 2133 MHz Non-ECC, Un-buffered
Soporte para Intel® Extreme Memory Profile (XMP)
Arquitectura de memoria Dual Channel
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1x HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- 1x D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 2 displays simultáneos
Puertos de expansión:
1 x PCIe 3.0/2.0 x1 (x16 mode)
2 x PCIe 2.0 x1
Almacenamiento:
4 x SATA 6Gb/s connectors
Soporta Intel® Rapid Storage Technology
LAN:
Realtek® RTL8111H
Audio:
Realtek® ALC887-VD2
Audio de alta definición
2/4/5.1/7.1-channel
Soporte para Jack-detection, Front Panel Jack-retasking
USB:
Chipset:
4 x USB 3.0/2.0 ports (2 puertos en panel posterior, 2 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (2 puertos en panel posterior, 4 puertos mediante el header USB interno)
Características Especiales:
ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 5 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
- ASUS ESD Guards - Electrostatic discharge protection
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Anti-Surge
- Low EMI Solution
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Soporte Sistema Operativo:
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit

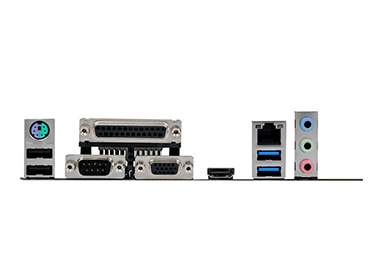

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x D-Sub port
2 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
1 x COM port(s)
1 x Parallel port(s)
1 x LAN (RJ45) port(s)
3 x Audio jack(s)
Tamaño:
Micro ATX Form Factor
22.6 cm x 18.5 cm
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

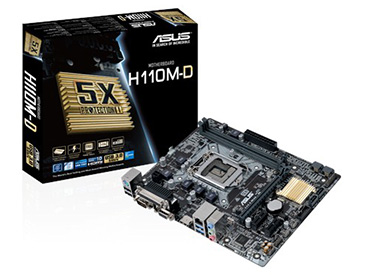

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk
Garantía: 36 Meses
