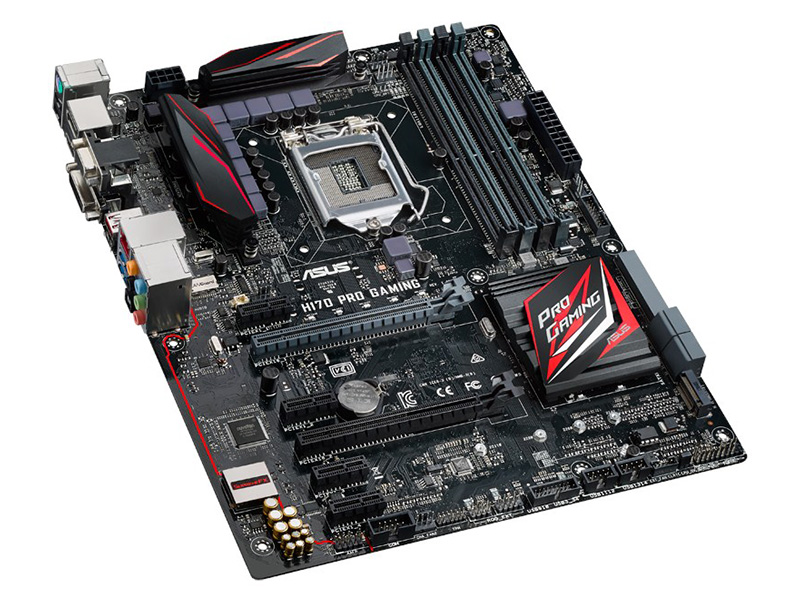

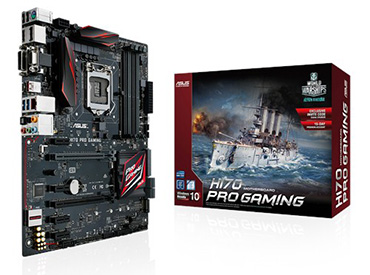

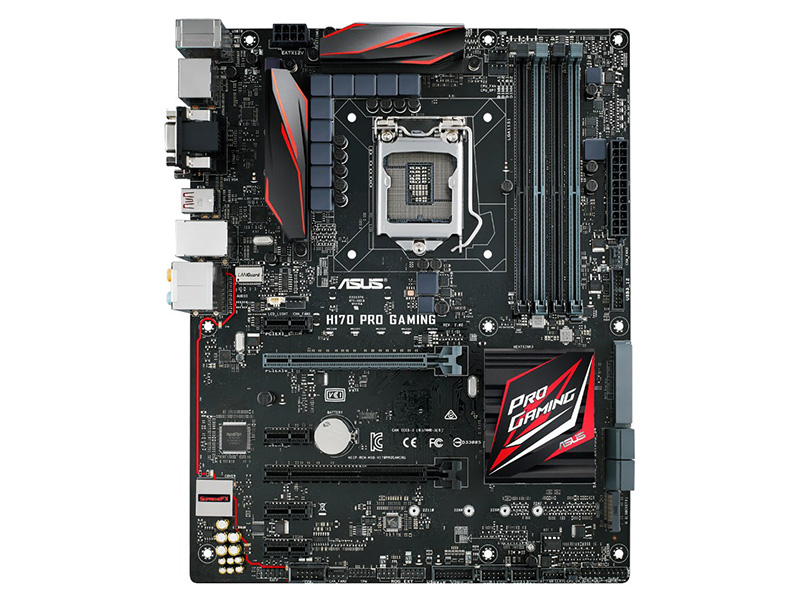

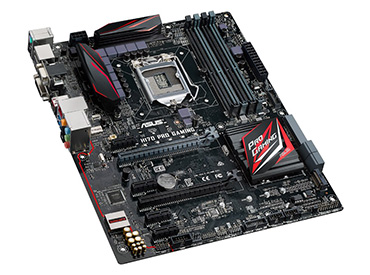

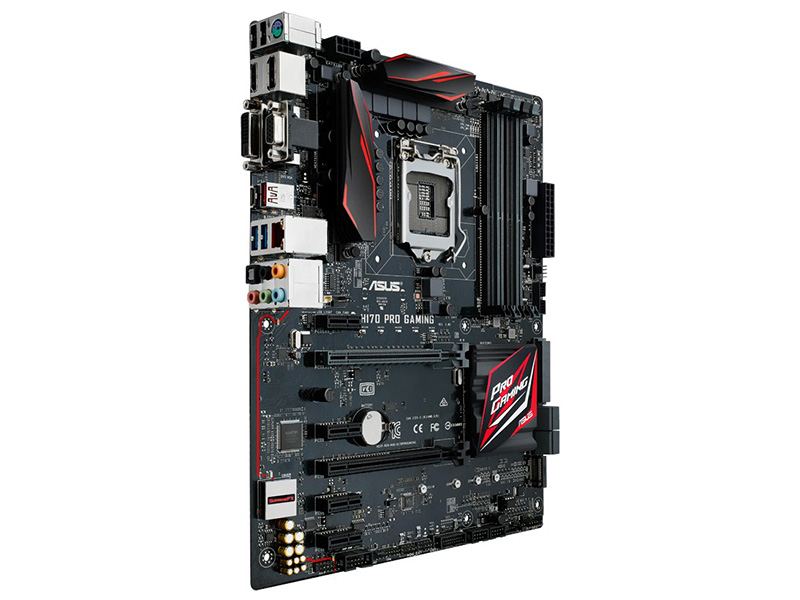

Mother ASUS H170 PRO GAMING Socket 1151
Este producto no está disponible.
Encontrá productos similares clickeando acá.
Marca: ASUS
Modelo: H170 PRO GAMING
Socket: Intel® Socket 1151
Chipset: Intel® H170
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0
Memoria:
4 x DIMM, Max. 64GB
DDR4 2133 MHz
Memorias Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- RGB con una resolución máxima de 1920 x 1200 @ 60 Hz
- DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
Máxima memoria compartida: 512 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 3 monitores simultaneos
Puertos de expansión:
1 x PCIe 3.0/2.0 x16
1 x PCIe 3.0/2.0 x16 (x4 mode, black)
4 x PCIe 3.0/2.0 x1
Almacenamiento:
Intel® H170 chipset:
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s)
Soporta Raid 0, 1, 5, 10
Soporta Intel® Smart Response Technology
LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard
Audio:
SupremeFX 8-Channel High Definition Audio CODEC
- Soporta: Jack-detection, MIC Jack-retasking en el panel frontal
- High quality 115 dB SNR stereo playback output
Características de audio:
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II
USB:
ASMedia® USB 3.1 controller:
1 x USB 3.1 port(s) (1 en panel posterior, Type-A)
1 x USB 3.1 port(s) (1 en panel posterior, Type-C, Reversible)
Intel® H170 chipset:
6 x puerto(s) USB 3.0/2.0 (2 en panel posterior, azul, 4 en placa)
8 x puerto(s) USB 2.0/1.1 (2 en panel posterior, azul, 6 en placa)
Características Especiales:
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS Exclusive Features:
- GPU Boost
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache
Soporte Sistema Operativo:
Windows 7 , 32bit/64bit Windows® 10 64bit Windows® 8.1 64bit

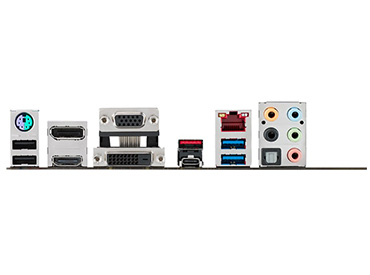

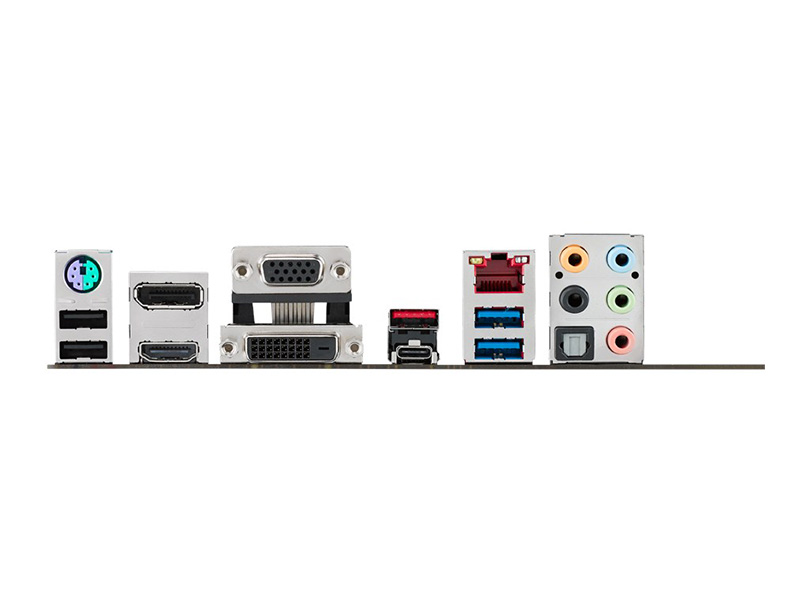

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (black)Type-C
1 x USB 3.1 (red)Type-A
2 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, BIOS multilingüe, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 Mis favoritos, Notas rápidas, Últimos registros, F12 PrintScreen e información de memoria ASUS DRAM SPD (Serial Presence Detect)
Incluye:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x 12 in 1 Cable Label (s)
Garantía: 36 Meses
