Marca: ASUS
Modelo: H170I-PRO/CSM
Socket: Intel® Socket 1151
Chipset: Intel® H170
Soporte de Procesadores:
- Intel® 7ma y 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- Intel® Turbo Boost Technology 2.0

Memoria:
2 x DDR4 DIMM, Max. 32GB
Soporte para módulos de memoria DDR4 2133 MHz
Non-ECC, Un-buffered Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- VGA con una resolución máxima de 1920 x 1200 @60 Hz
- HDMI con una resolución máxima de 4096 x 2160 @24 Hz / 2560 x 1600 @60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @60 Hz
- DisplayPort con una resolución máxima de 4096 x 2304 @60 Hz
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 3 pantallas simultáneas

Puertos de expansión:
1 x PCIe 3.0/2.0 x16

Almacenamiento:
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s)

Wireless Data Network:
Wi-Fi 802.11 a/b/g/n/ac
Soporta dual band frequency 2.4/5 GHz
Soporta ASUS Wi-Fi Go! Utility

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s)
Realtek®, 1 x Gigabit LAN

Bluetooth:
Bluetooth V4.0

Audio:
Realtek® ALC887 codec
Audio de alta definiciónl
Soporta Jack-detection, Front Panel Jack-retasking

USB:
Chipset:
8 x USB 3.0/2.0 port(s) (6 at back panel, blue, 2 at mid-board)
4 x USB 2.0/1.1 port(s) (4 at mid-board)

Características Especiales:

ASUS 5X Protection III:
- ASUS ESD Guards - Electrostatic discharge protection
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 7 Phase digital power design
ASUS EPU:
- EPU
ASUS Wi-Fi GO!
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-DIMM
Media Streamer

Soporte Sistema Operativo:
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

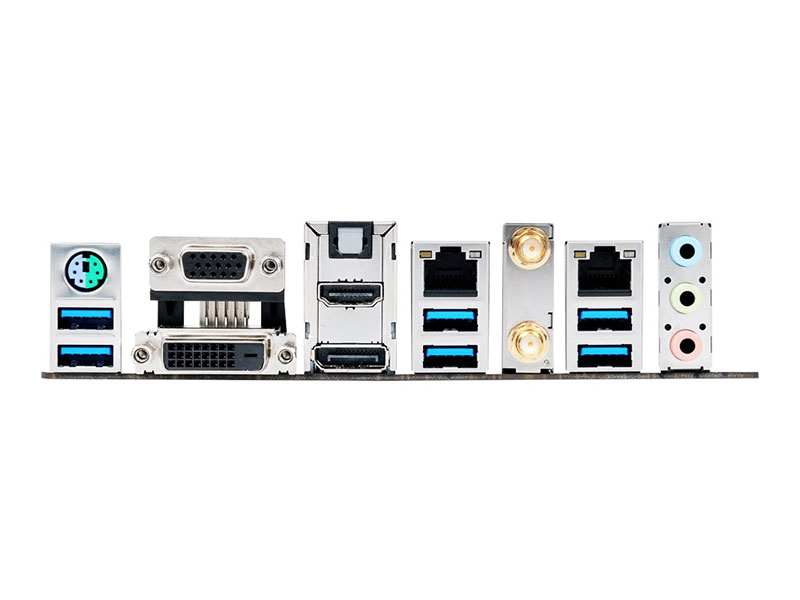

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x DVI-D
1 x D-Sub
1 x HDMI
2 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
1 x Optical S/PDIF out
3 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0

Tamaño:
Mini ITX Form Factor
17 cm x 17 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

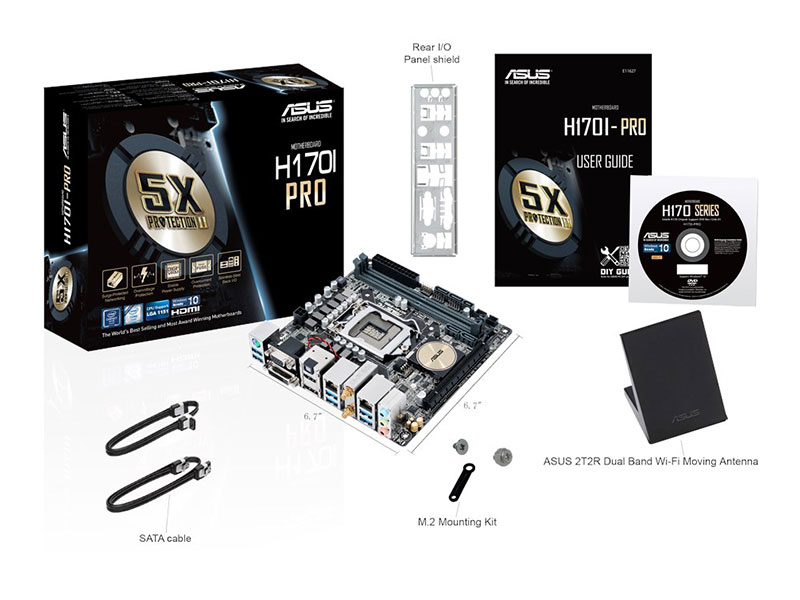

Incluye:
User's manual
M.2 2242 mounting kit
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)

Garantía: 36 Meses
