Marca: ASUS
Modelo: H170M-E D3
Socket: Intel® Socket 1151
Chipset: Intel® H170
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0

Memoria:
4 x DIMM, Max. 64GB
DDR3 1866(O.C.)/1600/1333 MHz
Memorias Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- RGB con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 3 monitores simultaneos

Puertos de expansión:
1 x PCIe 3.0/2.0 x1 (x16 mode, gray)
1 x PCIe 3.0/2.0 x1 (max at x4 mode, black)
1 x PCIe 3.0/2.0 x1
1 x PCI

Almacenamiento:
Intel® H170 chipset:
4 x SATA 6Gb/s port(s), gray
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
Soporta Raid 0, 1, 5, 10
Soporta Intel® Smart Response Technology

LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Soporta: Jack-detection, MIC Jack-retasking en el panel frontal
Características de audio:
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB:
Intel® H170 chipset:
8 x puerto(s) USB 3.0/2.0 (4 en panel posterior, azul, 4 en placa)
6 x puerto(s) USB 2.0/1.1 (2 en panel posterior, negro, 4 en placa)

Características Especiales:

ASUS 5X Protection:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- ESD Guards
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer

Soporte Sistema Operativo:
Windows 7 , 32bit/64bit Windows® 10 64bit Windows® 8.1 64bit

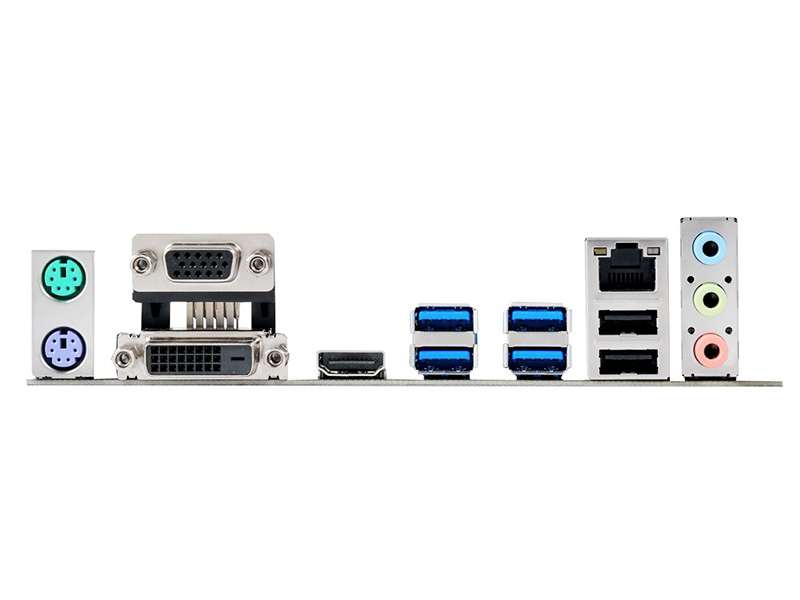

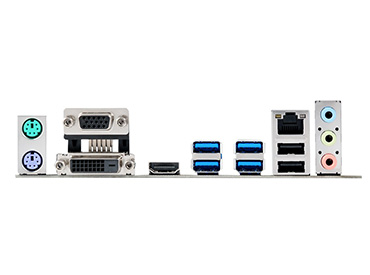

Conectores:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

Tamaño:
mATX Form Factor
24.4 cm x 22.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, BIOS multilingüe, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 Mis favoritos, Notas rápidas, Últimos registros, F12 PrintScreen e información de memoria ASUS DRAM SPD (Serial Presence Detect)

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

Garantía: 36 Meses
