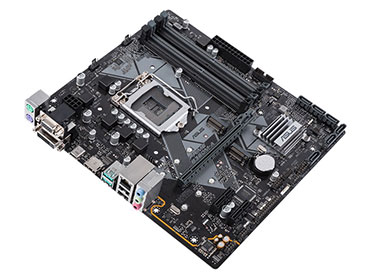

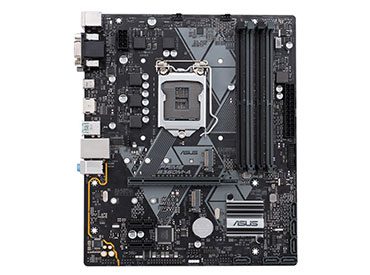

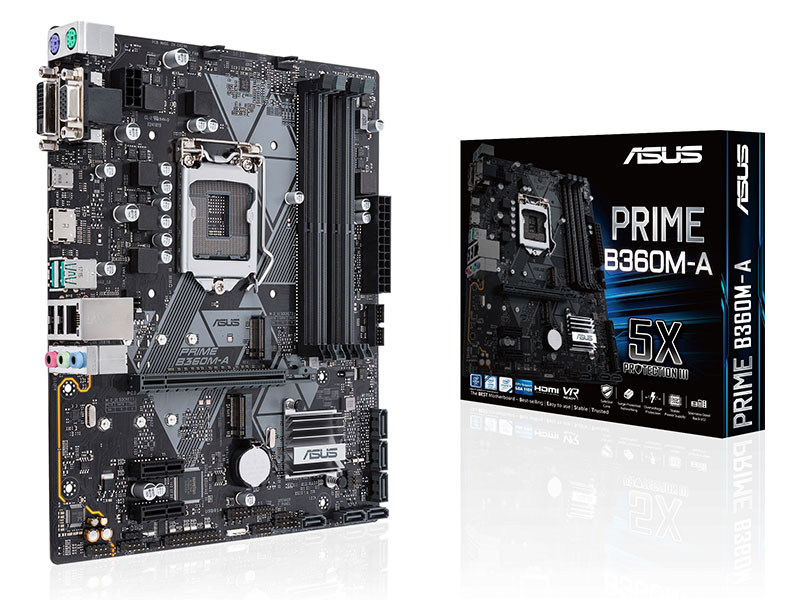

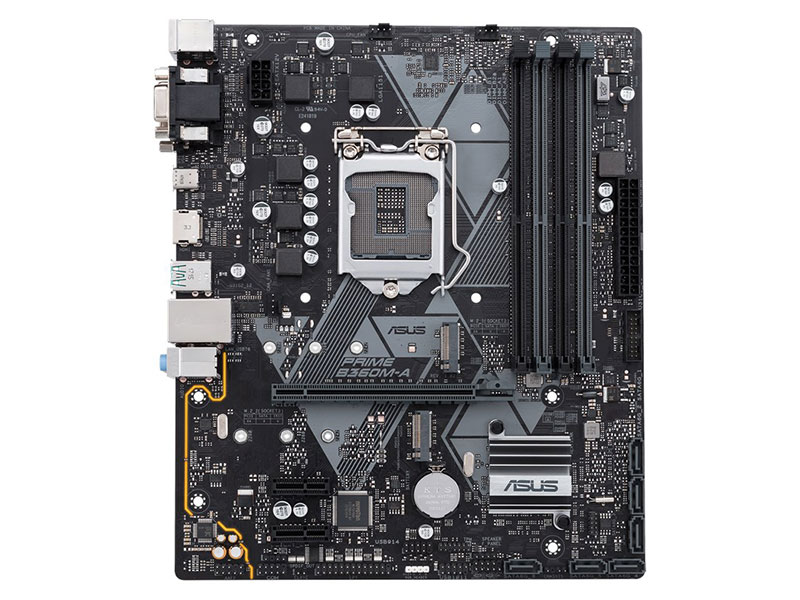

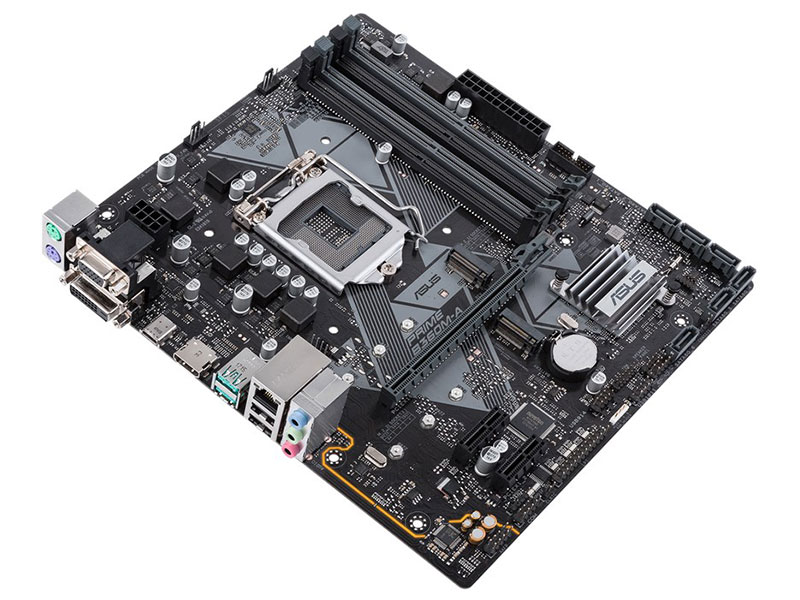

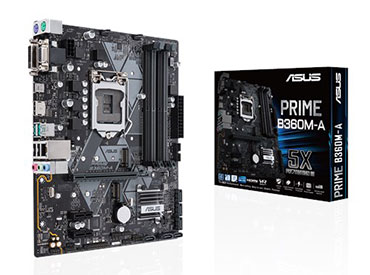

Marca: ASUS
Modelo: PRIME B360M-A
Socket: Intel® Socket 1151
Chipset: Intel® B360 Express
Soporte de Procesadores:
- Intel® 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
- 5X Protection III: Multiple hardware safeguards for all-round protection.
- ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware.
- Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 Intel Optane memory ready and native M.2 support for Lightning-fast storage speeds.

Memoria:
4 x DDR4 DIMM, Max. 64GB Non-ECC, Un-buffered
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI 1.4b con una resolución máxima de 4096 x 2160 @ 24 Hz/2560 x 1600 @ 60 Hz
- DVI con una resolución máxima de 1920 x 1200 @ 60 Hz
- D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1 GB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Puertos de expansión:
1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0/2.0 x1

Almacenamiento:
Intel® B360 Chipset:
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray

LAN:
Realtek® RTL8111H, 1 x Gigabit LAN
ASUS LAN Guard

Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB:
Chipset:
2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
3 x USB 3.1 Gen 1 up to 5Gbps port(s) (1 at back panel, USB Type-CTM, 2 at mid-board)
6 x USB 2.0/1.1 ports (2 puertos en panel posterior, 4 puertos mediante el header USB interno)

Características Especiales:

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS OptiMem :
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit

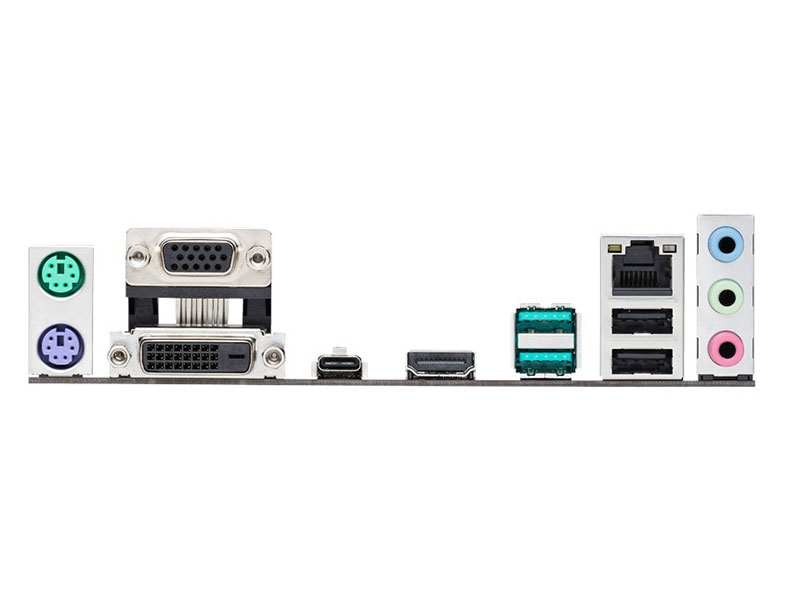

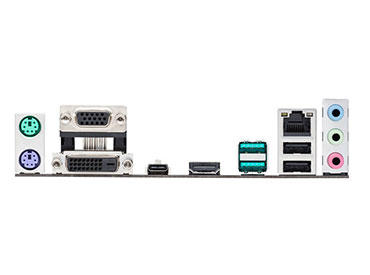

Conectores:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps
1 x USB 3.1 Gen 1 USB Type-CTM, up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O

Tamaño:
Micro ATX Form Factor
24.4 cm x 20.6 cm

BIOS:
128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
Motherboard driver disk

Garantía: 36 Meses
