Marca: ASUS
Modelo: PRIME H370M-PLUS/CSM
Socket: Intel® Socket 1151
Chipset: Intel® H370 Express
Soporte de Procesadores:
- Intel® 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

- Designed exclusively for 8th generation Intel® Core™ processors to maximize your connectivity and speed with integrated dual M.2 slots with Intel® Optane™ Memory compatibility and USB 3.1 Gen2
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- FanXpert 4 Core delivers advanced fan control for dynamic cooling
- ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
- ASUS Corporate Stable Model complimentary advance replacement and long lifecycle

Memoria:
4 x DDR4 DIMM, Max. 64GB Non-ECC, Un-buffered
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI 1.4b con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1 GB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Soporte Multi-GPU:
Soporta AMD CrossFireX™ Technology

Puertos de expansión:
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1

Almacenamiento:
Intel® H370 Chipset:
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Soporta Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB:
Chipset:
2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
5 x USB 3.1 Gen 1 up to 5Gbps port(s) (3 at back panel, , Type-A + USB Type-CTM, 2 at mid-board)
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Características Especiales:

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit

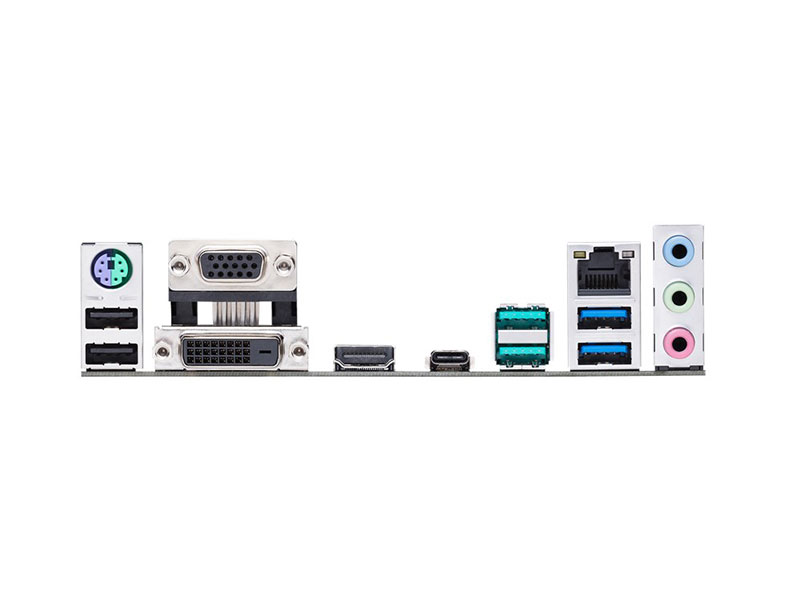

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x D-Sub
1 x DVI-D
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps
3 x USB 3.1 Gen 1 (blue) Type-A + USB Type-CTM
2 x USB 2.0
3 x Audio jack(s)

Tamaño:
Micro ATX Form Factor
24.4 cm x 24.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD

Garantía: 36 Meses
