Marca: ASUS
Modelo: PRIME X370-A
Socket: AM4 (AMD Ryzen™)
Chipset: AMD X370
Soporte de Procesadores:
- AMD Ryzen™ processor
- AMD 7th Generation A-series/ Athlon™ processor

Memoria:
Procesadores AMD Ryzen™:
4 x DIMM, Max. 64GB, DDR4 3200(O.C.) / 2933(O.C.) / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Procesadores AMD 7th Generation A-series/Athlon™:
4 x DIMM, Max. 64GB, DDR4 2400 / 2133 MHz Non-ECC, Un-buffered Memory
Arquitectura de memoria Dual Channel

Gráficos:
Integrated AMD Radeon™ R Series Graphics in the 7th Generation A-Series APU*1:
- 1 x HDMI 1.4b supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- 1 x DVI-D supporting a maximum resolution of 1920 x 1200 @ 60 Hz
- 1 x RGB supporting a maximum resolution of 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 2 GB
*1.AMD Ryzen™ Processor does not support

Soporte Multi-GPU:
Soporta AMD CrossFireX™ Technology

Puertos de expansión:
Procesadores AMD Ryzen™:
1 x PCIe 3.0/2.0 x16 (x16 mode)
Procesadores AMD 7th Generation A-series/Athlon™:
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X370 chipset:
1 x PCIe 2.0 x16 (max at x4 mode)
2 x PCIe 2.0 x1
2 x PCI

Almacenamiento:
AMD X370 chipset:
6 x SATA 6Gb/s port(s)
Soporte para Raid 0, 1, 10
Procesadores AMD Ryzen™:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Procesadores AMD 7th Generation A-series/Athlon™:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 2 mode)

LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Audio:
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB:
Procesadores AMD Ryzen™/7th Generation A-series/Athlon™:
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X370 chipset:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue)
AMD X370 chipset:
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD X370 chipset:
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Características Especiales:

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Soporte Sistema Operativo:
Windows® 10 64-bit

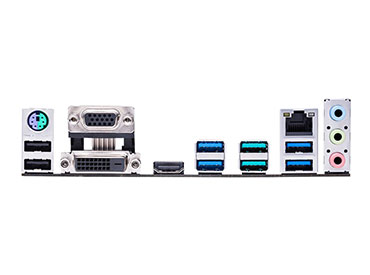

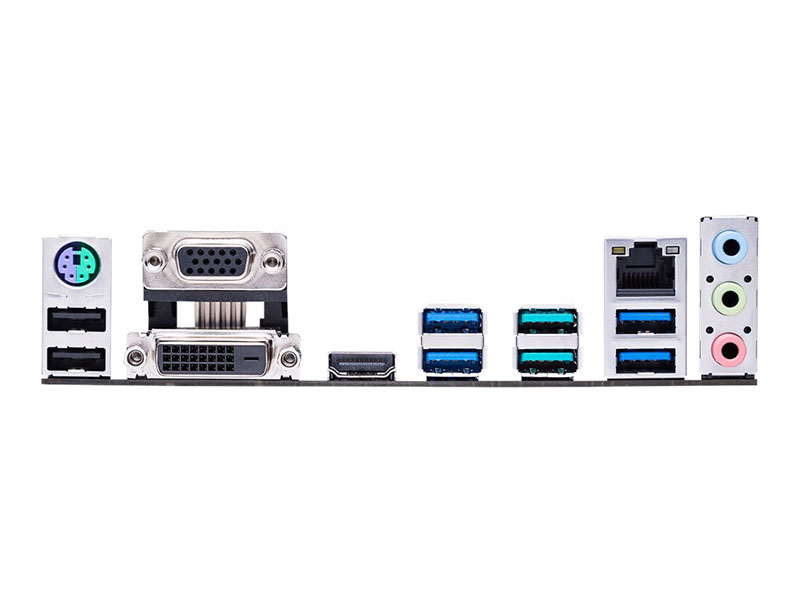

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1
4 x USB 3.1 Gen 1
2 x USB 2.0
3 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 23.7 cm

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

Garantía: 36 Meses
