Marca: ASUS
Modelo: PRIME X470-PRO
Socket: AM4
Chipset: AMD X470
Soporte de Procesadores:
- AMD Ryzen™ 2da Generación
- Ryzen™ con Gráficos Radeon™ Vega
- Ryzen™ 1ra Generación
- A-Series 7ma Generación
- Athlon X4

Memoria:
Procesadores AMD Ryzen™ 2da Generación:
4 x DIMM, Max. 64GB, Un-buffered Memory
DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
Procesadores AMD Ryzen™ con Gráficos Radeon™ Vega / Ryzen™ 1ra Generación:
4 x DIMM, Max. 64GB, Un-buffered Memory
DDR4 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
Procesadores AMD A-Series 7ma Generación / Athlon™ X4:
4 x DIMM, Max. 64GB, DDR4 2400 / 2133 MHz Un-buffered Memory
Arquitectura de Memoria Dual Channel

Gráficos:
Gráficos Integrados en AMD Ryzen™ con Radeon™ Vega / APU A-Series 7ma Generación:
- 1 x HDMI 1.4b supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- 1 x DisplayPort 1.2 supporting a maximum resolution of 4096 x 2160 @ 60 Hz
Máxima memoria compartida: 2 GB

Soporte Multi-GPU:
Procesadores AMD Ryzen™ 1ra y 2da Generación:
Soporta NVIDIA® 2-Way SLI™ Technology
Soporta AMD CrossFireX™ Technology
Procesadores AMD Ryzen™ con Gráficos Radeon™ Vega / AMD A-Series 7ma Generación / Athlon™ X4:
Soporta AMD CrossFireX™ Technology

Puertos de expansión:
Procesadores AMD Ryzen™ 1ra y 2da Generación:
2 x PCIe 3.0 x16 (x16 or dual x8)
Procesadores AMD Ryzen™ con Gráficos Radeon™ Vega / AMD A-Series 7ma Generación / Athlon™ X4:
1 x PCIe 3.0 x16 (x8 mode)
AMD X470 chipset:
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1

Almacenamiento:
Procesadores AMD Ryzen™ 1ra y 2da Generación / AMD Ryzen™ con Gráficos Radeon™ Vega:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Procesadores AMD A-Series 7ma Generación / Athlon™ X4:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
AMD X470 chipset:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
6 x SATA 6Gb/s port(s)
Soporta Raid 0, 1, 10

LAN:
Intel® I211-AT

Audio:
Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- EMI protection cover to prevent electrical noise to affect the amplifier quality

USB:
Procesadores AMD Ryzen™ 1ra y 2da Generación / AMD Ryzen™ con Gráficos Radeon™ Vega / AMD A-Series 7ma Generación / Athlon™ X4:
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, Type-A)
AMD X470 chipset:
1 x USB 3.1 Gen 2 front panel connector port(s)
AMD X470 chipset:
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A + USB Type-CTM, 2 at mid-board)
AMD X470 chipset:
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia® USB 3.1 Gen 2 controller:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

Características Especiales:

5-Way Optimization by Dual Intelligent Processors 5 :
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Fan Xpert4 :
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 10 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS TPU :
- Auto Tuning
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Turbo App
- featuring system performance tuning for selected applications

Soporte Sistema Operativo:
Windows® 10 64-bit

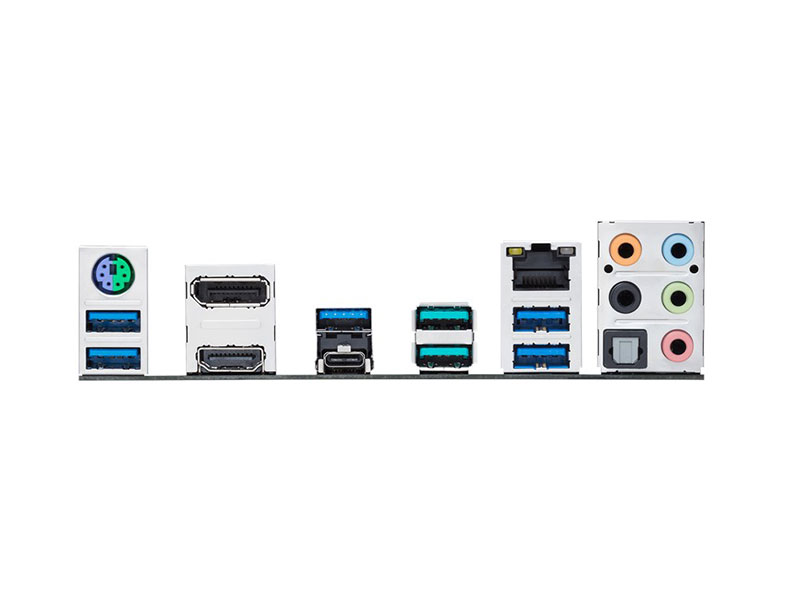

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A
1 x USB 3.1 Gen 1 USB Type-C™
5 x USB 3.1 Gen 1
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect)memory information

Incluye:
User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (1 in 1)

Garantía: 36 Meses
