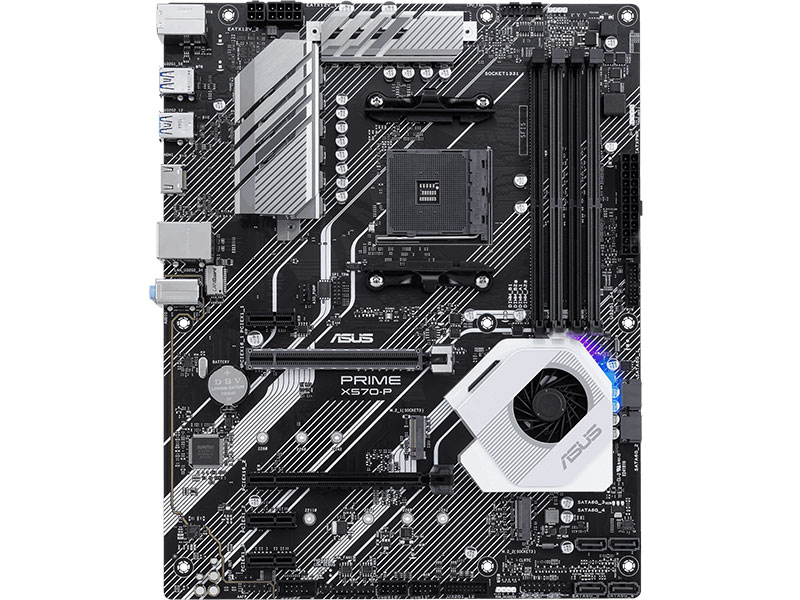

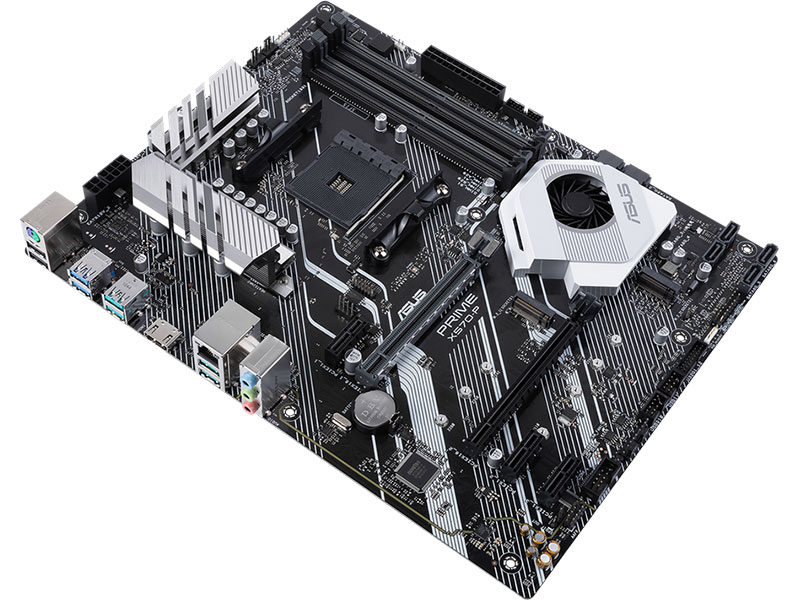

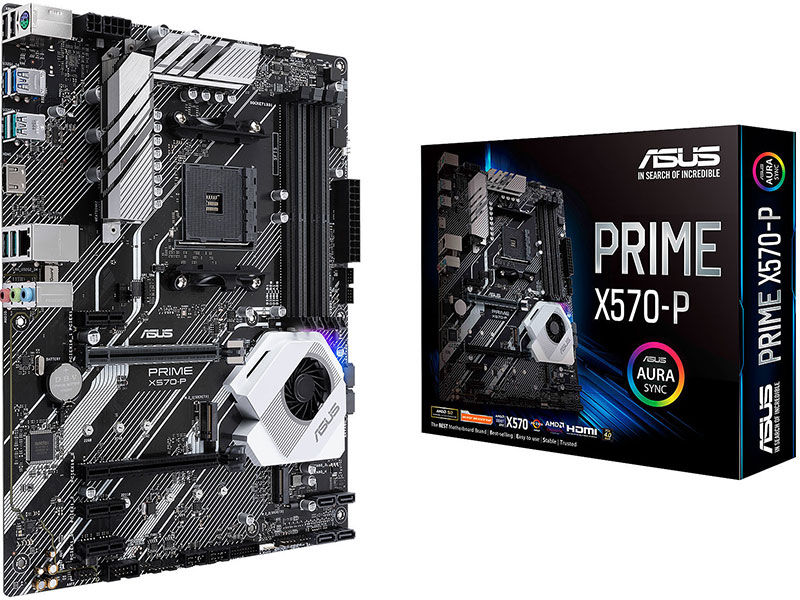

Marca: ASUS
Modelo: PRIME X570-P
Socket: AM4
Chipset: AMD X570
Soporte de Procesadores:
- AMD Ryzen™ 5000 Series
- AMD Ryzen™ 4000 G-Series
- AMD Ryzen™ 3000 Series
- AMD Ryzen™ 3000 G-Series
- AMD Ryzen™ 2000 Series
- AMD Ryzen™ 2000 G-Series

Memoria:
- 4 x DIMM, Max. 128GB, DDR4
Soporte para módulos de memoria DDR4 5100(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Arquitectura de memoria Dual Channel
- ECC Memory (ECC mode) support varies by CPU
* The maximum memory capacity supported vary depending on the CPU you installed.

Gráficos:
Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors
1 x HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz

Multi-GPU Support:
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Supports AMD 2-Way CrossFireX™ Technology

Puertos de expansión:
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
1 x PCIe 4.0 x16 (x16 mode)
- AMD RyzenTM 4000 G-Series / 2000 Series Processors:
1 x PCIe 3.0 x16 (x16 mode)
- AMD RyzenTM 3000 G-Series / 2000 G-Series Processors:
1 x PCIe 3.0 x16 (x8 mode)
- AMD X570 chipset:
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1

Almacenamiento:
- AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
- AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
- AMD X570 chipset:
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

USB:
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors:
2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
AMD X570 chipset:
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
AMD X570 chipset:
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
AMD X570 chipset:
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors.

LAN:
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard

Audio:
Realtek S1200A 8-Channel High Definition Audio CODEC
- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
- Front panel audio connector (AAFP)
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors

Características Especiales:

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM - Digital power design with Dr. MOS
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlot - Protect your graphics card Investment
ASUS OptiMem：
- Improved DDR4 Stability
ASUS EPU :
- EPU
AURA :
- Aura RGB Strip Headers
- Aura Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Armoury Crate
ASUS Quiet Thermal Solution :
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

Soporte Sistema Operativo:
Windows® 10 64-bit

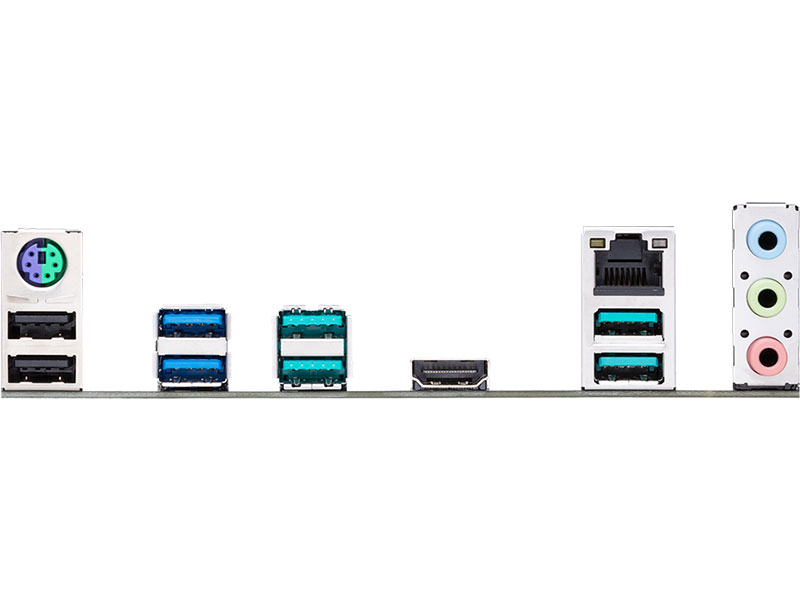

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
3 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm

BIOS:
256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Extension cable for Addressable LED

Garantía: 36 Meses
