Marca: ASUS
Modelo: PRIME Z370-A
Socket: Intel® Socket 1151
Chipset: Intel® Z370 Express
Soporte de Procesadores:
- Intel® de 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

Características Principales:
- Socket LGA1151 para la 8a generación de procesadores de escritorio Intel® Core™.
- 5-Way Optimization: Acelera el rendimiento general de tu sistema con un clic y optimiza la refrigeración de la GPU y la CPU de forma inteligente.
- ASUS OptiMem: Circuito de memoria optimizado para preservar la integridad de la señal y potenciar el rango de overclocking.
- Refrigeración líder: Controles exhaustivos para sistemas por aire y líquido accesibles desde Fan Xpert 4 software y ASUS UEFI.
- Conectividad de próxima gen.: Soporte Intel Optane, Thunderbolt 3 y dos M.2.
- Disipador M.2: Enfría la unidad M.2 hasta 20°C para que trabaje en las mejores condiciones posibles.
- ASUS Aura Sync: Iluminación RGB sincronizable con un amplio portafolio de dispositivos PC.

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
Soporte para módulos de memoria Non-ECC, Un-buffered, Register Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI 1.4bport supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- 1 x DVI-D port supporting a maximum resolution of 1920 x 1200 @ 60 Hz
- 1 x DisplayPort supporting a maximum resolution of 4096 x 2304 @ 60 Hz
Máxima memoria compartida: 1 GB
Supports up to 3 displays simultaneously

Audio:
Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- DTS Connect
- DTS Headphone:X
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- Power pre-regulator: Reduces power input noise to ensure consistent performance
Separate layer for left and right track, ensuring both sound deliver equal quality

LAN:
Intel® I219V
ASUS Turbo LAN Utility
ASUS LAN Guard

Puertos de expansión:
- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
- 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
- 4 x PCIe 3.0/2.0 x1

Almacenamiento:
Chipset:
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
6 x SATA 6Gb/s
Soporta Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Tecnología Multi-Gráficos:
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX Technology

USB:
ASMedia® USB 3.1 Gen 2 controller:
1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output)
1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-CTM, Support 3A power output)
Chipset:
6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board)
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Características Especiales:

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 8 Phase digital power design
ASUS TPU :
- Auto Tuning
- GPU Boost
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- Turbo LAN
- Crystal Sound 3
- EZ XMP ASUS Exclusive Features
- PC Cleaner
- File Transfer
- Cloud GO!
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
CPU Installation Tool
- Three-step simplicity and safety
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo APP

Soporte Sistema Operativo:
Windows® 10 64-bit

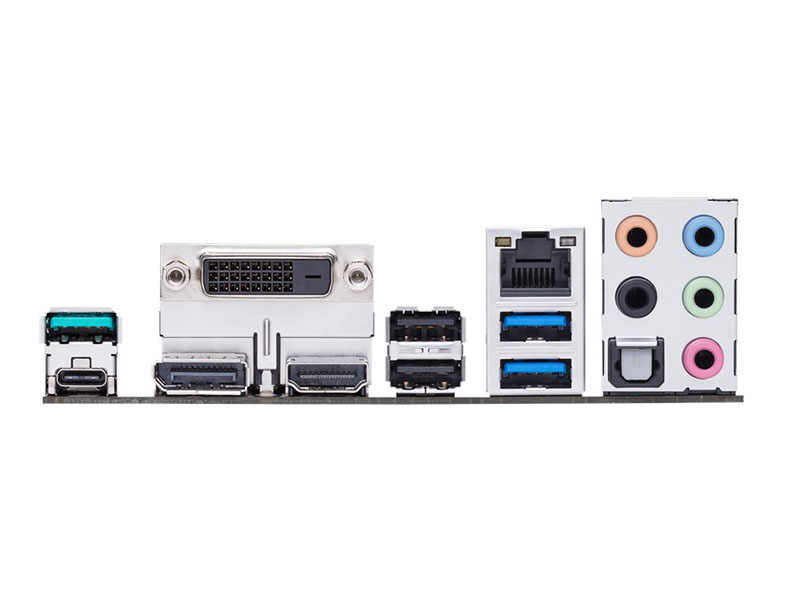

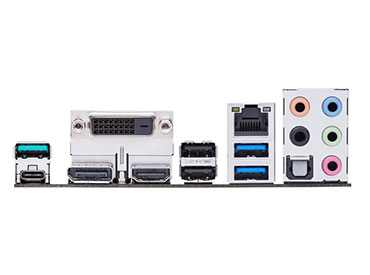

Conectores:
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A + USB Type-C
1 x USB 3.1 Gen 2 Type-A
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Incluye:
User's manual
ASUS Q-Shield
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (1 in 1)

Garantía: 36 Meses
