Marca: ASUS
Modelo: PRIME Z390-A
Socket: Intel® Socket 1151
Chipset: Intel® Z390
Soporte de Procesadores:
- Intel® 8va y 9na Generación: Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron®

Características Principales:
- Overclocking por IA: Optimiza el rendimiento de la CPU de forma instantánea tomando como referencia la CPU y el cooler, ofreciéndote resultados similares a los que consiguen los expertos.
- ASUS OptiMem II: Circuito de memoria optimizado para preservar la integridad de la señal y ampliar el rango de overclocking.
- Diseño de alimentación mejorado: Componentes de alta gama con una eficiencia energética superior.
- UEFI BIOS: Nueva función de búsqueda para encontrar lo que quieras de forma sencilla.
- Opciones de refrigeración líderes: Controles exhaustivos de ventiladores y sistemas todo en uno, desde Fan Xpert o nuestra aclamada UEFI.
- Disipador M.2: Reduce hasta 20 °C las temperaturas del SSD M.2 para que trabaje a pleno rendimiento y sea más fiable.
- Conectividad de próxima generación: Compatible con Intel Optane Memory e Intel® RST, conector Thunderbolt 3 y dos M.2.
- ASUS Aura Sync: Iluminación RGB integrada que puedes sincronizar con el resto de hardware Aura Sync.

Memoria:
4 x DDR4 DIMM, Max. 64GB Non-ECC, Un-buffered
Soporte para módulos de memoria DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
Arquitectura de memoria Dual Channel
Soporta Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096x2160 @ 30 Hz
- DisplayPort con una resolución máxima de 4096x2304 @ 60 Hz
Máxima memoria compartida: 1 GB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Soporte Multi GPU:
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology

Puertos de expansión:
2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *1
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *4
3 x PCIe 3.0/2.0 x1
* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.
** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings
*1 PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a Hyper M.2 X16 series Card.
*4 The PCIe x16_3 slot shares bandwidth with SATA_5 and SATA_6. The PCIe x16_3 is default set at x2 mode.

Almacenamiento:
Intel® Z390 Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*5
6 x SATA 6Gb/s port(s)
Soporte para Raid 0, 1, 5 y 10
Intel® Optane™ Memory Ready
Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
*5 The M.2_1 socket shares bandwidth with SATA_2 port when using M.2 SATA devices. Adjust BIOS settings to use a SATA device.

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
ASUS LAN Guard

Audio:
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance.
- Impedance sense for front and rear headphone outputs.
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers.
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking.
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input.
- Supports up to 32-Bit/192kHz playback. *6
Audio Feature:
- DTS Headphone:X .
- Optical S/PDIF out port(s) at back panel.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference.
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals.
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs.
*6 Only available under Windows® 10.

USB:
Intel® Z390 Chipset:
4 x USB 3.1 Gen 2 port(s)
5 x USB 3.1 Gen 1 port(s) (3 at mid-board)
2 x USB 2.0 port(s) (2 at back panel)
GL852G USB Hub:
4 x USB 2.0 port(s) (4 at mid-board)

Características Especiales:

5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
- Procool Power connector design
TPU
- Auto Tuning, TPU, GPU Boost
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS OptiMem II:
- Optimem (Improved DDR4 stability)
ASUS EPU:
- EPU
ASUS Exclusive Features:
- MemOK! II
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
AURA: RGB Lighting Control
Turbo APP:
- featuring system performance tuning for selected applications
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit

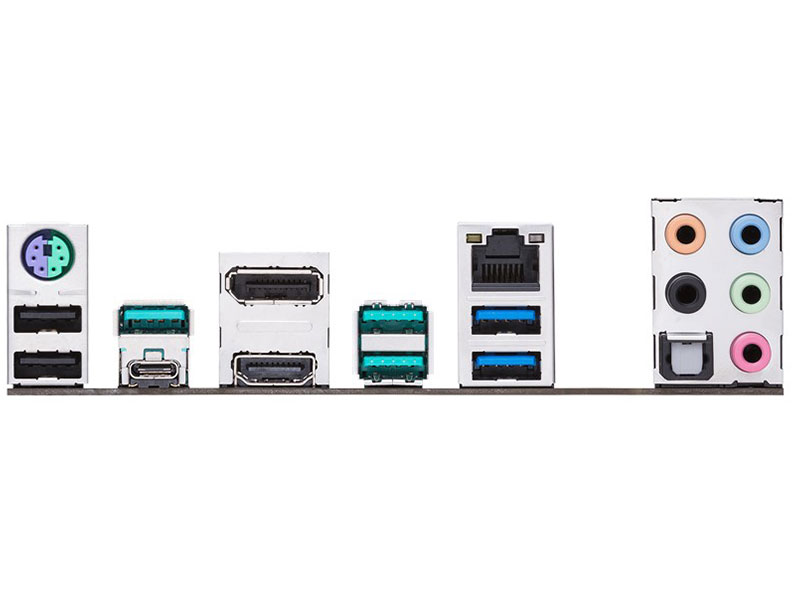

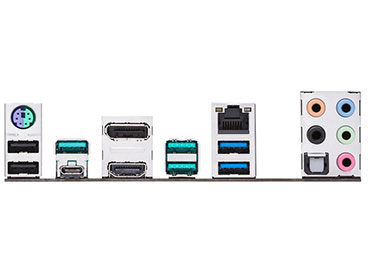

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
3 x USB 3.2 Gen 2 (teal blue)Type-A
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
ASUS Q-Shield
3 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x SCD
1 x CPU Fan Holder

Garantía: 36 Meses
