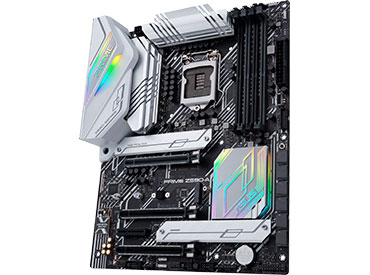

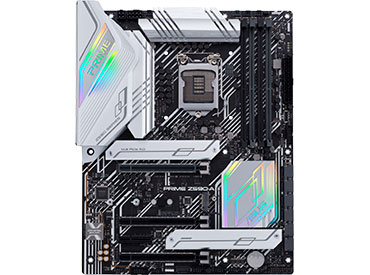

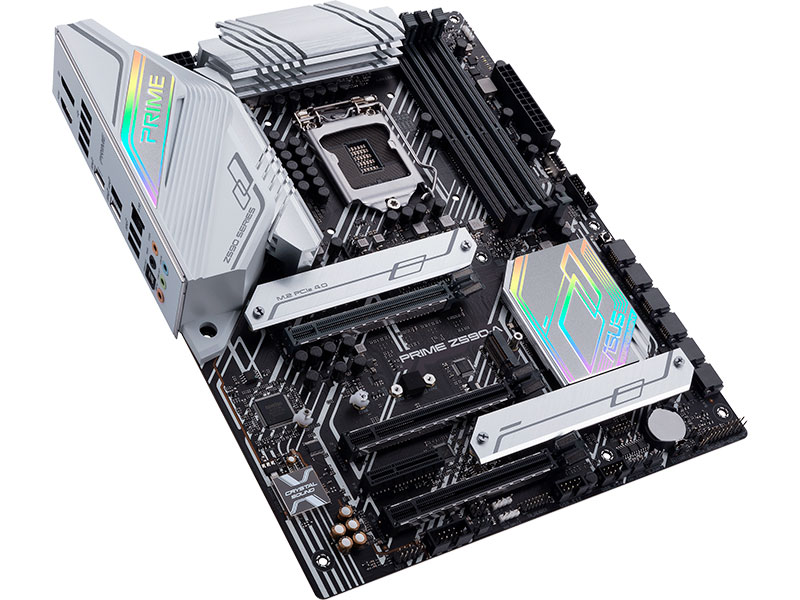

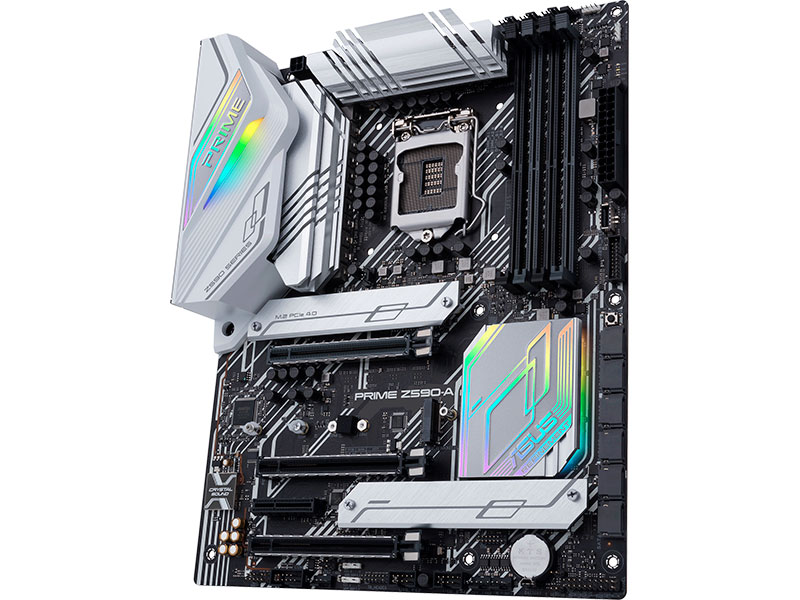

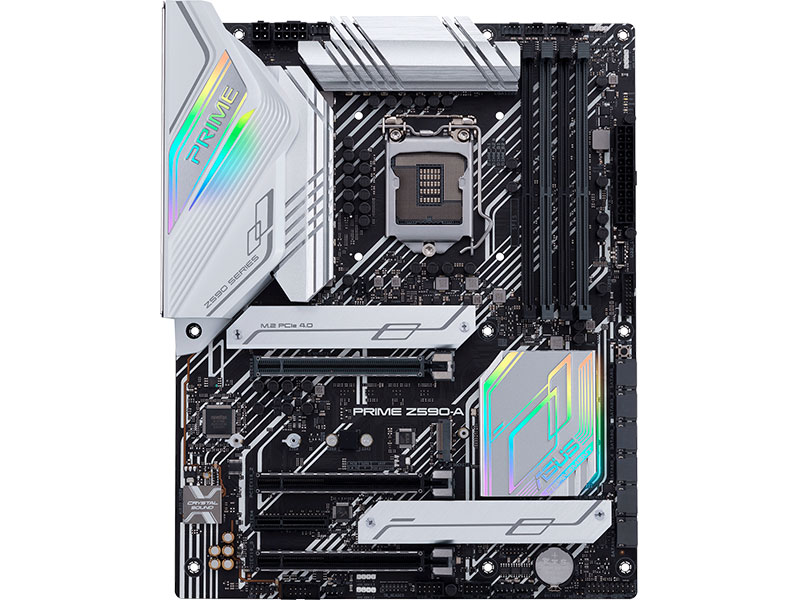

Marca: ASUS
Modelo: PRIME Z590-A
Socket: Intel® Socket 1200
Chipset: Intel® Z590
Soporte de Procesadores:
- Intel® 11ᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5
- Intel® 10ᵐᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron®
Memoria:
- Procesadores Intel® Core™ i9/i7/i5 11ᵃ generación:
Soporte para módulos de memoria DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Procesadores Intel® Core™ i9/i7 10ᵐᵃ generación:
Soporte para módulos de memoria DDR4 2933/2800/2666/2400/2133 MHz
- Procesadores Intel® Core™ i5/i3/Pentium®/Celeron® 10ᵐᵃ generación:
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
- 4 x DDR4 DIMM, Max. 128GB (32 GB single DIMM capacity)
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria Non-ECC, Un-buffered
- OptiMem II
- Soporte para Intel® Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1x DisplayPort 1.4 con una resolución máxima de 5120 x 2880 @60Hz*
- 1x HDMI 2.0 con una resolución máxima de 4K@60Hz*
* Resolución soportada por Procesadores Intel® de 11ᵃ generación
Puertos de expansión:
Intel® 11th &10th Gen Processors
- 3 x PCIe 4.0/3.0 x16 slots*
Intel® 11th Core™ processors support PCIe 4.0 x16
Intel®10th processors support PCIe 3.0 x16
Intel® Z590 Chipset
- 1 x PCIe 3.0 x4 slot
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
Almacenamiento:
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors:
-M.2_1 slot (Key M), type 2242/2260/2280/22110
Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® Z590 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
- M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)
- 6 x SATA 6Gb/s ports
LAN:
- 1 x Intel® I225-V 2.5Gb Ethernet
Audio:
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features: - Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB:
Traseros: Total 9 ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
- 4 x USB 2.0 ports (4 x Type-A)
Frontales: Total 7 ports
- 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Características de Software:
ASUS Exclusive Software:
Armoury Crate:
- Aura Creator
- Aura Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- 5-way Optimization with AI Overclocking
TPU
EPU
Digi+ VRM
Fan Xpert 4
Turbo app
- EZ update
AI Charger
ASUS CPU-Z
ASUS Turbo LAN
DTS:X® Ultra
UEFI BIOS:
AI Overclocking Guide
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- EZ Tuning Wizard
- FlexKey
Características Especiales de ASUS:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS Stainless-Steel Back I/O
ASUS Q-Design:
- M.2 Q-Latch
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
- ASUS Q-Slot
ASUS Thermal Solution:
- Aluminum M.2 Heatsink
- Flexible M.2 heatsink
ASUS EZ DIY:
- Procool
- Pre-mounted I/O shield
- ASUS SafeSlot
AURA Sync
- AURA RGB header
- Addressable Gen 2 RGB header
Soporte Sistema Operativo:
- Windows 10 64-bit

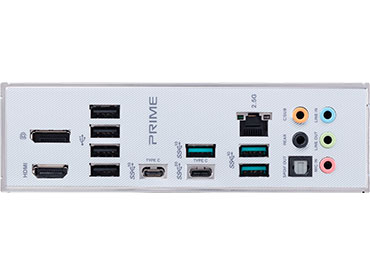

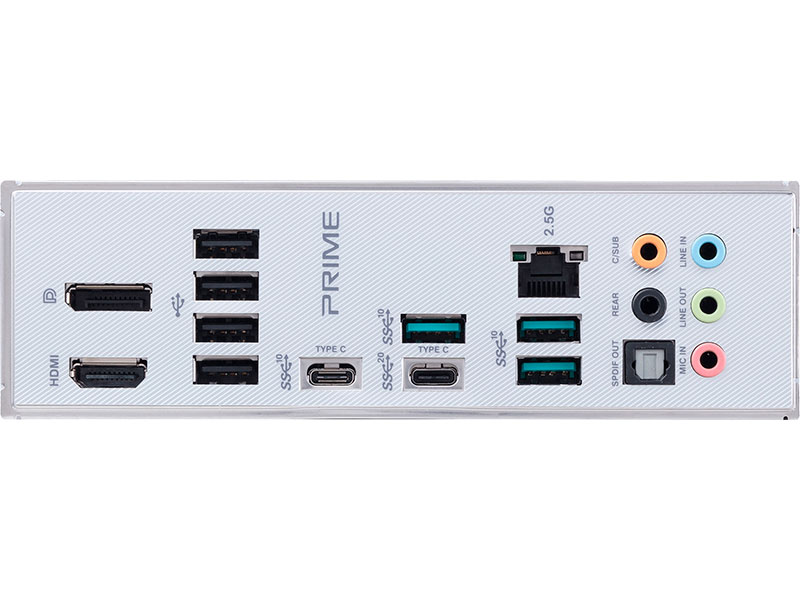

Conectores:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Conectores Internos de E/S:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
1 x 4-pin VRM_HS Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x AURA Addressable Gen 2 headers
1 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x CPU Over Voltage jumper
1 x Power button
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header
Tamaño:
ATX Form Factor
30.5cm x 24.4cm
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Incluye:
3 x SATA 6Gb/s cables
2 x M.2 Rubber Packages
1 x Q-connector
1 x Support DVD
1 x User manual
Garantía: 36 Meses
