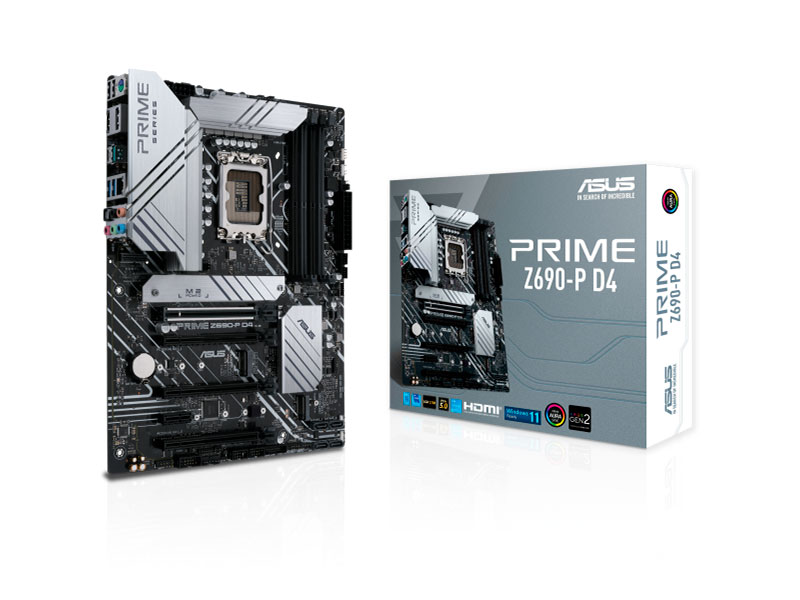

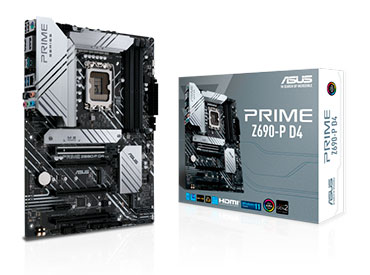

Marca: ASUS
Modelo: PRIME Z690-P D4
Socket: Intel® Socket LGA1700
Chipset: Intel® Z690 Express
Soporte de Procesadores:
- Intel® 12ᵃ generación: Procesadores Intel® Core™, Pentium® Gold y Celeron®

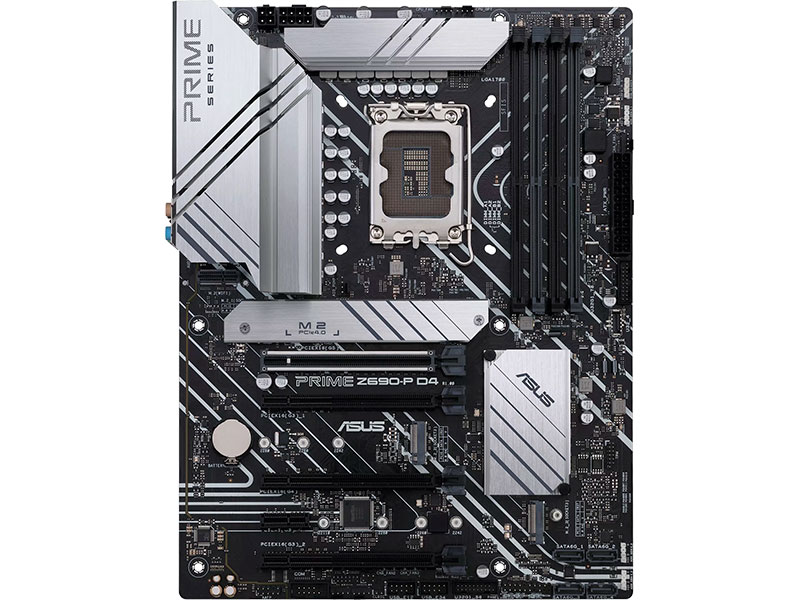

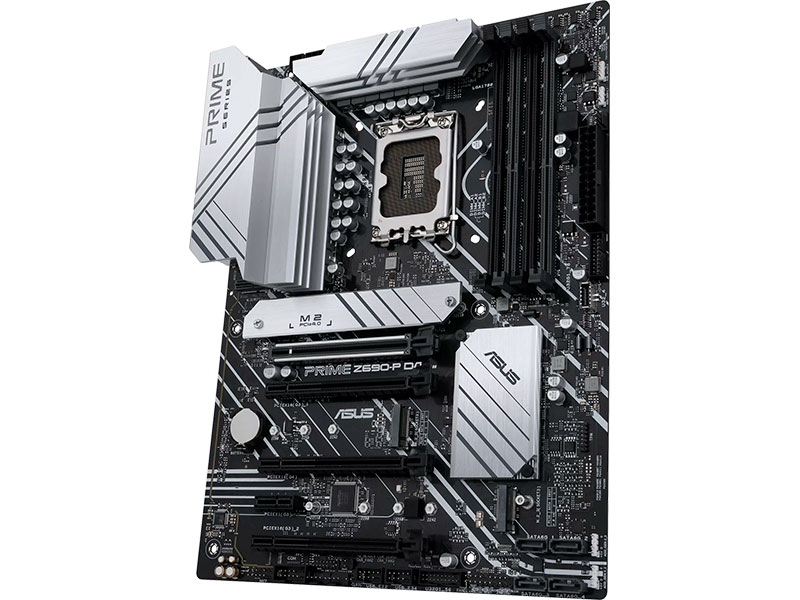

Tarjeta madre Intel® Z690 (LGA 1700) ATX con PCIe® 5.0, tres puertos M.2, 14 + 1 DrMOS, DDR4, HDMI®, DisplayPort™, Ethernet de 2.5 Gb, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 1 Type-C® frontal, compatibilidad con Thunderbolt™ 4 e iluminación Aura Sync RGB

- Socket Intel® LGA 1700: Listo para procesadores Intel® Core™ de 12.ª generación.
- Solución de energía mejorada: 14 + 1 DrMOS, conector ProCool de 8 + 4 pines, bobinas de aleación y capacitores duraderos para una entrega de energía estable.
- Refrigeración completa: Grandes disipadores de calor VRM, disipador de M.2, disipador de PCH, puertos de ventilador híbridos y Fan Xpert 4.
- ASUS OptiMem II: Enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa base para preservar la integridad de la señal para mejorar el overclocking de la memoria.
- Conectividad de próxima generación: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 1 Type-C® de panel frontal, puerto Thunderbolt™ 4.

Memoria:
- Soporte para módulos de memoria Non-ECC, Un-buffered DDR4 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- 4 x DIMM, Max Memory Size: 128GB
- Arquitectura de memoria Dual Channel
- ASUS OptiMem II
- Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1 x HDMI® port *
* Supports 4K@60Hz as specified in HDMI 2.1.
- 1 x DisplayPort 1.4 **
** Supports max. 4K@60Hz as specified in DisplayPort 1.4

Puertos de expansión:
Intel® 12th Gen Processors:
- 1 x PCIe 5.0/4.0/3.0 x16 slot
Intel® Z690 Chipset:
- 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x16 slots (support x4 mode)
- 1 x PCIe 3.0 x1 slot

Almacenamiento:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

LAN:
Realtek RTL8125B 2.5Gb Ethernet
1 x Realtek 2.5Gb Ethernet

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

USB:
Rear USB: Total 6 ports:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB: Total 9 ports:
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Funciones especiales de ASUS:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design:
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution:
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY:
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Características de Software:
ASUS Exclusive Software:
Armoury Crate:
- Aura Sync
- Fan Xpert 4
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS:
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Soporte Sistema Operativo:
- Windows® 11 64-bit
- Windows® 10 64-bit

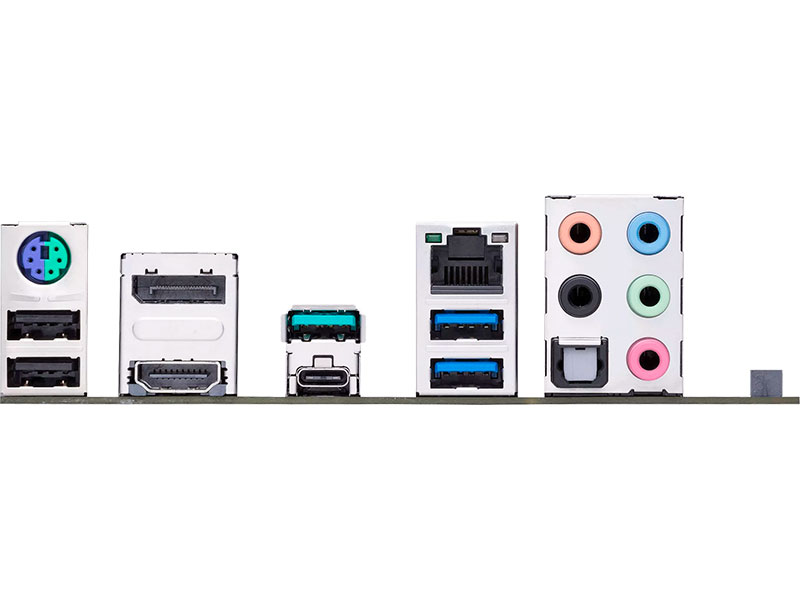

Puertos E/S traseros:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x V-M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port

Puertos internos:
1 x Thunderbolt 4 header
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ header

Tamaño:
ATX Form Factor
30.5cm x 23.4cm

BIOS:
192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Accesorios:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User guide

Garantía: 36 Meses
