Marca: ASUS
Modelo: ROG CROSSHAIR VI HERO
Socket: AM4 (AMD Ryzen™)
Chipset: AMD X370
Soporte de Procesadores:
- AMD Ryzen™ processor
- AMD 7th Generation A-series/ Athlon™ processor
- Soporta CPU de hasta 8 cores

Memoria:
Procesadores AMD Ryzen™:
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Procesadores AMD 7th Generation A-series/Athlon™:
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Arquitectura de memoria Dual Channel

Soporte Multi-GPU:
Soporta NVIDIA® 2-Way SLI™ Technology *
Soporta AMD CrossFireX™ Technology
* Due to CPU limitation, NVIDIA® 2-Way SLI™ Technology is not supported for AMD 7th Gen A-series/Athlon™ Processors.

Puertos de expansión:
Procesadores AMD Ryzen™:
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
Procesadores AMD 7th Generation A-series/Athlon™:
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X370 chipset:
1 x PCIe 2.0 x16 (max at x4 mode) *1
3 x PCIe 2.0 x1
*1 PCIeX4_3 slot shares bandwidth with PCIeX1_1, PCIeX1_2 and PCIeX1_3.

Almacenamiento:
AMD X370 chipset:
8 x SATA 6Gb/s port(s), gray
Soporte para Raid 0, 1, 10
Procesadores AMD Ryzen™:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Procesadores AMD 7th Generation A-series/Athlon™:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

LAN:
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst IV

Audio:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *2
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

USB:
Procesadores AMD Ryzen™/7th Generation A-series/Athlon™:
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD X370 chipset:
1 x USB 3.1 front panel connector port(s)
AMD X370 chipset:
6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
AMD X370 chipset:
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
ASMedia® USB 3.1 controller:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, black+red, Type-A + USB Type-CTM)

Características Exclusivas ROG:

Clear CMOS button
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Slow Mode
Overwolf
ReTry Button
Safe Boot Button
Start Button
Reset Button
LN2 Mode
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- NexFET™ Power Block MOSFET
- 10K Black Metallic Capacitors
Mem TweakIt
KeyBot II
- One-click Overclocking
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
Loadline Calibration
BIOS Flashback

Características Especiales:

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
ASUS TPU :
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian :
- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector

Soporte Sistema Operativo:
Windows® 10 64-bit

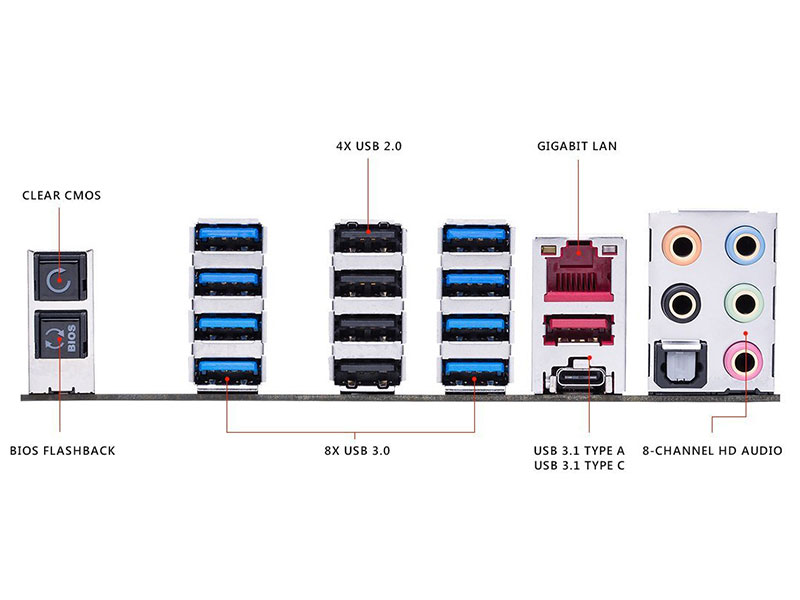

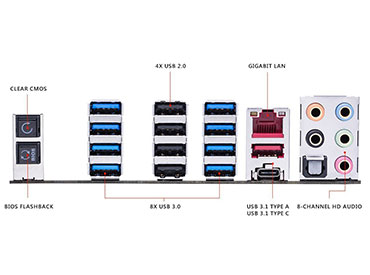

Conectores:
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)USB Type-CTM
1 x USB 3.1 Gen 2 (red)Type-A
8 x USB 3.1 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
5 x Gold-plated audio jacks
1 x M.2 Wi-Fi Slot

Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG big sticker
1 x Q-Connector
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package
1 x ROG coaster(s)

Garantía: 36 Meses
