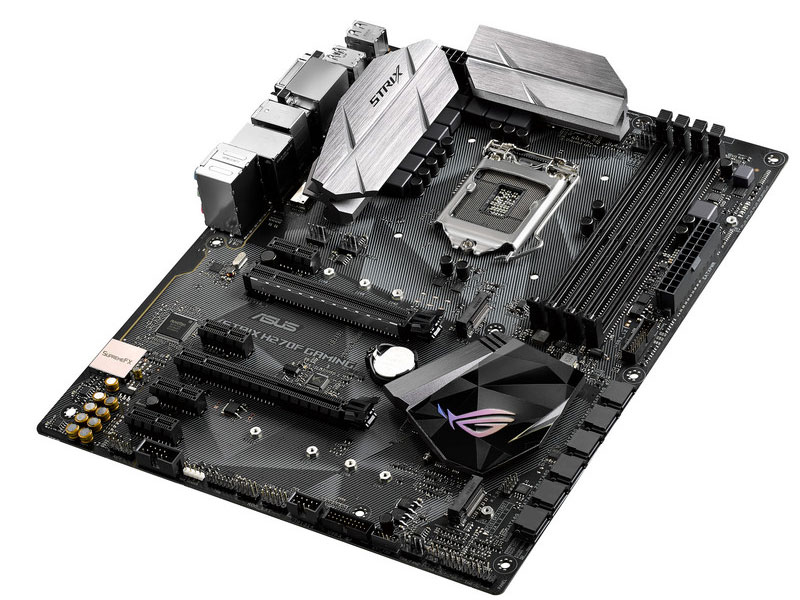

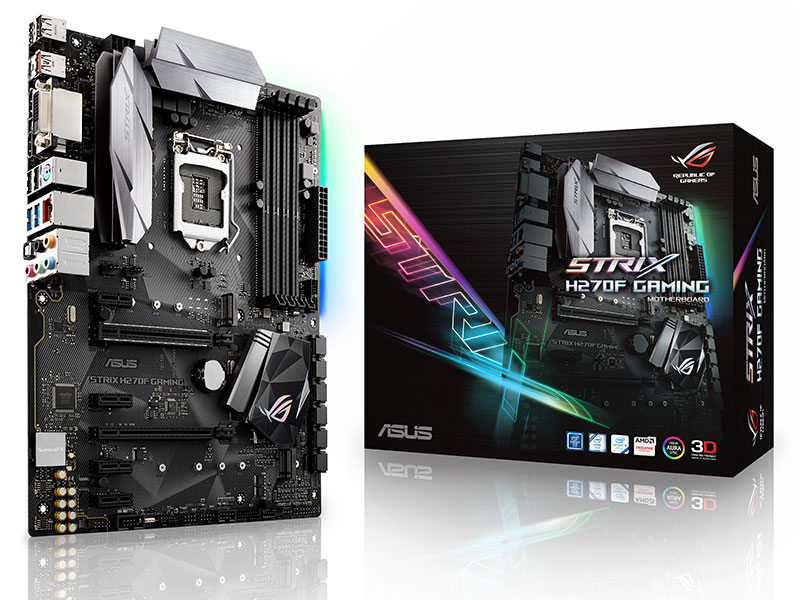

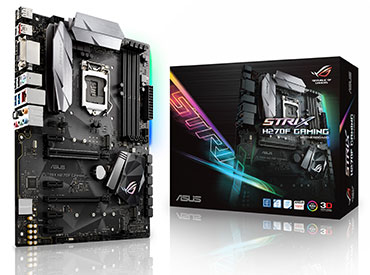

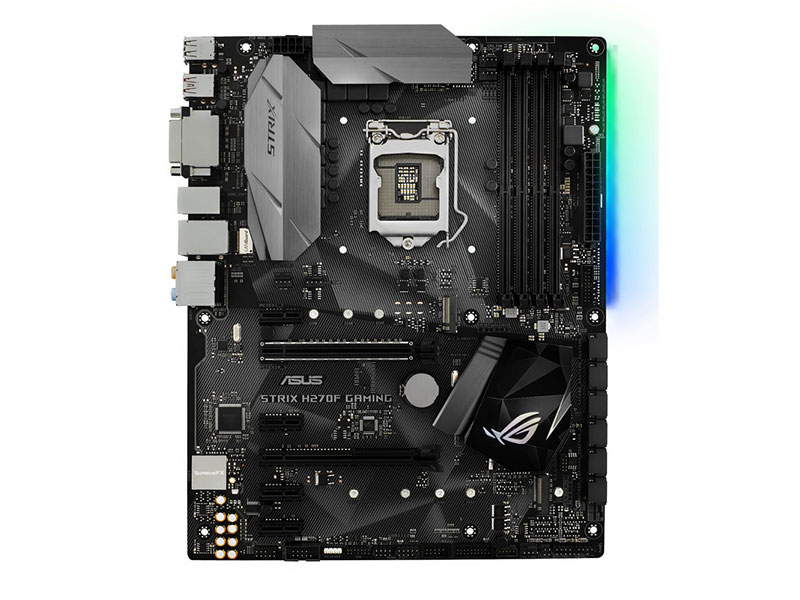

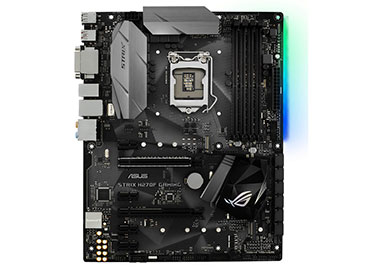

Marca: ASUS
Modelo: ROG STRIX H270F GAMING
Socket: Intel® Socket 1151
Chipset: Intel® H270
Soporte de Procesadores:
- Intel® 7ma y 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- Intel® Turbo Boost Technology 2.0

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 2400 / 2133 MHz
Non-ECC, Un-buffered Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 3 pantallas simultáneas
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

Puertos de expansión:
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1

Almacenamiento:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
*1 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
*2 The M.2_1 and M.2-2 sockets support Intel Optane Technology.
6 x SATA 6Gb/s connectors
Soporte para RAID 0, RAID 1, RAID 5 y RAID 10
Intel® Optane™ Memory Ready
Soporta Intel® Rapid Storage Technology 15

Tecnología Multi-Gráficos:
Soporte para AMD 2-Way CrossFireX Technology

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology

Audio:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

USB:
Chipset:
6 x USB 3.0 port(s) (2 at back panel, blue, 4 at mid-board)
8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
ASMedia® USB 3.1 controller:
2 x USB 3.1 port(s) (Type-A + Type-C, Support 3A power output)

ROG Exclusive Features:

ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Características Especiales:

Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- ESD Guards
Gaming Aesthetics:
- 3D printing friendly
- AURA-RGB Lighting
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM
Performance Optimization:
- DIGI + VRM
- GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
- AI Suite 3
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

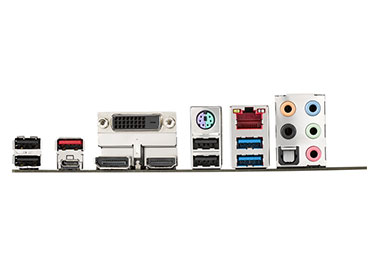

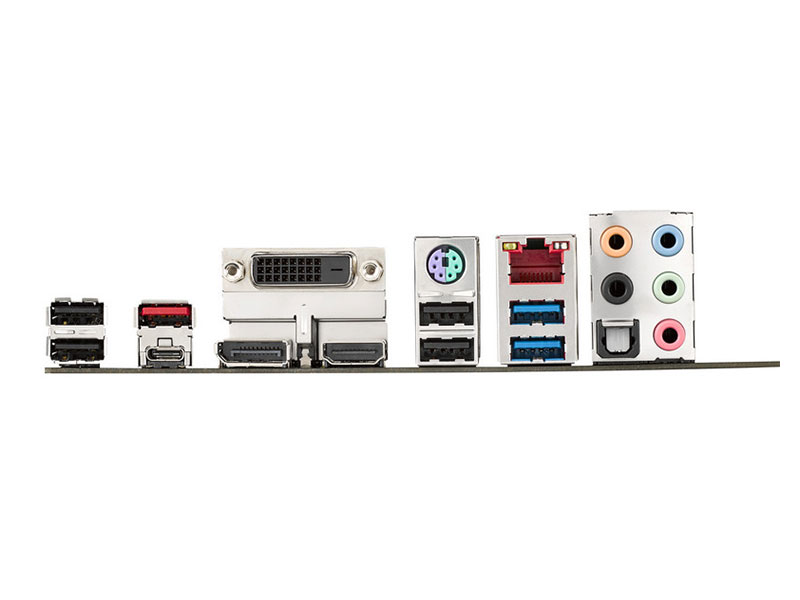

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Type-A + Type-C
2 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Incluye:
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x 10 in 1 ROG Cable Label(s)
1 x Extension Cable for RGB strips (80 cm)
1 x 3D printing mount package

Garantía: 36 Meses
