Marca: ASUS
Modelo: ROG STRIX Z370-E GAMING
Socket: Intel® Socket 1151
Chipset: Intel® Z370 Express
Soporte de Procesadores:
- Intel® de 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

Características Principales:
- Socket LGA1151 para la 8a generación de procesadores de escritorio Intel® Core™.
- Aura Sync RGB: Sincroniza iluminación LED con un vasto portafolio de dispositivos compatibles, incluyendo tiras RGB direccionables.
- Disipador M.2 integrado: Enria tu dispositivo M.2, ofreciendo rendimiento de almacenamiento constante y confiabilidad mejorada.
- Optimización de 5 vías: Mejora automática de sistema, que ofrece perfiles de enfriamiento y overclokeo personalizados para tu equipo.
- Audio para juegos: SupremeFX S1220A se alía con Sonic Studio III para crear el ambiente perfecto que te lleva dentro de la acción.
- Conectividad para juegos: M.2 dual y entradas USB 3.1 Gen 2 Tipo-A y Tipo-C.
- Redes para juegos: Intel Gigabit Ethernet, LANGuard, GameFirst y 2x2 802.11ac Wi-Fi con soporte MU-MIMO.
- Gamer’s Guardian: ASUS SafeSlot y componentes premium para mayor duración.

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
Soporte para módulos de memoria Non-ECC, Un-buffered, Register Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port supporting a maximum resolution of 4096 x 2160 @ 24 Hz
- 1 x DVI-D port supporting a maximum resolution of 1920 x 1200 @ 60 Hz
- 1 x DisplayPort supporting a maximum resolution of 4096 x 2304 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Máxima memoria compartida: 1 GB
Supports up to 3 displays simultaneously

Audio:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *3
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III

LAN:
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

Datos de redes inlámbricas:
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO

Puertos de expansión:
- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
- 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
- 4 x PCIe 3.0/2.0 x1

Almacenamiento:
Chipset:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
6 x SATA 6Gb/s
Soporta Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Tecnología Multi-Gráficos:
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX Technology

USB:
ASMedia® USB 3.1 Gen 2 controller:
1 x USB 3.1 Gen 2 front panel connector port(s)
2 x USB 3.1 port(s) (Type-A + USB Type-CTM, Support 3A power output)
Chipset:
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
6 x USB 2.0 port(s)

ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Características Especiales:

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Performance Optimization :
- DIGI + VRM
Turbo APP
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit

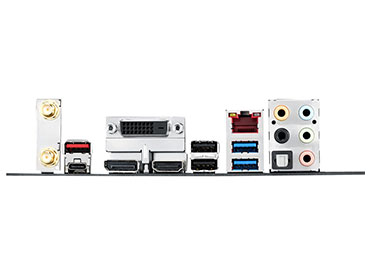

Conectores:
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-C
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Incluye:
User's manual
ASUS Q-Shield
1 x ASUS Fan Holder
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x CABLE TIE BLACK
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
ROG Fan Label
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x 3D printing mount package

Garantía: 36 Meses
