Marca: ASUS
Modelo: ROG STRIX Z370-F GAMING
Socket: Intel® Socket 1151
Chipset: Intel® Z370 Express
Soporte de Procesadores:
- Intel® de 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

Características Principales:
- LGA1151 socket for 8th-gen Intel® Core™ desktop processors
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C connectors.
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst.
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance.

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
Soporte para módulos de memoria Non-ECC, Un-buffered, Register Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port supporting a maximum resolution of 4096 x 2160 @ 24 Hz
- 1 x DVI port supporting a maximum resolution of 1920 x 1200 @ 60 Hz
- 1 x DisplayPort supporting a maximum resolution of 4096 x 2304 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Máxima memoria compartida: 1 GB
Supports up to 3 displays simultaneously

Audio:
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *3
Audio Feature :
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III

LAN:
Intel® I219V
Anti-surge LANGuard
ROG GameFirst Technology

Puertos de expansión:
- 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
- 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
- 4 x PCIe 3.0/2.0 x1

Almacenamiento:
Chipset:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s
Soporta Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Tecnología Multi-Gráficos:
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 3-Way CrossFireX Technology

USB:
ASMedia® USB 3.1 Gen 2 controller:
2 x USB 3.1 port(s) (Type-A + USB Type-CTM, Support 3A power output)
Chipset:
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
6 x USB 2.0 port(s)

ROG Exclusive Features:
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV
ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers

Características Especiales:

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Performance Optimization :
- DIGI + VRM
Turbo APP
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit

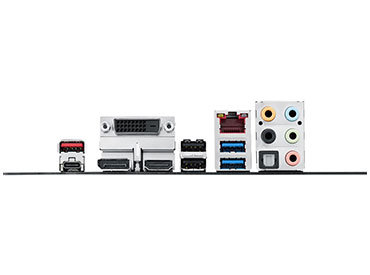

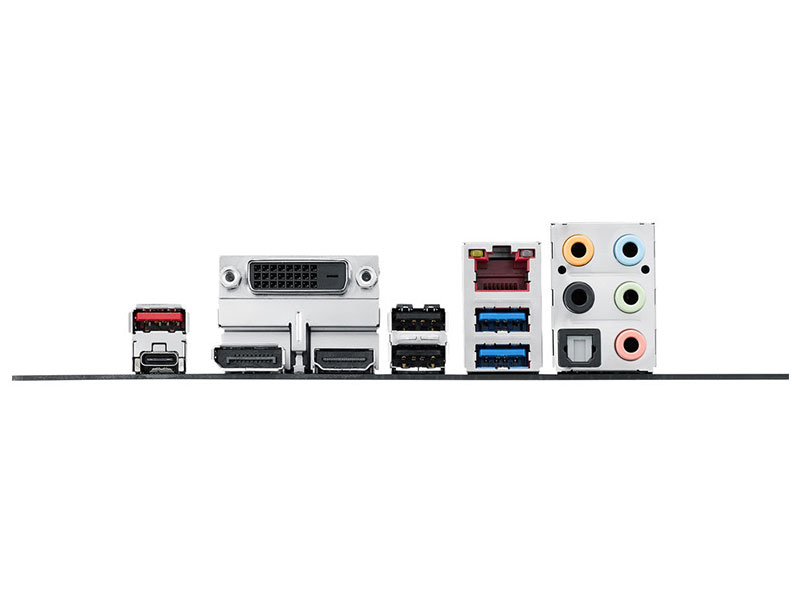

Conectores:
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-C
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.

Incluye:
User's manual
ASUS Q-Shield
1 x ASUS Fan Holder
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x Strix door hanger
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x 3D printing mount package

Garantía: 36 Meses
