Marca: ASUS
Modelo: TUF H310M-PLUS GAMING
Socket: Intel® Socket 1151
Chipset: Intel® H310 Express
Soporte de Procesadores:
- Intel® 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability.
- Fan Xpert: Flexible cooling controls.
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.
- Native M.2: Lightning-fast storage speeds.

Memoria:
2 x DDR4 DIMM, Max. 32GB Non-ECC, Un-buffered
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1 GB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Puertos de expansión:
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1

Almacenamiento:
Intel® H310 Chipset:
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)
4 x SATA 6Gb/s port(s), gray

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s)
TUF LANGuard

Audio:
Realtek® ALC887 7.1-Channel High Definition Audio CODEC*
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB:
Chipset:
4 x USB 3.1 Gen 1 up to 5Gbps ports (2 puertos en panel posterior, 2 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (4 puertos en panel posterior, 2 puertos mediante el header USB interno)

Características Especiales:

ASUS TUF PROTECTION :
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS OptiMem :
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- EZ XMP ASUS Exclusive Features
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS EZ Flash 3
- ASUS MyLogo 2
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Digi+VRM
AURA: RGB Lighting Control
M.2 Onboard(The latest transfer technologies with up to 20 Gb/s data transfer speeds)

Soporte Sistema Operativo:
Windows® 10 64-bit

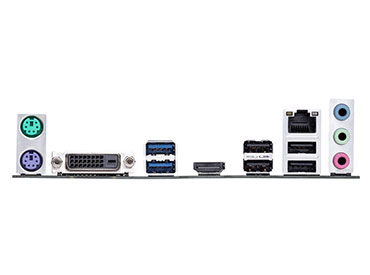

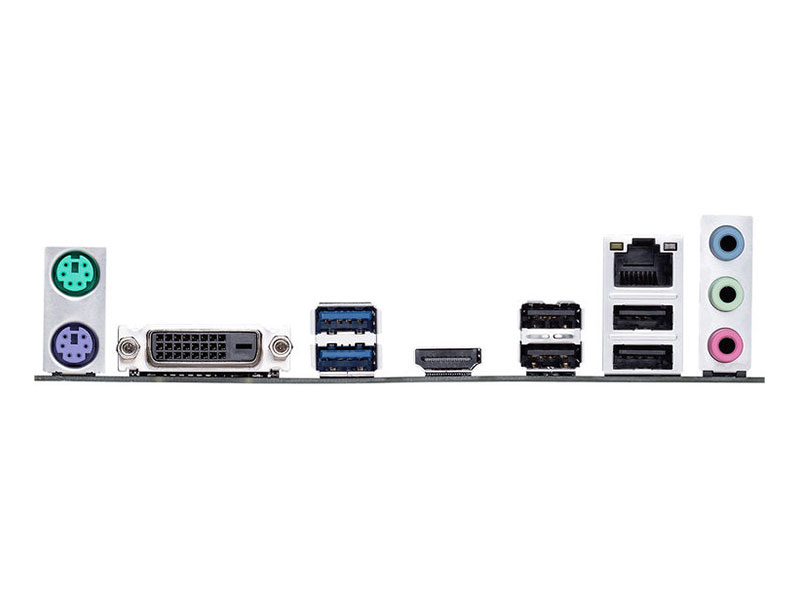

Conectores:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
4 x USB 2.0
3 x Audio jack(s)

Tamaño:
Micro ATX Form Factor
22.6 cm x 20.8 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF, F9 Search

Incluye:
User's manual I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)

Garantía: 36 Meses
