Marca: ASUS
Modelo: TUF Z370-PRO GAMING
Socket: Intel® Socket 1151
Chipset: Intel® Z370 Express
Soporte de Procesadores:
- Intel® de 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

Características Principales:
- ASUS OptiMem: Enrutamiento cuidadoso que preserva la integridad de la señal para un overclock de memoria más estable
- Audio Exclusivo DTS: Proporciona señales de posición a los auriculares estéreo, ayudándote a identificar a los enemigos en todo momento.
- TUF Protection: SafeSlot, ESD Guards, protección sobrecorriente DDR4, Digi+ VRM, y placa trasera de acero inoxidable para mayor duración.
- Componentes TUF: TUF LANGuard, TUF Chokes, TUF Capacitors, y TUF MOSFETs para máxima durabilidad.
- Fan Xpert 4 Core: Asegura que cada ventilador consiga el mejor equilibrio entre rendimiento y acústica.
- M.2 nativo: Interfaz para los últimos SSDs, ofreciendo velocidades de transferencia de hasta 32Gbps.

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
Soporte para módulos de memoria Non-ECC, Un-buffered, Register Memory
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI 1.4bport supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- 1 x DVI-D port supporting a maximum resolution of 1920 x 1200 @ 60 Hz
Máxima memoria compartida: 1 GB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS Turbo LAN Utility
TUF LANGuard

Puertos de expansión:
- 2 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**) *
- 1 x PCIe 3.0/2.0 x16 (max at x2 mode)
- 3 x PCIe 3.0/2.0 x1
* For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.
** For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.

Almacenamiento:
Chipset:
1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s
Soporta Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Tecnología Multi-Gráficos:
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD 2-Way CrossFireX Technology

USB:
ASMedia® USB 3.1 Gen 2 controller:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
Chipset:
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Características Especiales:

Performance & Power Saving Utility: Autoing Tuning with OC Tuner
ASUS TUF PROTECTION :
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI + VRM: 4+2+1 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Cloud GO!
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
CPU Installation Tool
- Three-step simplicity and safety
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)

Soporte Sistema Operativo:
Windows® 10 64-bit

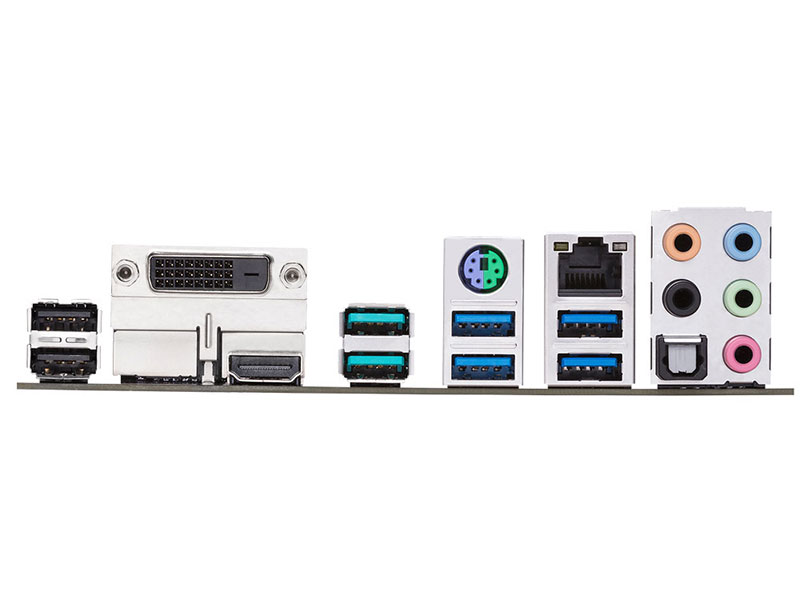

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x TUF Certification card(s)

Garantía: 36 Meses
