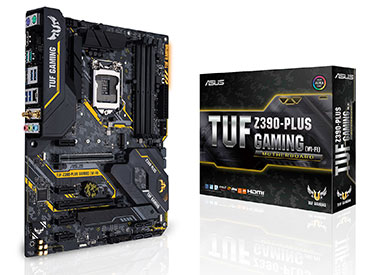

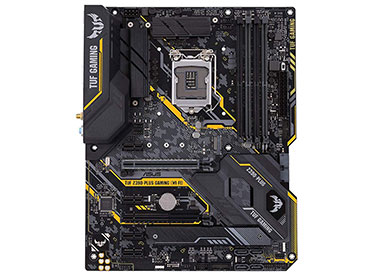

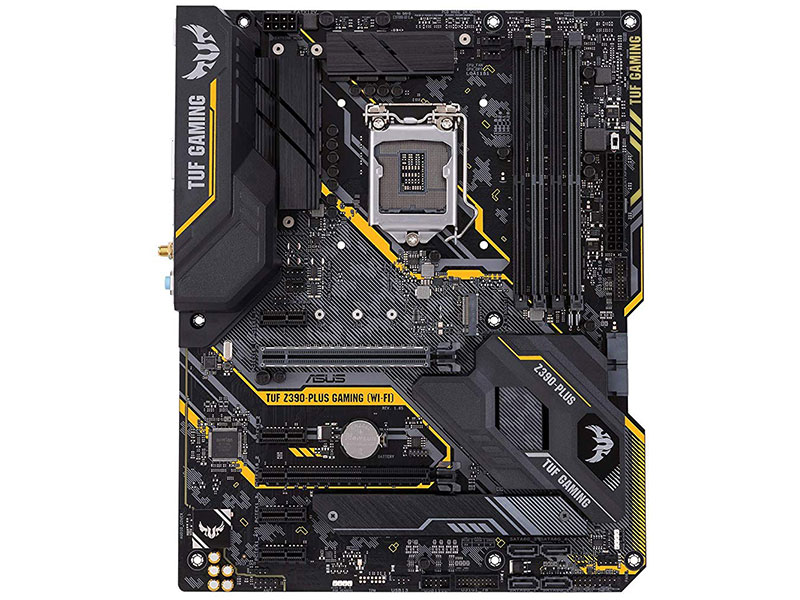

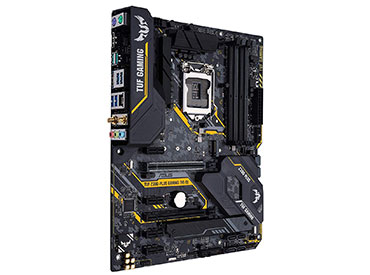

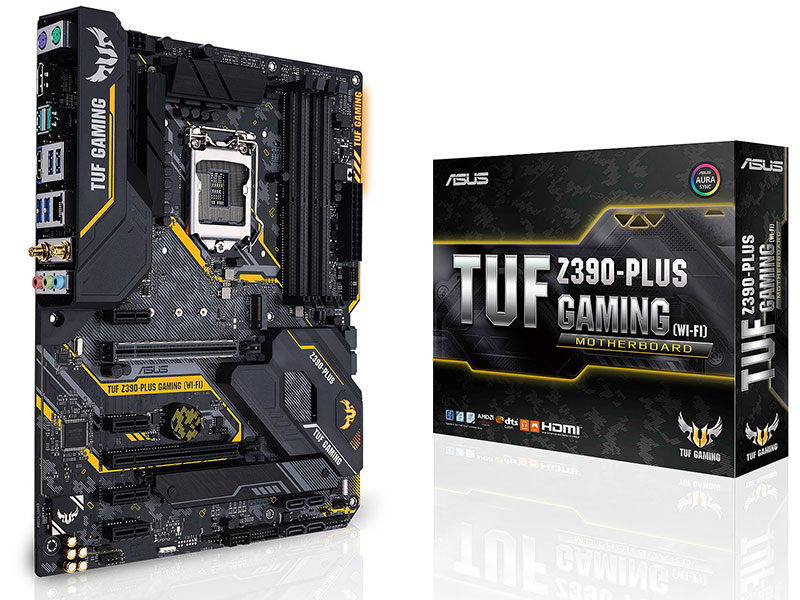

Mother ASUS TUF Z390-PLUS GAMING (WI-FI) Socket 1151

  • $ 21.402,00
  • 3 Años de Garantía
Cantidad:

Tarjetas de crédito

    Banco:

    Otros medios

      Marca: ASUS
      Modelo: TUF Z390-PLUS GAMING (WI-FI)
      Socket: Intel® Socket 1151
      Chipset: Intel® Z390
      Soporte de Procesadores:
      - Intel® 8va y 9na Generación: Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron®

      Características Principales:
      - Protección TUF: afeSlot, ESD Guards, protección DDR4 contra subidas de tensión , Digi+ VRM y panel trasero I/O de acero inoxidable.
      - Componentes TUF para aplicaciones militares: TUF LANGuard, TUF Chokes, condensadores TUF y TUF MOSFET que duran más tiempo.
      - ASUS OptiMem II: Circuito de memoria optimizado para preservar la integridad de la señal y ampliar el rango de overclocking.
      - MemOK II: Soluciona automáticamente los fallos de carga que pueden sucederse al acelerar la memoria.
      - Códec Realtek S1200A: Salida estéreo con 108 dB de relación señal-ruido y 103 dB en la entrada de línea.
      - Intel Wi-Fi: El nuevo adaptador integrado 802.11ac 9560, con 2x2 MU-MIMO, canales de 160 MHz y hasta 1,73 Gbps de velocidad.
      - Supervisión de temperaturas GPU y Fan Xpert 4: Asegura que cada ventilador ofrezca el mejor equilibrio entre refrigeración y emisiones de ruido.
      - Aura Sync RGB: Sincroniza la iluminación RGB con todo el catálogo de dispositivos compatibles.

      Memoria:
      4 x DDR4 DIMM, Max. 64GB Non-ECC, Un-buffered
      Soporte para módulos de memoria DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz
      Arquitectura de memoria Dual Channel
      Soporta Intel® Extreme Memory Profile (XMP)

      Gráficos:
      Gráficos integrados en el CPU (Soporte para Intel® UHD Graphics)
      - HDMI con una resolución máxima de 4096x2160 @ 30 Hz
      - DisplayPort con una resolución máxima de 4096x2304 @ 60 Hz
      Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
      DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays

      Soporte Multi GPU:
      Supports AMD CrossFireX™ Technology

      Puertos de expansión:
      1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
      1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
      4 x PCIe 3.0/2.0 x1 *1
      *For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
      *1. The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.

      Almacenamiento:
      Intel® Z390 Chipset:
      1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
      1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
      6 x SATA 6Gb/s port(s), gray, *3
      Soporte para Raid 0, 1, 5 y 10
      Intel® Rapid Storage Technology supports
      Intel® Optane™ Memory Ready
      Intel® CPU with Intel® Rapid Storage Technology support (RAID 0 & RAID 1)
      PCIEX16_1 slot supports up to 3 Intel® PCIe NVME SSDs via a HyperM.2 X16 series Card*4
      *2. When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
      *3. When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
      *4. Supports CPU RAID with Intel® PCIe NVME SSDs. RAID 0 and 1 are supported via a Hyper M.2 X16 series card or on RAID sets created between the onboard M.2 socket and a Hyper M.2 X16 series card.

      LAN:
      Intel® I219V, featuring Turbo LAN
      TUF LANGuard
      Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)

      Datos de redes inlámbricas:
      Intel® Wireless-AC 9560
      Wi-Fi 802.11 a/b/g/n/ac
      Supports dual band frequency 2.4/5 GHz
      Supports MU-MIMO
      Supports channel bandwidth: HT20/HT40/HT80/HT160

      Bluetooth:
      Bluetooth® 5.0

      Audio:
      Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
      - Supports : Jack-detection, Front Panel Jack-retasking
      Audio Feature:
      - Exclusive DTS Custom for GAMING Headsets.
      - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference.
      - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals.
      - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity.
      * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

      USB:
      Intel® Z390 Chipset:
      2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A)
      8 x USB 3.1 Gen 1 port(s) (4 at back panel, Type-A, 4 at mid-board)
      3 x USB 2.0/1.1 port(s) (3 at mid-board)

      Características Especiales:

      Fan Xpert4
      - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
      ASUS TUF PROTECTION
      - ASUS DIGI+ VRM: Precision control for stable power
      - ASUS SafeSlot: Protect your graphics card Investment
      - ASUS ESD Guard: Enhanced ESD protection
      - ASUS Overvoltage Protection: World-class circuit-protecting power design
      - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
      - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
      ASUS OptiMem II:
      - Optimem (Improved DDR4 stability)
      ASUS EPU:
      - EPU
      TUF ENGINE! Power Design:
      - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
      AURA:
      - Aura Lighting Control
      - Aura RGB Strip Headers
      ASUS Exclusive Features:
      - AI Suite 3
      - Ai Charger
      - Turbo LAN
      - PC Cleaner
      - File Transfer
      - ASUS C.P.R.(CPU Parameter Recall)
      ASUS Quiet Thermal Solution:
      - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
      - ASUS Fan Xpert 4
      ASUS EZ DIY:
      - ASUS O.C. Tuner
      - ASUS CrashFree BIOS 3
      - ASUS EZ Flash 3
      - ASUS UEFI BIOS EZ Mode
      ASUS Q-Design:
      - ASUS Q-Slot
      - ASUS Q-DIMM
      M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
      MemOK! II
      - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
      Q-Installer
      - Auto download driver and software. Friendly for first PC builder.

      Soporte Sistema Operativo:
      Windows® 10 64-bit

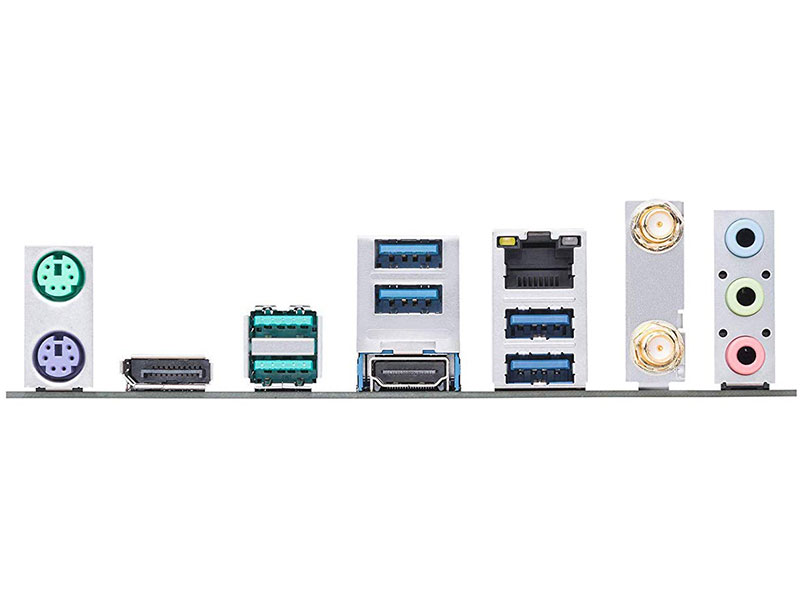

      Conectores:
      1 x PS/2 keyboard (purple)
      1 x PS/2 mouse (green)
      1 x DisplayPort
      1 x HDMI
      1 x LAN (RJ45) port(s)
      2 x USB 3.1 Gen 2 Type-A
      4 x USB 3.1 Gen 1 Type-A
      2 x Wi-Fi antenna port(s)
      3 x 8-channel Audio I/O

      Tamaño:
      ATX Form Factor
      30.5 cm x 24.4 cm

      BIOS:
      128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

      Incluye:
      User's manual
      I/O Shield
      2 x SATA 6Gb/s cable(s)
      1 x M.2 Screw Package
      1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
      1 x TUF Gaming Sticker
      1 x TUF Certification card(s)
      1 x SCD (by region)

      Garantía: 36 Meses
