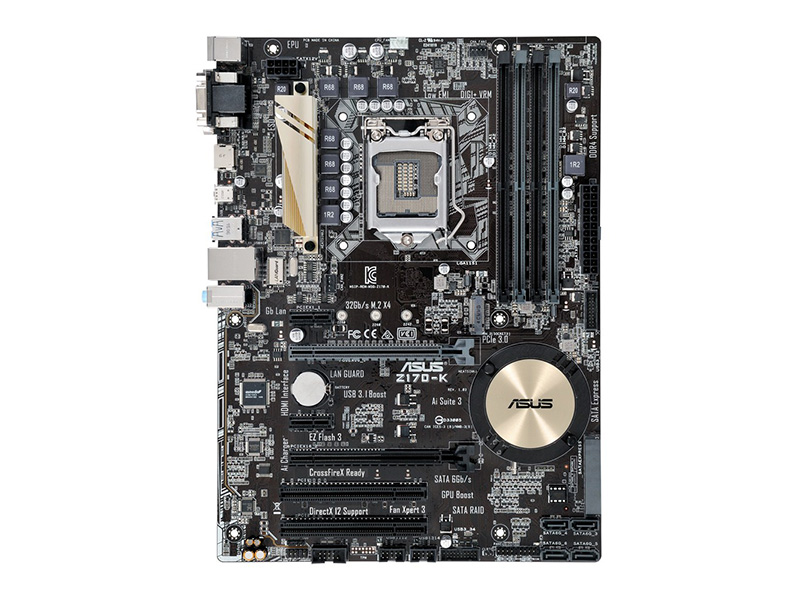

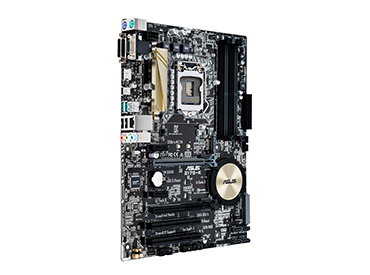

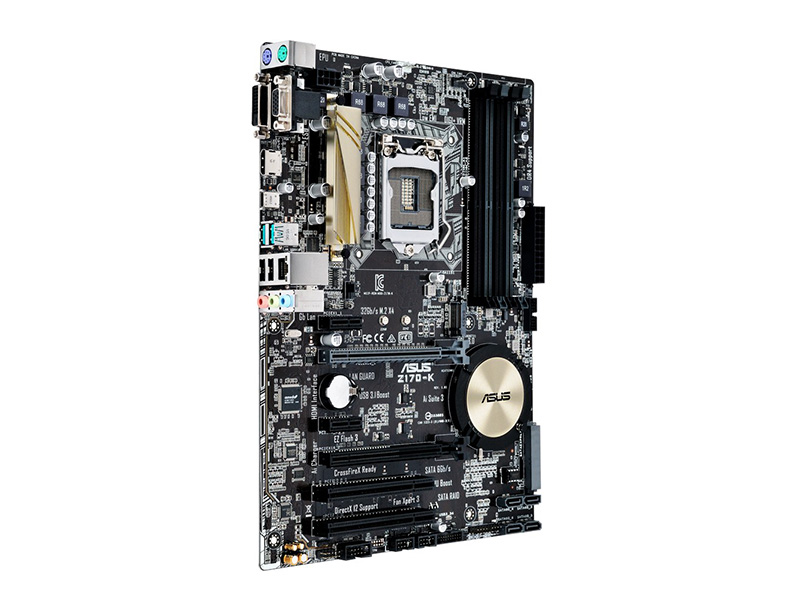

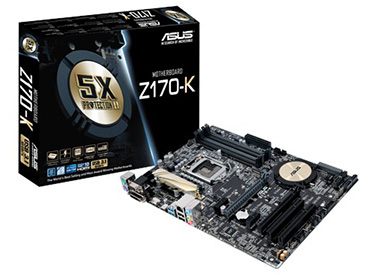

Marca: ASUS
Modelo: Z170-K
Socket: Intel® Socket 1151
Chipset: Intel® Z170
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0

Memoria:
4 x DIMM, Max. 64GB
DDR4 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz
Memorias Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Soporte Multi-GPU:
Soporta AMD Quad-GPU CrossFireX™ Technology

Puertos de expansión:
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
2 x PCIe 3.0/2.0 x1
2 x PCI

Almacenamiento:
Intel® Z170 chipset:
6 x SATA 6Gb/s port(s), gray
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
Soporta Raid 0, 1, 5, 10
Soporta Intel® Smart Response Technology

LAN:
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio:
Realtek® ALC887 8-Channel High Definition Audio CODEC
- Soporta: Jack-detection, Jack-retasking en el panel frontal
Características de audio:
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB:
ASMedia® USB 3.1 controller:
2 x USB 3.1/3.0/2.0 port(s) (2 at back panel, teal blue)
Intel® Z170 chipset:
1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
4 x USB 3.0/2.0 port(s) (Type-A, 4 at mid-board)
6 x USB 2.0/1.1 port(s) (2 at back panel, , Type-A, 4 at mid-board)

Características Especiales:

ASUS 5X Protection II:
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 6 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU:
- EPU
ASUS Exclusive Features:
- GPU Boost
- AI Suite 3
- Ai Charger
- M.2 & SATA Express
- Anti-Surge
- Low EMI Solution
- Disk Unlocker
- USB 3.0 Boost
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer

Soporte Sistema Operativo:
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit

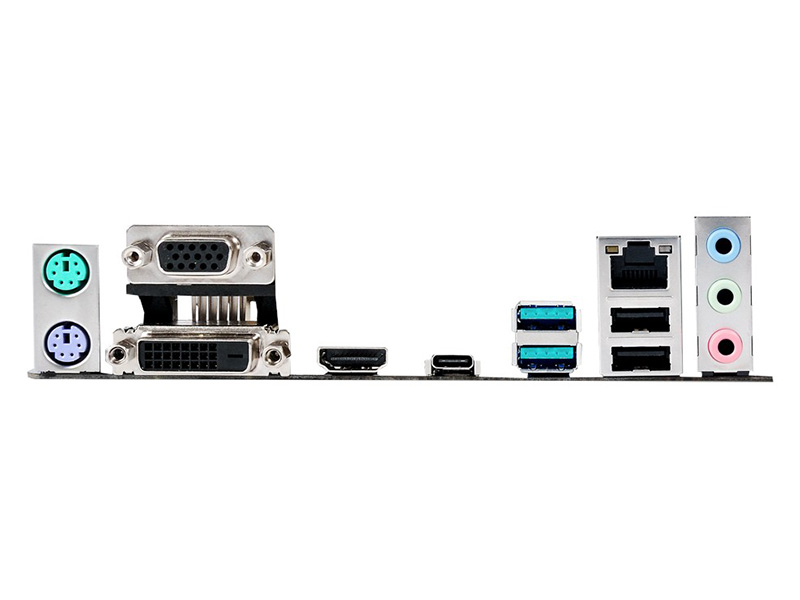

Conectores:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.1 (teal blue)Type-A
2 x USB 2.0
3 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 22.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

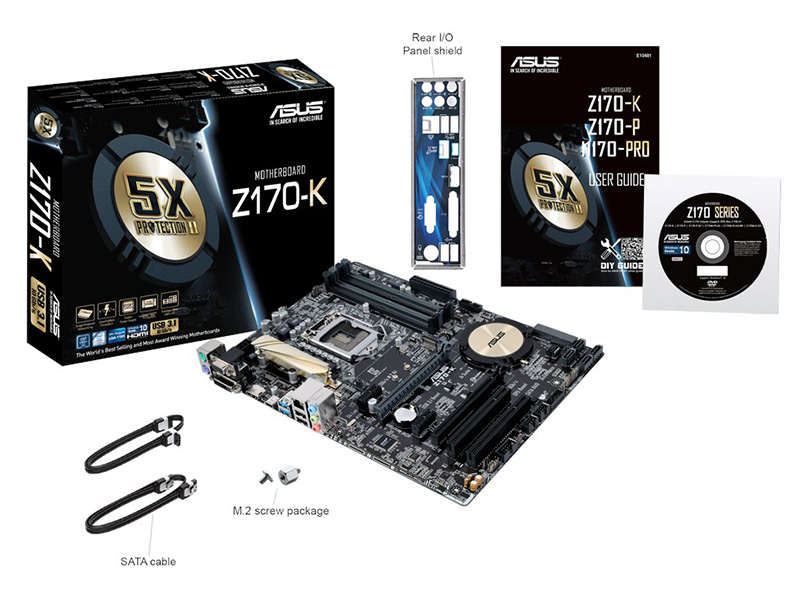

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

Garantía: 36 Meses
