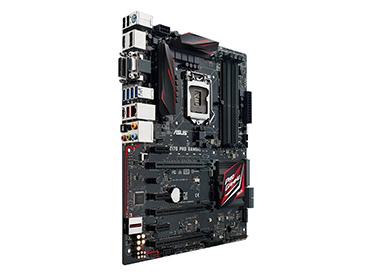

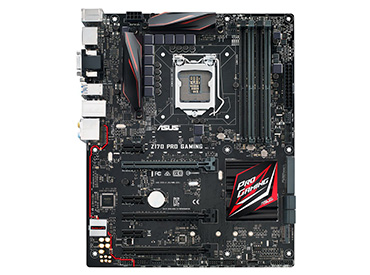

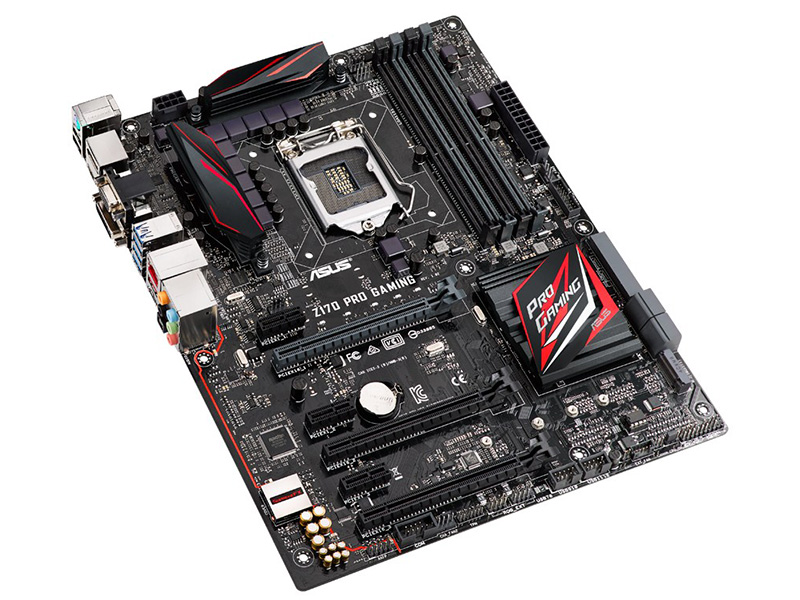

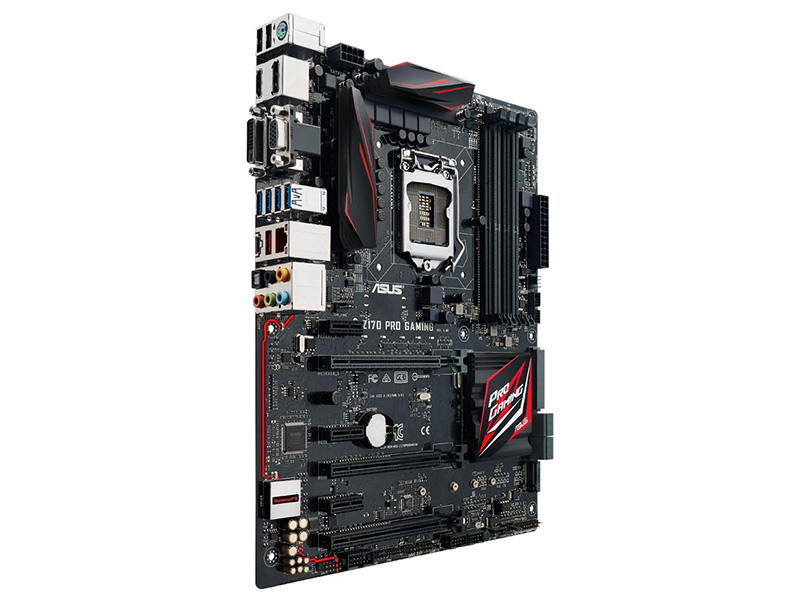

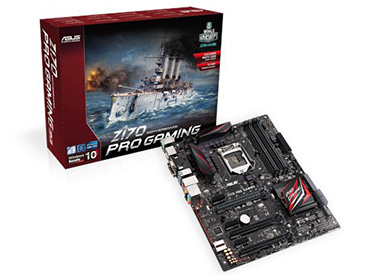

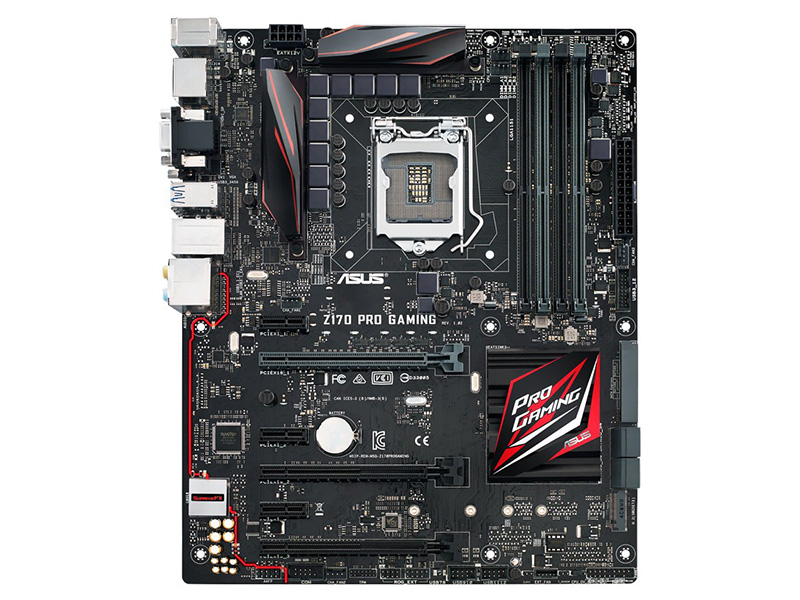

Marca: ASUS
Modelo: Z170 PRO GAMING
Socket: Intel® Socket 1151
Chipset: Intel® Z170
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0

Memoria:
4 x DIMM, Max. 64GB
DDR4 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2400(O.C.) / 2133 MHz
Memorias Non-ECC, Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
- DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
Máxima memoria compartida: 512 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Soporte Multi-GPU:
Soporta NVIDIA® Quad-GPU SLI™ Technology
Soporta NVIDIA® 2-Way SLI™ Technology
Soporta AMD Quad-GPU CrossFireX™ Technology
Soporta AMD 3-Way CrossFireX™ Technology

Puertos de expansión:
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8, )
1 x PCIe 3.0/2.0 x16 (max at x4 mode, )
3 x PCIe 3.0/2.0 x1

Almacenamiento:
Intel® Z170 chipset:
4 x SATA 6Gb/s port(s), gray
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
Soporta Raid 0, 1, 5, 10
Soporta Intel® Smart Response Technology

LAN:
Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Audio:
SupremeFX 8-Channel High Definition Audio CODEC
- Soporta: Jack-detection, Jack-retasking en el panel frontal
- High quality 115 dB SNR stereo playback output
Características de audio:
- SupremeFX Shielding™ Technology
- Optical S/PDIF out port(s) at back panel
- Sonic Radar II

USB:
ASMedia® USB 3.1 controller:
1 x USB 3.1 port(s) (Type-A)
1 x USB 3.1 port(s) (Type-C, Reversible)
Intel® Z170 chipset:
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)

Características Especiales:

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 3, and Turbo App
Gamer's Guardian:
- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
ASUS TPU :
- Auto Tuning
- TurboV
- GPU Boost
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.1 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
RAMCache

Soporte Sistema Operativo:
Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit

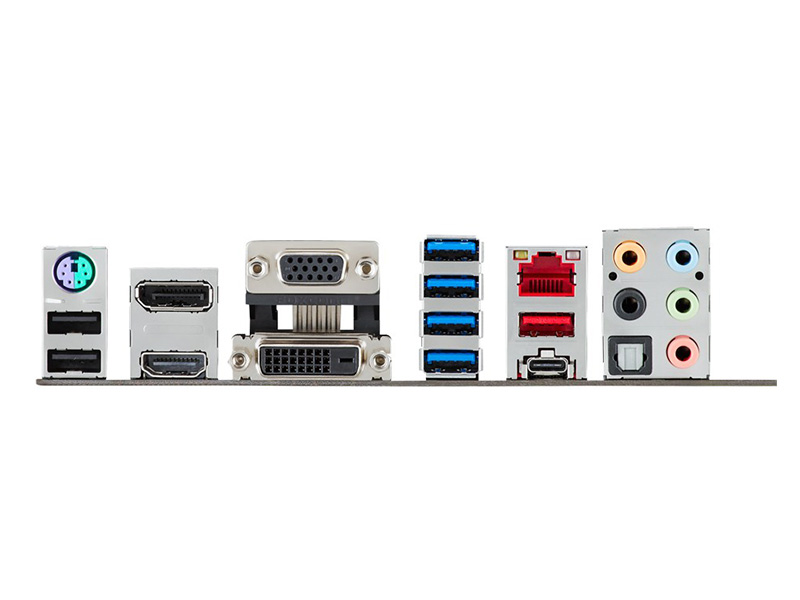

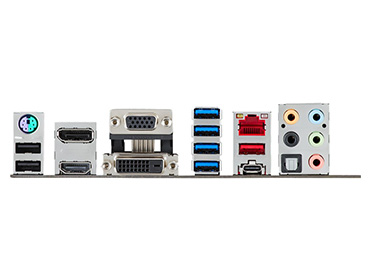

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 (red)Type-A 1
x USB 3.1 Type-C
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm

BIOS:
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Incluye:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x 12 in 1 Cable Label (s)

Garantía: 36 Meses
