Marca: ASUS

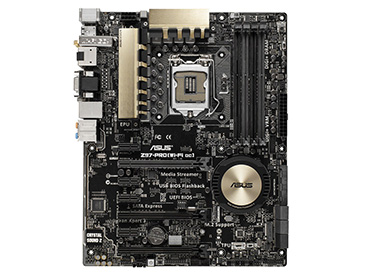

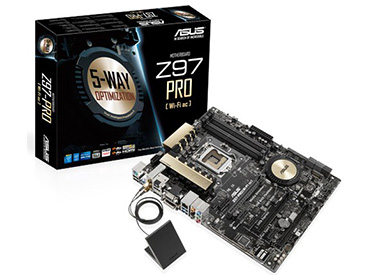

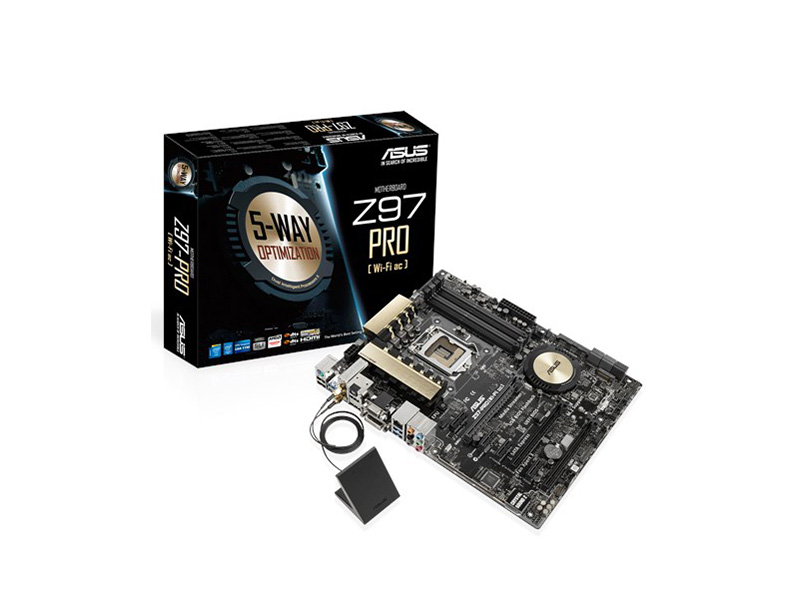

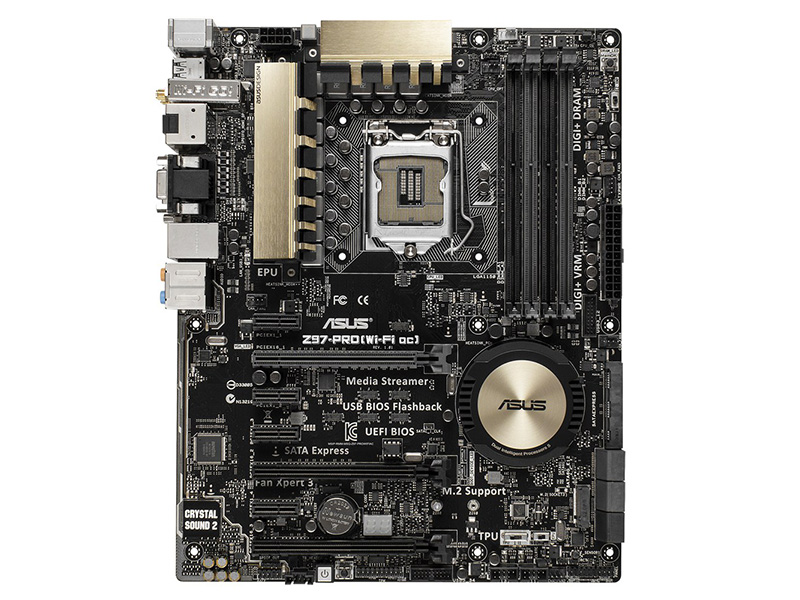

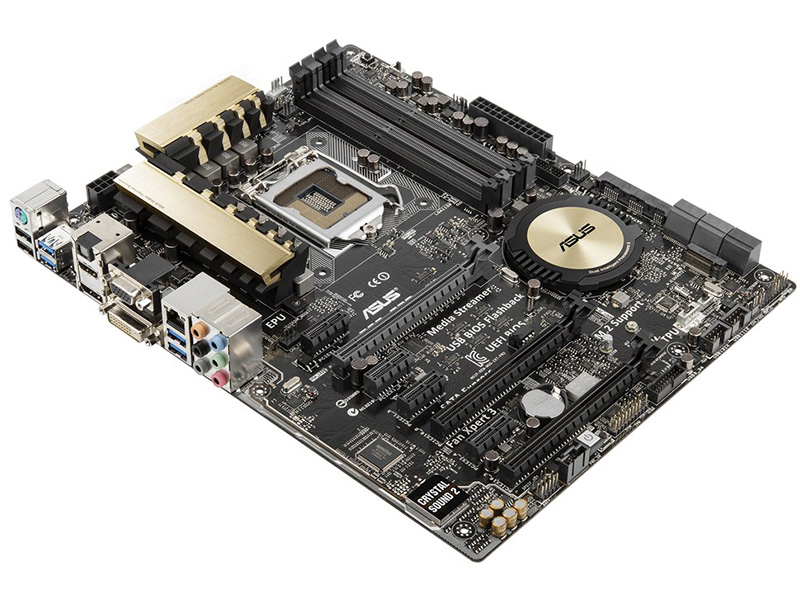

Modelo: Z97-PRO(Wi-Fi ac)
Socket: Intel® Socket 1150
Chipset: Intel® Z97
Soporte de Procesadores: Intel® 4ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Memoria:
4 x DIMM, Max. 32GB
DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1600 / 1333 MHz
Non-ECC Un-buffered
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- HDMI con una resolución máxima de 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- RGB con una resolución máxima de 1920 x 1200 @ 60 Hz
- DisplayPort con una resolución máxima de 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Máxima memoria compartida: 512MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Soporta hasta 3 monitores simultaneos
DP 1.2 Multi-Stream Transport compliant, soporta DP 1.2 monitor daisy chain hasta 3 monitores
Soporte Multi-GPU:
Soporta NVIDIA® Quad-GPU SLI™ Technology
Soporta AMD 3-Way CrossFireX™ Technology
Puertos de expansión:
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 2.0 x16 (x4 mode)
4 x PCIe 2.0 x1
Almacenamiento:
Intel® Z97 chipset:
1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s port(s), gray
Soporta Raid 0, 1, 5, 10
Soporta Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
ASMedia® PCIe SATA controller:
2 x SATA 6Gb/s port(s), black
LAN:
Intel® I218V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
Red de datos Wireless:
Wi-Fi 802.11a/b/g/n/ac
Soporta dual band frequency 2.4/5 GHz
Soporta ASUS Wi-Fi Go! Utility
Bluetooth:
Bluetooth V4.0
Audio:
Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Soporta: Jack-detection, Multi-streaming, MIC Jack-retasking en el panel frontal
- High quality 112 dB SNR stereo playback output y 104 dB SNR recording input
Características de audio:
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality
USB:
Intel® Z97 chipset:
6 x puerto(s) USB 3.0/2.0 (2 en panel posterior, azul, 4 en placa)
6 x puerto(s) USB 2.0/1.1 (2 en panel posterior, negro, 4 en placa)
ASMedia® USB 3.0 controller:
2 x puerto(s) USB (2 en panel posterior, azul)
Características Especiales:
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection:
- ASUS DIGI+ VRM - 12 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TPU:
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU:
- EPU
- EPU switch
ASUS Digital Power Design:
- Industry leading Digital 12 Phase Power Design
- Industry leading Digital 2 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
ASUS EZ DIY:
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Media Streamer
Turbo App
Fan Xpert 3

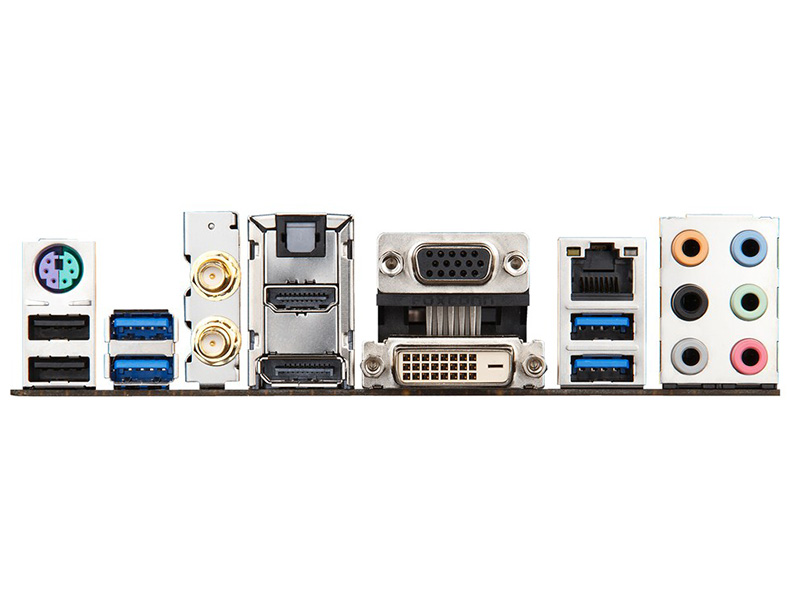

Conectores:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
Tamaño:
ATX Form Factor
30.5 cm x 24.4 cm
BIOS:
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
Incluye:
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
Garantía: 36 Meses
