Marca: Asus

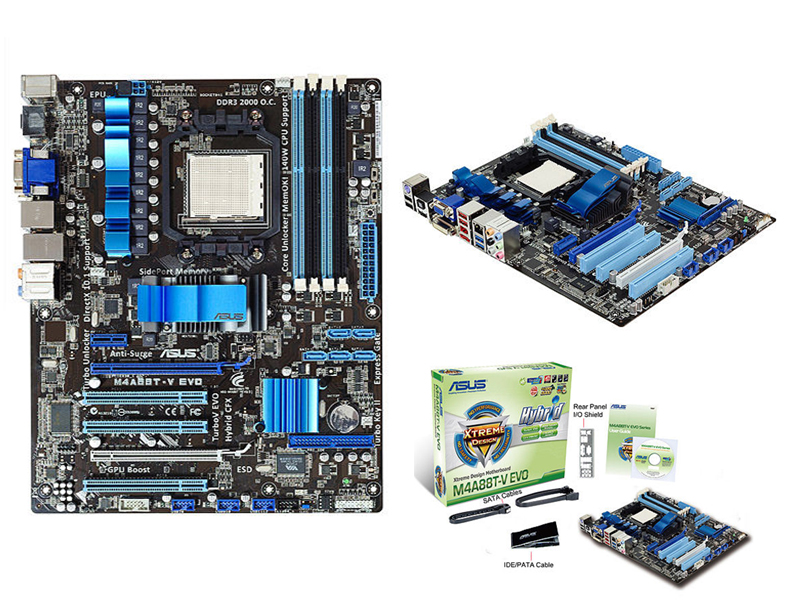

Modelo: M4A88T-V EVO


SOPORTE DE PROCESADORES:
AM3 (Phenom™ II/Athlon™ II/Sempron™ 100 Series)

CHIPSET:
AMD 880G/SB710

MEMORIA DEL SISTEMA:
4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1600(O.C.)/1333/1066 Hz
Soporta Dual Channel

SLOTS DE EXPANSIÓN:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
3 x PCI

SATA:
1 x UltraDMA 133/100/66 hasta 2 PATA
5 x SATA 3Gb/s port(s), blue
1 x eSATA 3Gb/s port(s), red
Support Raid 0, 1, 10, JBOD

AUDIO 7.1 ONBOARD:
Realtek® ALC 887 8-Channel High Definition Audio CODEC

LAN ONBOARD:
Realtek® 8111E , 1 x Gigabit LAN

Panel Trasero de Conectores de E/S:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x eSATA 3Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
6 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)

Conectores Internos:
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
5 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Core Unlocker switch(es)
1 x Turbo Key II switch(es)

DIMENSIONES:
ATX Form Factor
30.5 cm x 24.4 cm

Incluye: Manual, CD de Drivers, I/O Shield y 2 cables SATA 6Gb/s

Garantía: 12 meses
