Marca: Asus

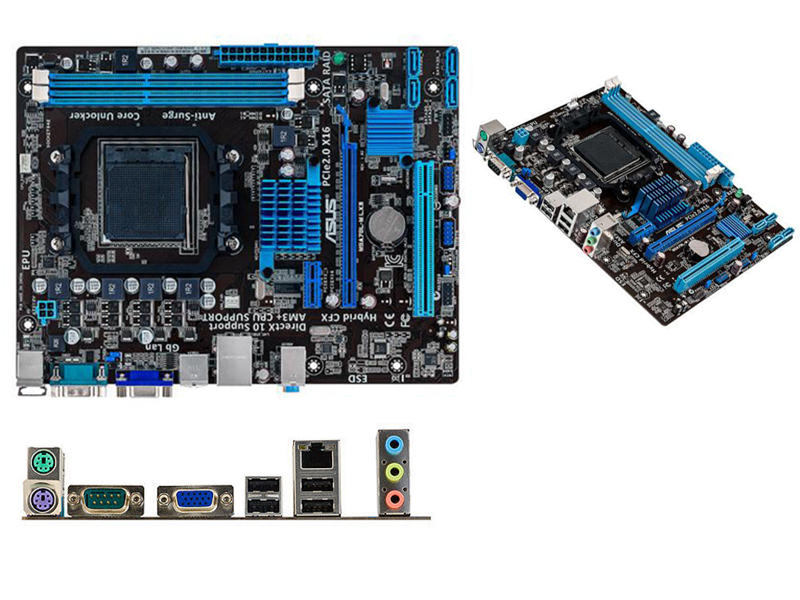

Modelo: M5A78L-M LX3


SOPORTE DE PROCESADORES:
AM3+ ( FX™/Phenom™ II/Athlon™ II/Sempron™ )

CHIPSET:
AMD 760G (780L)/SB710

MEMORIA DEL SISTEMA:
2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

VIDEO ONBOARD:
Integrated ATI Radeon™ HD 3000 GPU
VGA output support

SLOTS DE EXPANSIÓN:
1 x PCIe 2.0 x16
1 x PCIe 2.0 x1
1 x PCI

SATA:
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 10, JBOD

AUDIO 7.1 ONBOARD:
Realtek® ALC887 8-Channel High Definition Audio CODEC

LAN ONBOARD:
Qualcomm Atheros 8161/8171, 1 x Gigabit LAN Controller

Panel Trasero de Conectores de E/S:
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)

Conectores Internos:
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)

DIMENSIONES:
uATX Form Factor
24.4 cm x 18.8 cm

Incluye: Manual, CD de Drivers, I/O Shield y 2 cables SATA 6Gb/s

Garantía: 12 meses
