Marca: Gigabyte

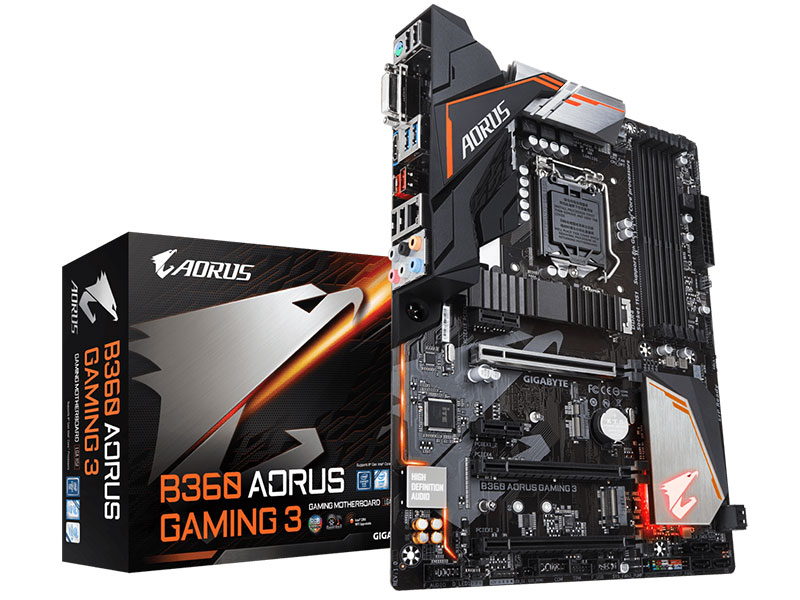

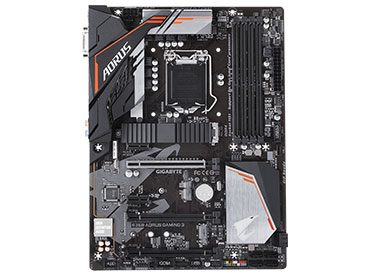

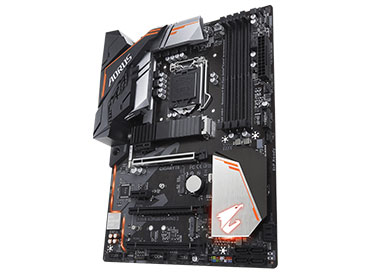

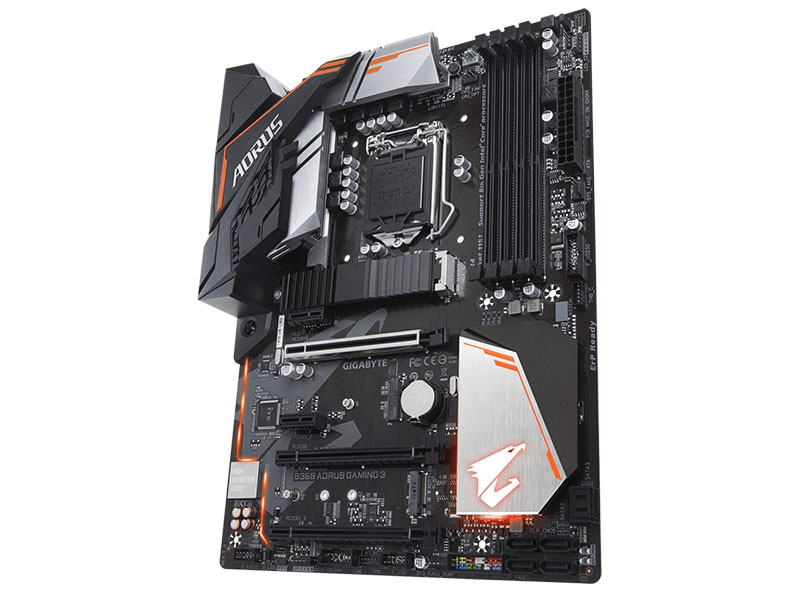

Modelo: B360 AORUS GAMING 3 (rev 1.0)
Socket: Intel® Socket 1151
Chipset: Intel® B360 Express
Soporte de Procesadores:
- Intel® 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
- HDMI con una resolución máxima de 4096 x 2160 @ 30 Hz
* Soporte para HDMI 1.4 y HDCP 2.2
Máxima memoria compartida: 1 GB
Puertos de expansión:
1 x PCI Express x16 slot (PCIEX16)
1 x PCI Express x16 slot (PCIEX4)
1 x PCI Express x16 slot (PCIEX4)
2 x PCI Express x1 slot
(Todos los slots PCI Express conforman el estandar PCI Express 3.0)
1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
* The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
6 x SATA 6Gb/s connectors
Intel® Optane™ Memory Ready
LAN:
Intel® GbE LAN chip (10/100/1000 Mbit)
Audio:
Realtek® ALC892 codec
Audio de alta definición
2/4/5.1/7.1-channel
Soporte para salida S/PDIF
USB:
Chipset:
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
4 x USB 3.1 Gen 1 ports (2 puertos en panel posterior, 2 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (4 puertos en panel posterior, 2 puertos mediante el header USB interno)
Características Especiales:
Soporte para APP Center:
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart TimeLock
Smart Keyboard
Smart Backup
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install
Soporte Sistema Operativo:
Windows 10 64-bit

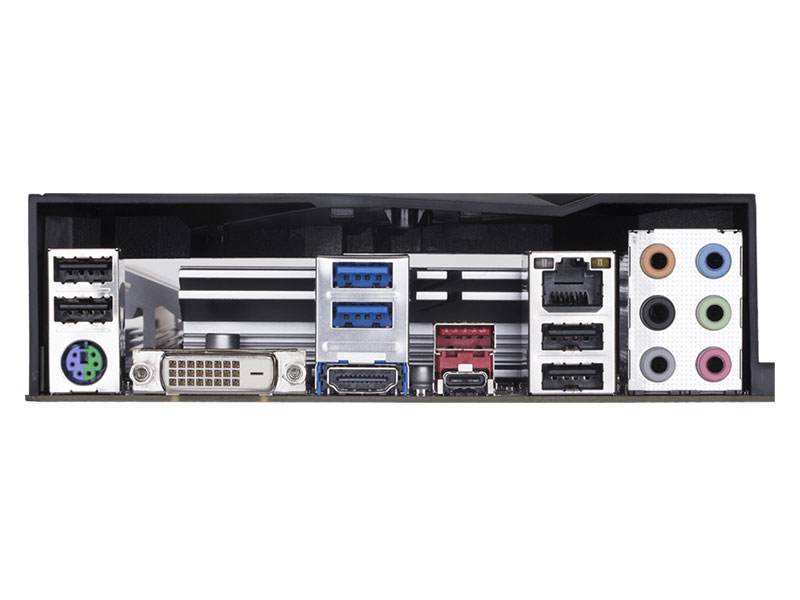

Conectores:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
1 x USB 3.1 Gen 2 Type-A port (red)
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Tamaño:
ATX Form Factor
30.5cm x 22.5cm
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk
Garantía: 36 Meses
