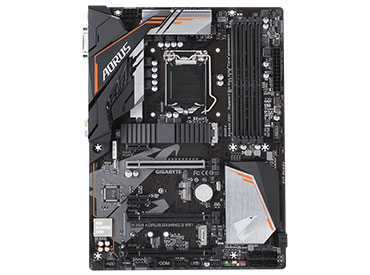

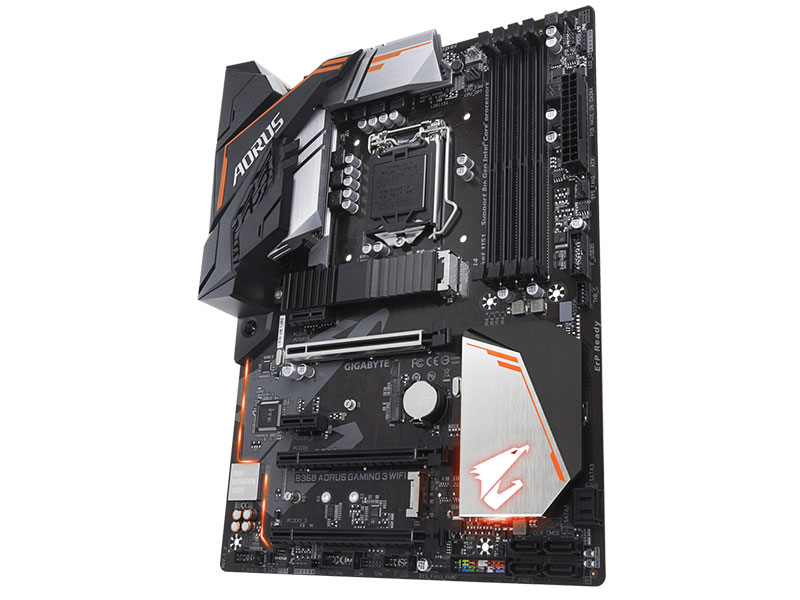

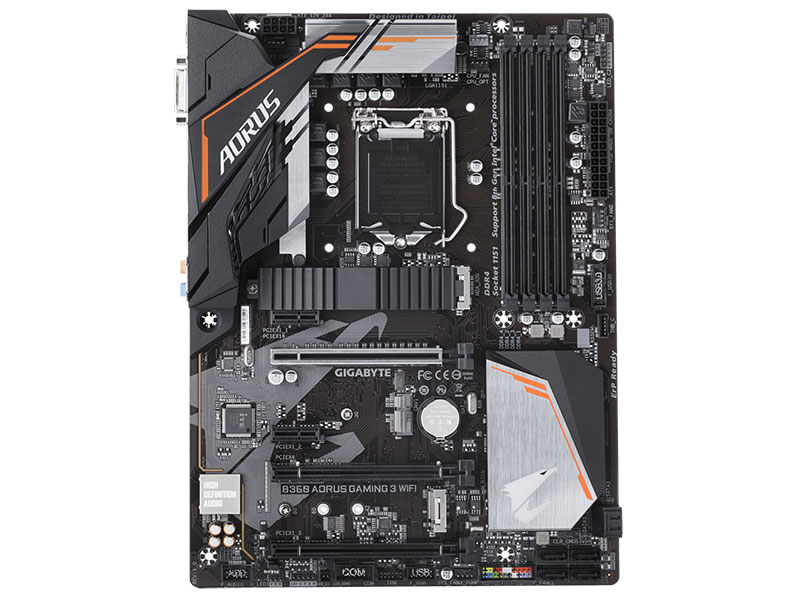

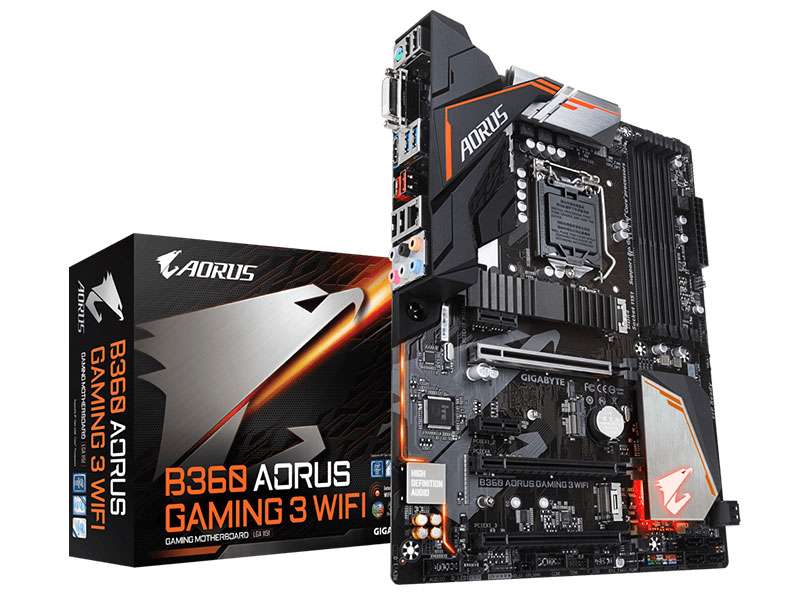

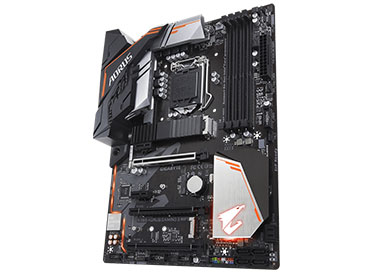

Mother Gigabyte B360 AORUS GAMING 3 WIFI Socket 1151

  • $ 7.071,00
  • 3 Años de Garantía
Cantidad:

Tarjetas de crédito

    Banco:

    Otros medios

      Marca: Gigabyte
      Modelo: B360 AORUS GAMING 3 WIFI (rev 1.0)
      Socket: Intel® Socket 1151
      Chipset: Intel® B360 Express
      Soporte de Procesadores:
      - Intel® 8va generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

      Memoria:
      4 x DDR4 DIMM, Max. 64GB
      Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
      Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
      Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
      Arquitectura de memoria Dual Channel
      Compatible con Intel® Extreme Memory Profile (XMP)

      Gráficos:
      Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
      - DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
      - HDMI con una resolución máxima de 4096 x 2160 @ 30 Hz
      * Soporte para HDMI 1.4 y HDCP 2.2
      Máxima memoria compartida: 1 GB

      Puertos de expansión:
      1 x PCI Express x16 slot (PCIEX16)
      1 x PCI Express x16 slot (PCIEX4)
      1 x PCI Express x16 slot (PCIEX4)
      2 x PCI Express x1 slot
      (Todos los slots PCI Express conforman el estandar PCI Express 3.0)
      1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
      * B360 AORUS GAMING 3 WIFI includes the GC-CI22M_A CNVi wireless module.
      * The CNVi connector shares bandwidth with the F_USB2 header. When a WIFI module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.

      Almacenamiento:
      Chipset:
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
      6 x SATA 6Gb/s connectors
      Intel® Optane™ Memory Ready

      LAN:
      Intel® GbE LAN chip (10/100/1000 Mbit)

      Wireless Communication module:
      GC-CI22M_A CNVi wireless module
      Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      BLUETOOTH 5
      Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.

      Audio:
      Realtek® ALC892 codec
      Audio de alta definición
      2/4/5.1/7.1-channel
      Soporte para salida S/PDIF

      USB:
      Chipset:
      1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
      1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
      4 x USB 3.1 Gen 1 ports (2 puertos en panel posterior, 2 puertos mediante el header USB interno)
      6 x USB 2.0/1.1 ports (4 puertos en panel posterior, 2 puertos mediante el header USB interno)

      Características Especiales:

      Soporte para APP Center:
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
      Soporte para Q-Flash
      Soporte para Xpress Install

      Soporte Sistema Operativo:
      Windows 10 64-bit

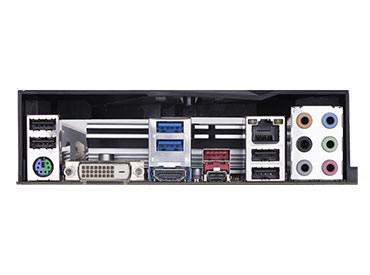

      Conectores:
      1 x PS/2 keyboard/mouse port
      1 x DVI-D port
      1 x HDMI port
      1 x USB 3.1 Gen 2 Type-A port (red)
      1 x USB Type-C™ port, with USB 3.1 Gen 1 support
      2 x USB 3.1 Gen 1 ports
      4 x USB 2.0/1.1 ports
      1 x RJ-45 port
      6 x audio jacks

      Tamaño:
      ATX Form Factor
      30.5cm x 22.5cm

      BIOS:
      2 x 128 Mbit flash
      Use of licensed AMI UEFI BIOS
      Support for DualBIOS™
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Incluye:
      User's manual
      I/O Shield
      2 x SATA 6Gb/s cable(s)
      Motherboard driver disk

      Garantía: 36 Meses
