Marca: Gigabyte
Modelo: B365 HD3 (rev 1.0)
Socket: Intel® Socket 1151
Chipset: Intel® B365 Express
Soporte de Procesadores:
- Intel® 8va y 9na Generación: Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron®

Características Principales:
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- M.2 Socket 1 slot for WIFI upgradable
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface
- Supports RGB LED strips in 7 colors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors & Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Intel® Optane™ Memory Ready
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1 x D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
- 1 x DVI-D con una resolución máxima de 1920 x 1200 @ 60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI con una resolución máxima de 4096 x 2160 @ 30 Hz
* Soporte para HDMI 1.4 y HDCP 2.2
Soporta hasta 3 monitores al mismo tiempo
Máxima memoria compartida: 1 GB

Puertos de expansión:
1 x PCI Express x16 slot (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
4 x PCI Express x1 slots
(Todos los slots PCI Express conforman el estandar PCI Express 3.0)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Tecnología Multi-Gráficos:
Soporte para tecnologías AMD Quad-GPU CrossFire™ y 2-Way AMD CrossFire™

Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P)
6 x SATA 6Gb/s connectors
Soporte para RAID 0, RAID 1, RAID 5 y RAID 10
Intel® Optane™ Memory Ready

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio:
Realtek® ALC892 codec
Audio de alta definición
2/4/5.1/7.1-channel
Soporte para S/PDIF Out

USB:
Chipset:
6 x USB 3.1 Gen 1 ports (4 puertos en panel posterior, 2 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (2 puertos en panel posterior, 4 puertos mediante el header USB interno)

Características Especiales:

Soporte para APP Center:
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows 10 64-bit

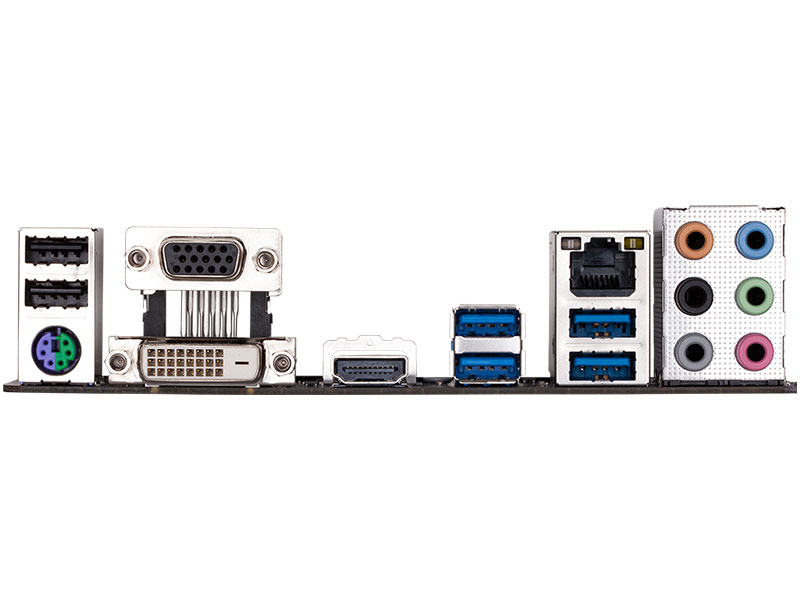

Conectores:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks

Tamaño:
ATX Form Factor
30.5cm x 22.5cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
