Marca: Gigabyte

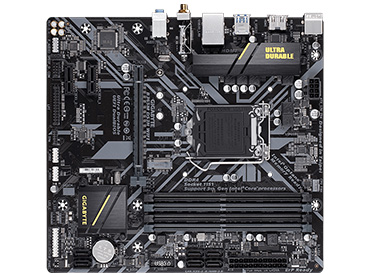

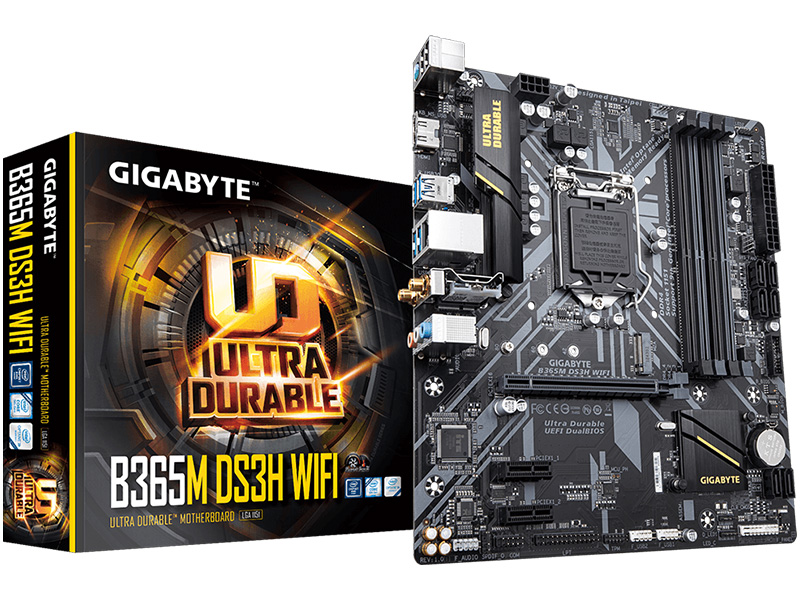

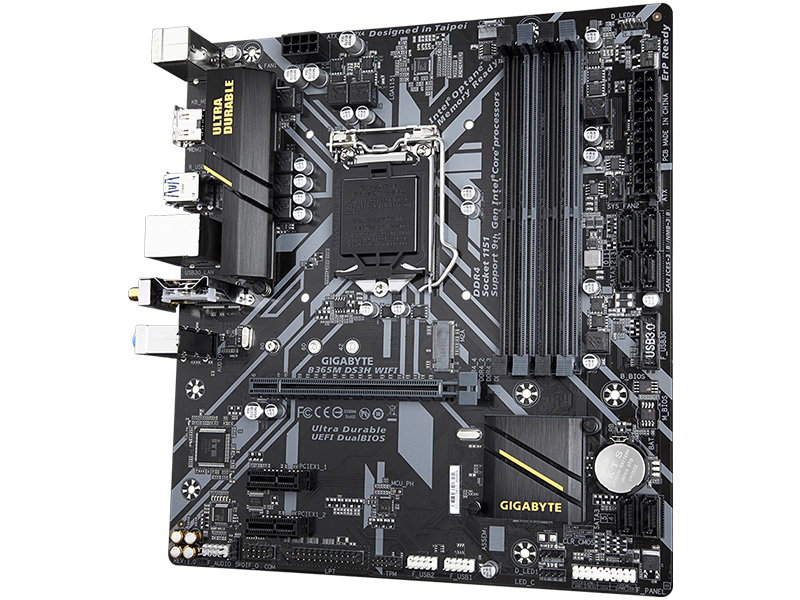

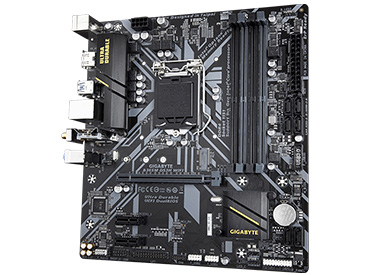

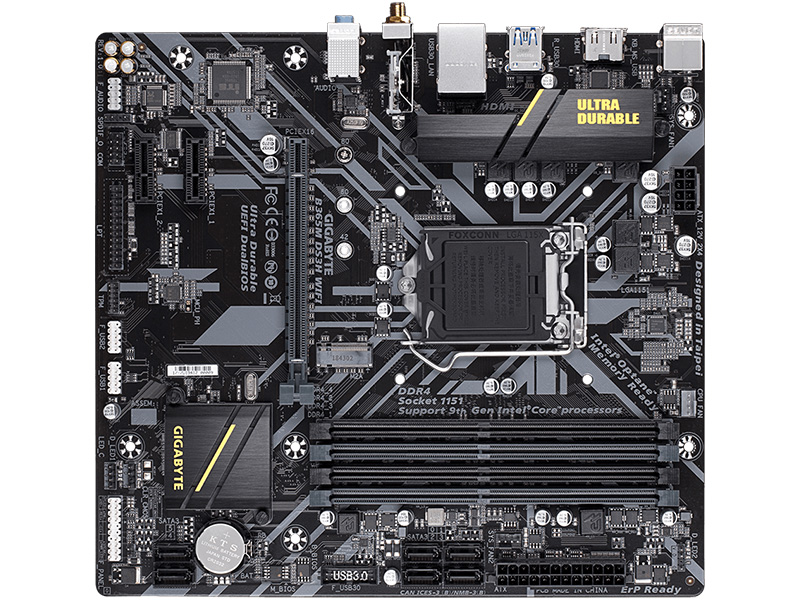

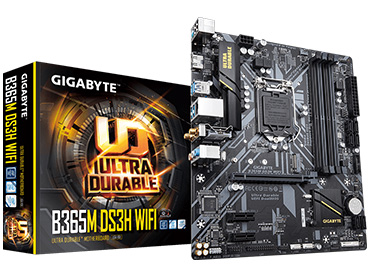

Modelo: B365M DS3H WIFI (rev 1.0)
Socket: Intel® Socket 1151
Chipset: Intel® B365 Express
Soporte de Procesadores:
- Intel® 8va y 9na Generación: Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron®

Características Principales:
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4
- New Hybrid Digital PWM Design
- High Quality Audio Capacitors
- Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
- Intel® Dual Band 802.11ac WIFI & BT 4.2
- RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save the Power as Easy as One Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Anti-Sulfur Resistors Design
- Ultra Durable™ 15KV Surge LAN Protection
- Intel® Optane™ Memory Ready
- GIGABYTE UEFI DualBIOS™

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1 x HDMI con una resolución máxima de 4096 x 2160 @ 30 Hz
* Soporte para HDMI 1.4 y HDCP 2.2
Máxima memoria compartida: 1 GB

Puertos de expansión:
1 x PCI Express x16 slot (PCIEX16)
2 x PCI Express x1 slot
(Todos los slots PCI Express conforman el estandar PCI Express 3.0)

Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA y PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Soporte para RAID 0, RAID 1, RAID 5 y RAID 10
Intel® Optane™ Memory Ready

Módulo de Comunicación inalámbrica:
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio:
Realtek® ALC887 codec
Audio de alta definición
2/4/5.1/7.1-channel
Soporte para S/PDIF Out

USB:
Chipset:
6 x USB 3.1 Gen 1 ports (4 puertos en panel posterior, 2 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (2 puertos en panel posterior, 4 puertos mediante el header USB interno)

Características Especiales:

Soporte para APP Center:
@BIOS
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Keyboard
Smart Backup
Smart Survey
System Information Viewer
USB Blocker
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows 10 64-bit

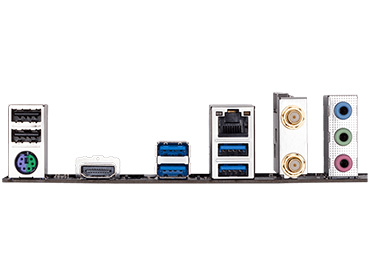

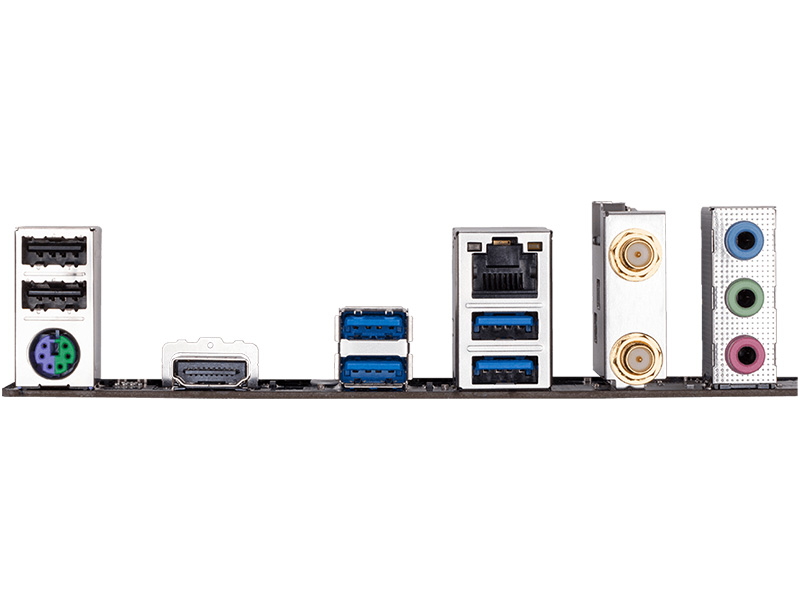

Conectores:
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Tamaño:
Micro ATX Form Factor
24.4cm x 22.6cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk
2 x Wi-Fi antennas

Garantía: 36 Meses
