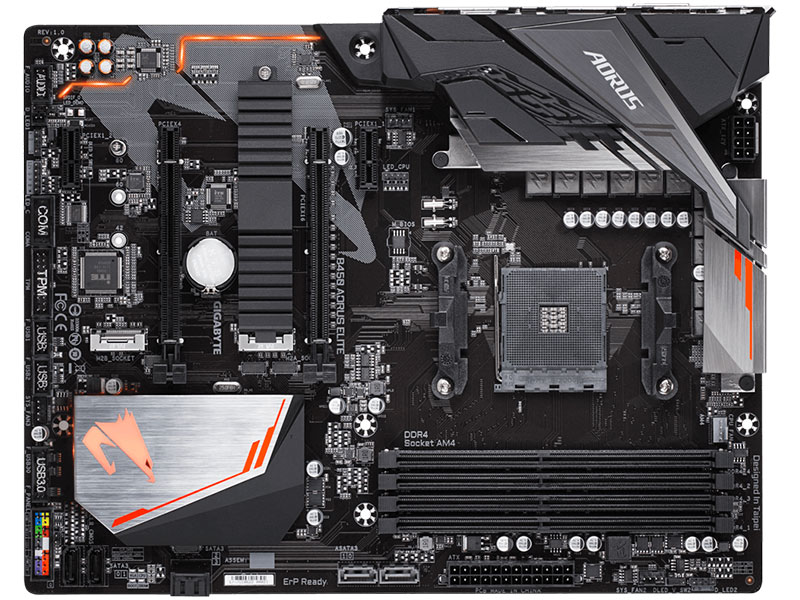

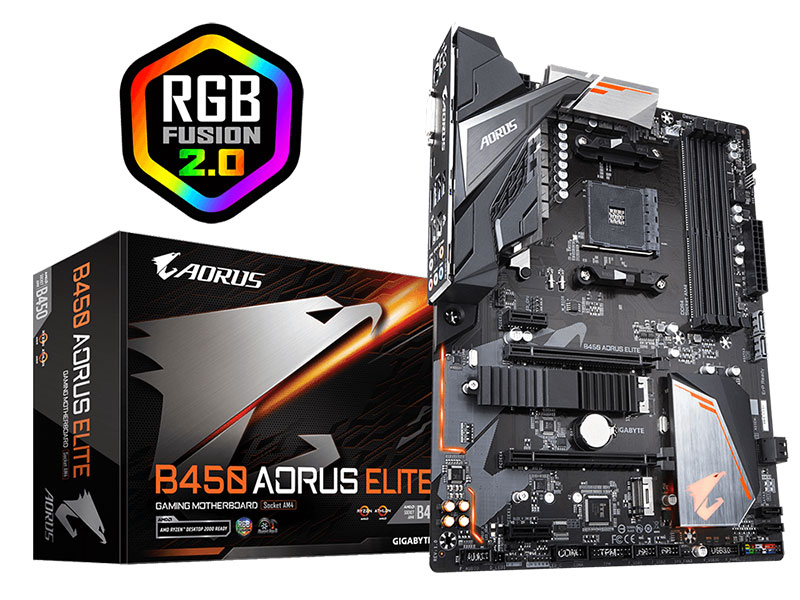

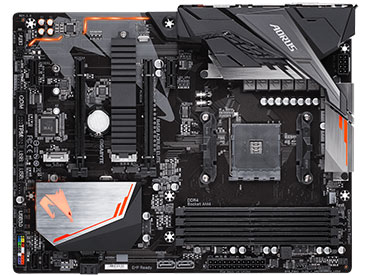

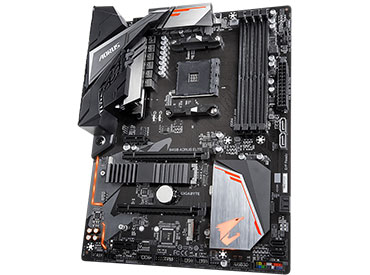

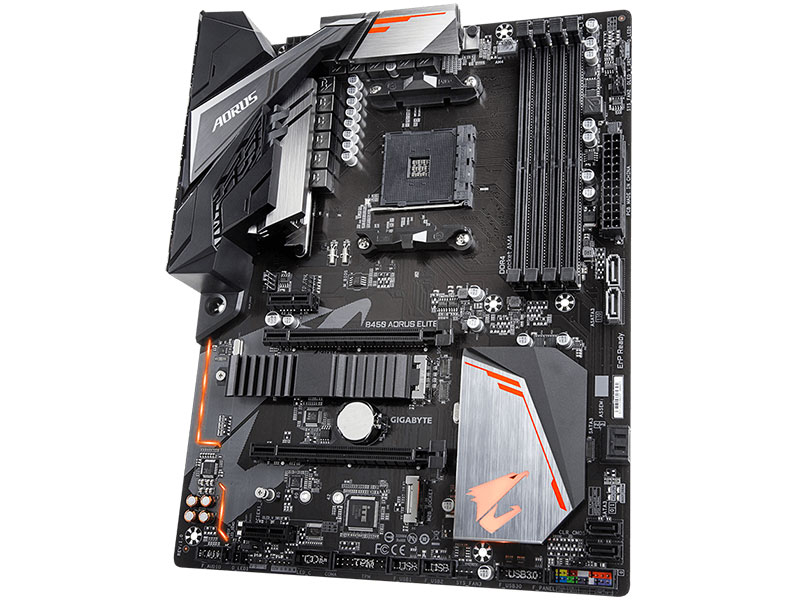

Marca: Gigabyte
Modelo: B450 AORUS ELITE (rev. 1.0)
Socket: AM4
Chipset: AMD B450
Soporte de Procesadores:
- AMD Ryzen™ 2da generación
- AMD Ryzen™ con gráficos Radeon™ Vega
- AMD Athlon™ con gráficos Radeon™ Vega
- AMD Ryzen™ 1ra generación

Memoria:
4 x DDR4 DIMM, Max.64GB
Soporte para módulos de memoria DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Integrados en los procesadores AMD Ryzen™/Athlon™ con Gráficos Radeon™ Vega:
- 1 x DVI-D Con resolución máxima de 1920 x 1200 @ 60 Hz
- 1 x HDMI Con resolución máxima de 4096 x 2160 @ 60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
Máxima memoria compartida: 16 GB

Puertos de expansión:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Almacenamiento:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Soporta Raid 0, 1, 10

Tecnología Multi-Gráficos:
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio:
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

USB:
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Características Especiales:

Soporte para APP Center:
@BIOS
3D OSD
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
Smart Survey
System Information Viewer
USB Blocker
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit
Windows® 7 64-bit *
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

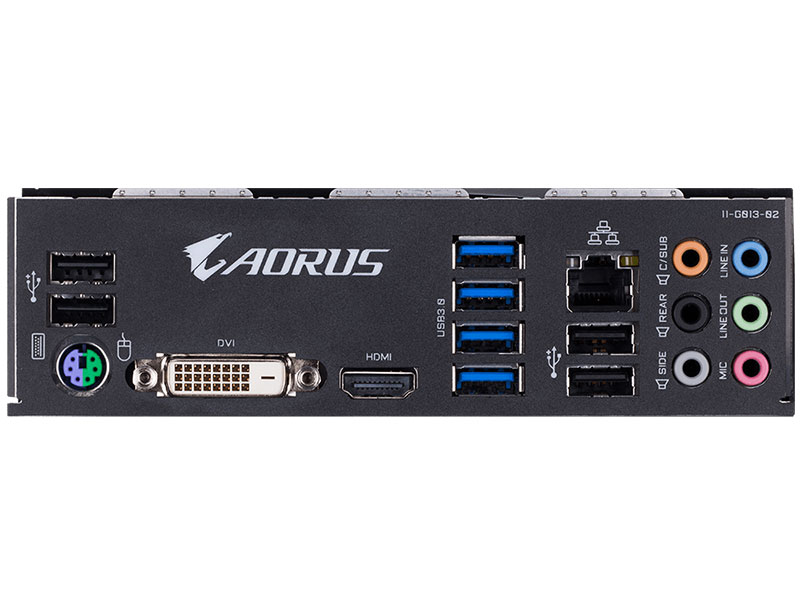

Conectores:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks

Tamaño:
ATX Form Factor
30.5cm x 23.5cm

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
