Marca: Gigabyte

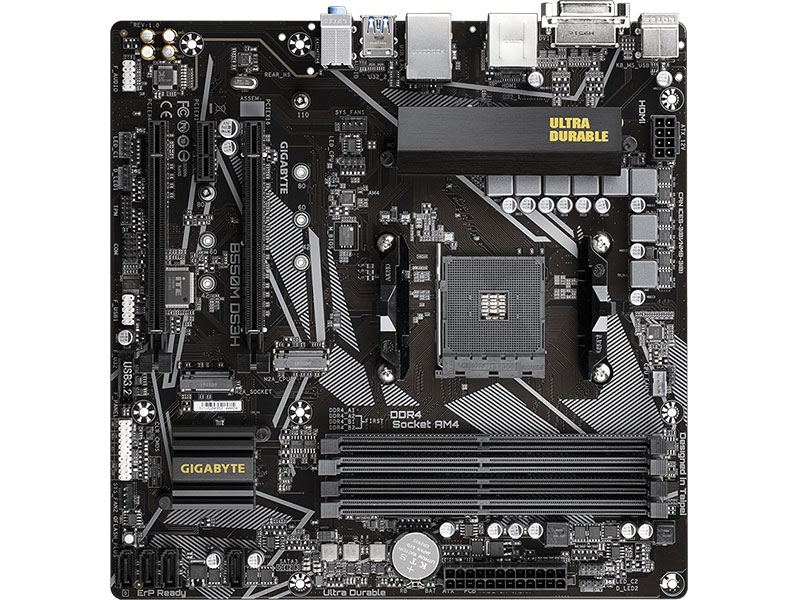

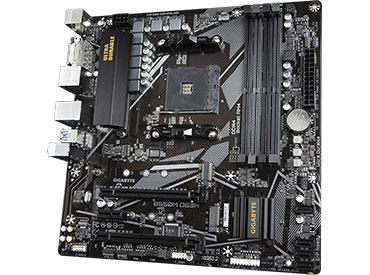

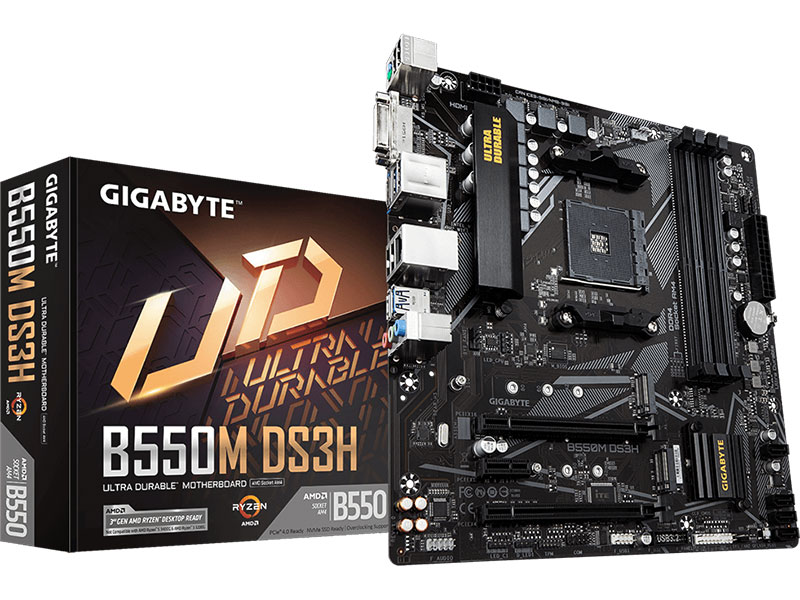

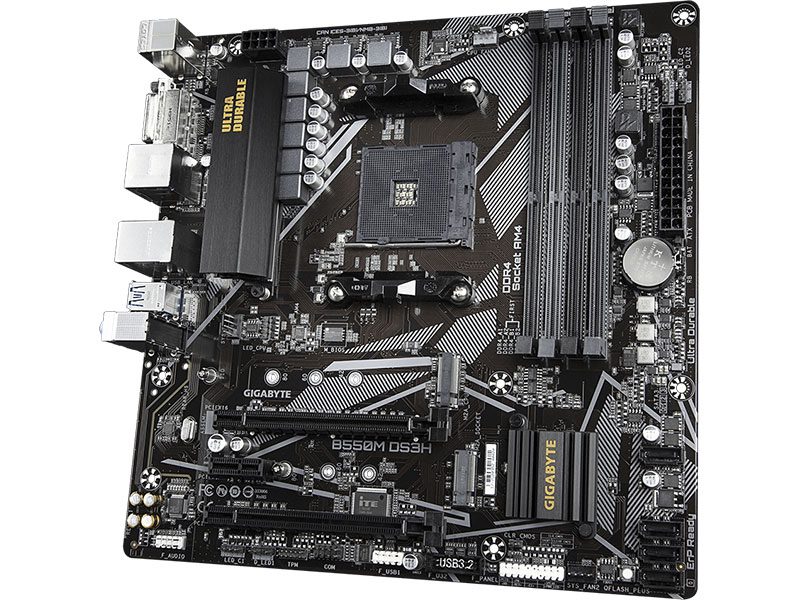

Modelo: B550M DS3H (rev. 1.x)
Socket: AM4
Chipset: AMD B550
Soporte de Procesadores:
- AMD Ryzen™ 5000 Series
- 3rd Gen Ryzen™
- 3rd Gen Ryzen™ with Radeon™ Graphics

Memoria:
- 4 x DDR4 DIMM sockets soportando hasta 128 GB (32 GB single DIMM capacity)
- AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™:
Soporte para módulos de memoria DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Soporte para módulos de memoria DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Integrados en los procesadores de 3era Gen AMD Ryzen™ con Gráficos Radeon™:
- 1 x DVI-D Con resolución máxima de 1920 x 1200 @ 60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI Con resolución máxima de 4096 x 2160 @ 60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Máxima memoria compartida: 16 GB

Puertos de expansión:
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU::
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
- 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
- 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Almacenamiento:
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
- 4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

USB:
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN:
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Audio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Características Especiales:

Soporte para APP Center:
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Soporte para Q-Flash Plus
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit

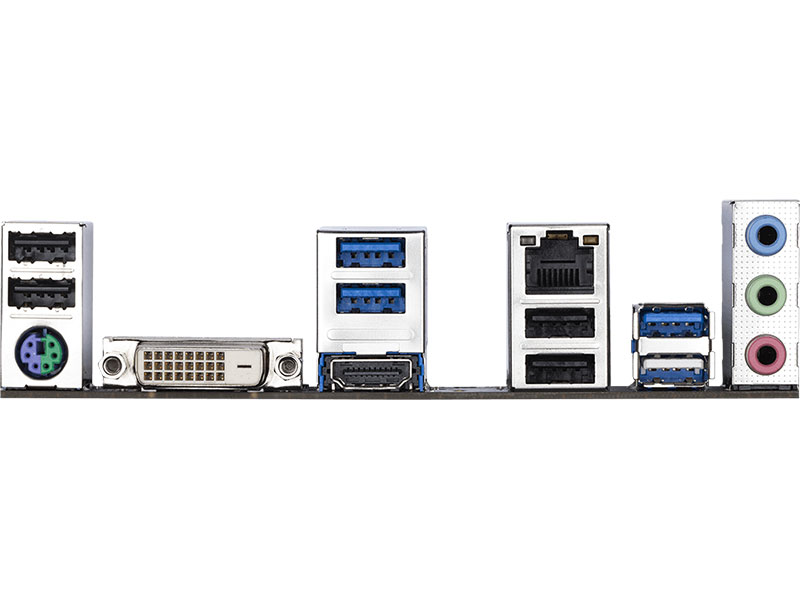

Conectores:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Tamaño:
Micro ATX Form Factor
24.4cm x 24.4cm

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
