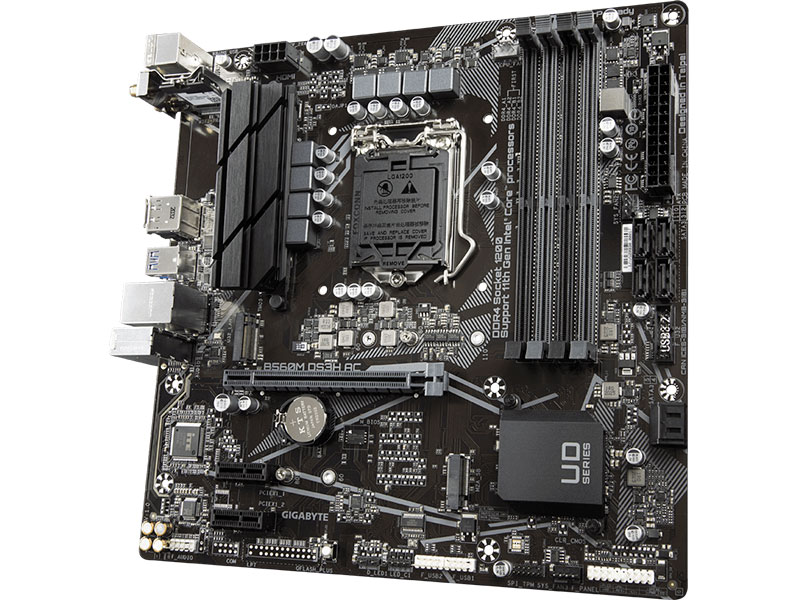

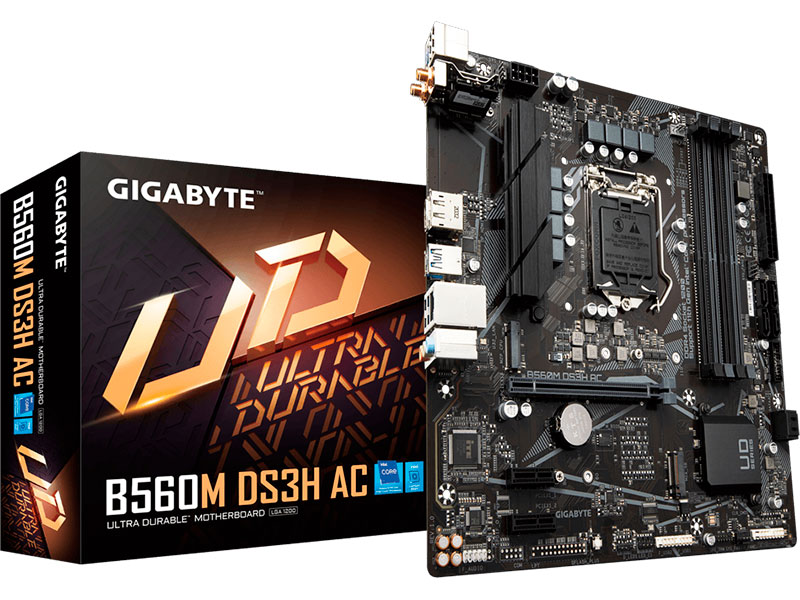

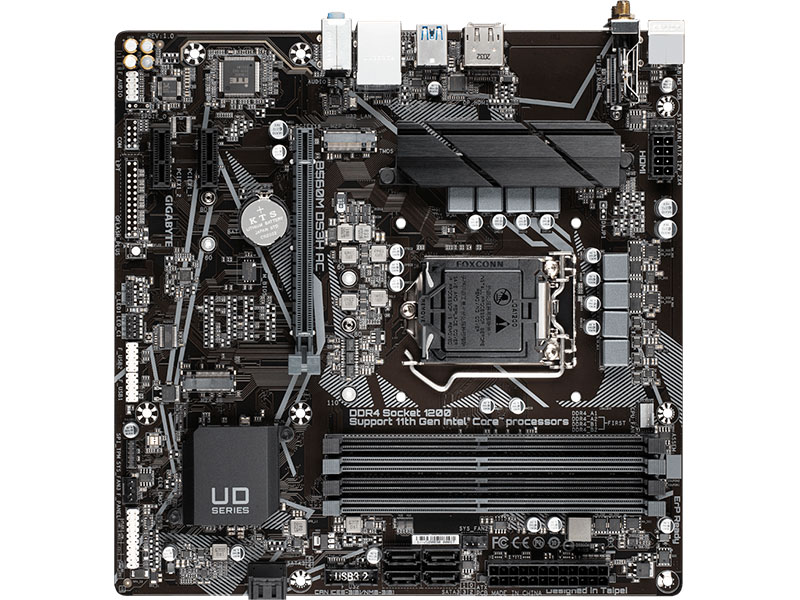

Mother Gigabyte B560M DS3H AC Socket 1200

  • $ 20.116,00
  • 3 Años de Garantía
Cantidad:

Tarjetas de crédito

    Banco:

    Otros medios

      Marca: Gigabyte
      Modelo: B560M DS3H AC (rev 1.0)
      Socket: Intel® Socket 1200
      Chipset: Intel® B560 Express
      Soporte de Procesadores:
      - Intel® 11ᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5
      - Intel® 10ᵐᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron®*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.

      Memoria:
      - Procesadores Intel® Core™ i9/i7/i5 11ᵃ generación:
      Soporte para módulos de memoria DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
      - Procesadores Intel® Core™ i9/i7 10ᵐᵃ generación:
      Soporte para módulos de memoria DDR4 2933/2666/2400/2133 MHz
      - Procesadores Intel® Core™ i5/i3/Pentium®/Celeron® 10ᵐᵃ generación:
      Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
      - 4 x DDR4 DIMM, Max. 128GB (32 GB single DIMM capacity)
      - Arquitectura de memoria Dual Channel
      - Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
      - Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
      - Soporte para módulos de memoria Extreme Memory Profile (XMP)

      Gráficos:
      Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
      - 1x DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
      - 1x HDMI con una resolución máxima de 4096 x 2160 @ 30 Hz
      * Soporte para HDMI 1.4, DisplayPort 1.2 y HDCP 2.3.

      Puertos de expansión:
      - 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
      - 2 x PCI Express x1 slots
      (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

      Almacenamiento:
      CPU:
      - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
      Chipset:
      - 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
      - 6 x SATA 6Gb/s connectors
      - Intel® Optane™ Memory Ready
      (Note) Supported by 11th Generation processors only.
      * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.

      Wireless Communication module:
      - WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
      - BLUETOOTH 4.2
      - Support for 11ac wireless standard and up to 433 Mbps data rate

      LAN:
      - Realtek® GbE LAN chip (1000/100 Mbit)

      Audio:
      - Realtek® Audio CODEC
      - Audio de alta definición
      - 2/4/5.1/7.1-channel

      USB:
      Chipset:
      - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
      - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
      - 4 x USB 2.0/1.1 ports available through the internal USB headers
      Chipset+USB 2.0 Hub:
      - 2 x USB 2.0/1.1 ports on the back panel

      Características Especiales:

      - Soporte para APP Center:
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
      - Soporte para Q-Flash Plus
      - Soporte para Q-Flash
      - Soporte para Xpress Install

      Soporte Sistema Operativo:
      - Windows 10 64-bit

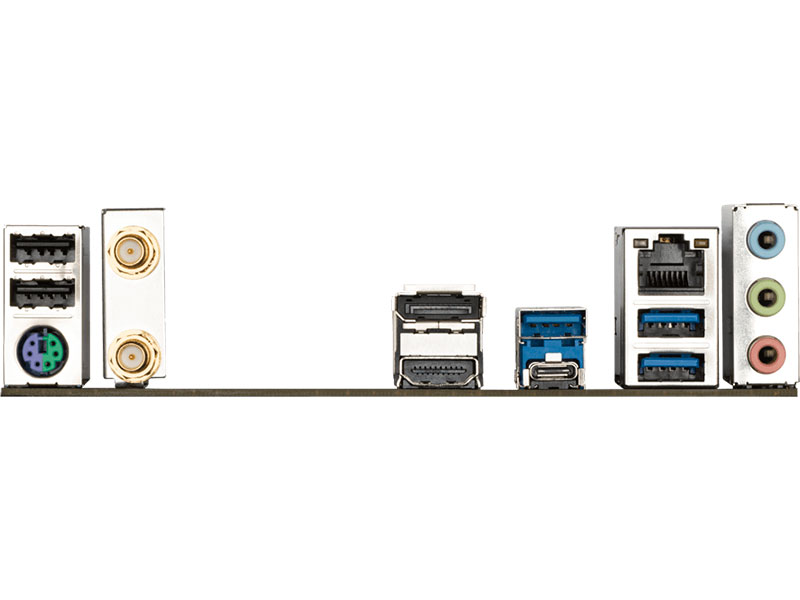

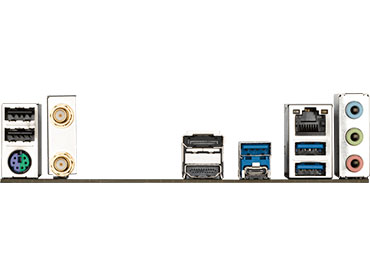

      Conectores:
      2 x USB 2.0/1.1 ports
      1 x PS/2 keyboard/mouse port
      2 x SMA antenna connectors (1T1R)
      1 x DisplayPort
      1 x HDMI port
      3 x USB 3.2 Gen 1 ports
      1 x USB Type-C® port, with USB 3.2 Gen 1 support
      1 x RJ-45 port
      3 x audio jacks

      Tamaño:
      Micro ATX Form Factor
      24.4cm x 24.4cm

      BIOS:
      1 x 256 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

      Incluye:
      User's manual
      I/O Shield
      2 x SATA 6Gb/s cable(s)
      Two antennas
      M.2 screws
      Motherboard driver disk

      Garantía: 36 Meses
