Marca: Gigabyte
Modelo: B660M DS3H DDR4 (rev 1.0)
Socket: LGA1700
Chipset: Intel® B660 Express
Soporte de Procesadores:
- Intel® 12ᵃ generación: Procesadores Intel® Core™, Pentium® Gold y Celeron®

Memoria:
- Soporte para módulos de memoria DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1x D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
- 1x HDMI con una resolución máxima de 4096 x 2160 @ 60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1x DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1x DisplayPort con una resolución máxima de 4096 x 2304 @ 60 Hz
* Support for DisplayPort 1.2 version

Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
- 2 x PCI Express x1 slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)

Almacenamiento:
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
- Soporte para RAID 0, RAID 1, RAID 5 y RAID 10
- Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.

LAN:
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio:
- Realtek® audio CODEC
- Audio de alta definición
- 2/4/5.1/7.1-channel

USB:
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Características Especiales:

- Soporte para APP Center:
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
- Soporte para Q-Flash Plus
- Soporte para Q-Flash
- Soporte para Xpress Install

Soporte Sistema Operativo:
- Windows 11 64-bit
- Windows 10 64-bit

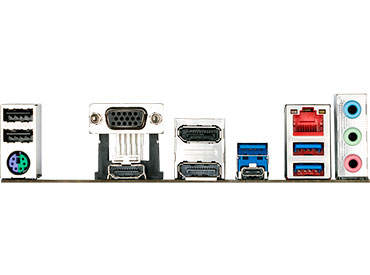

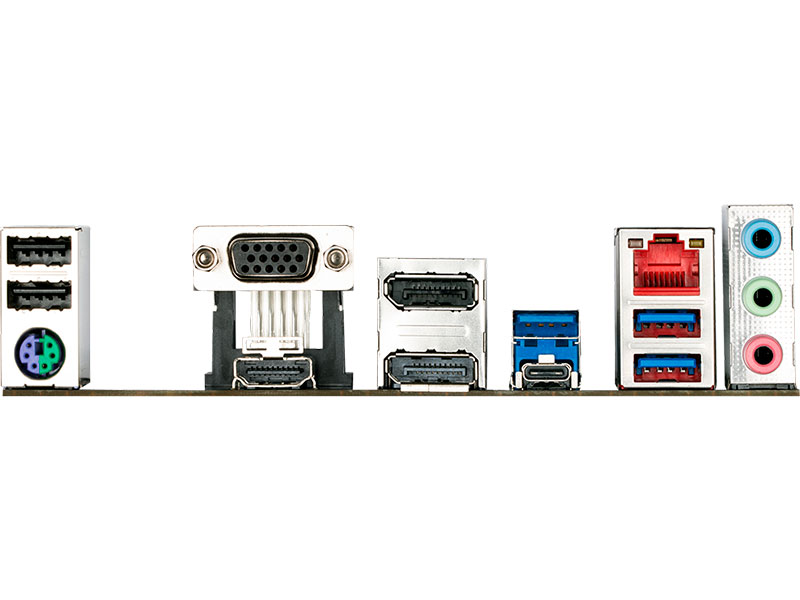

Conectores:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x DisplayPorts
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Conectores Internos de E/S:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
* All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Tamaño:
Micro ATX Form Factor
24.4cm x 24.4cm

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
M.2 screws
I/O Shield
2 x SATA 6Gb/s cable(s)

Garantía: 36 Meses
