Marca: Gigabyte
Modelo: GA-990FXA-UD3
Revisión: 1.2

SOPORTE DE PROCESADORES:
AM3+ : Procesadores AMD AM3+ FX, AM3 Phenom™ II y AM3 Athlon™ II

CHIPSET:
North Bridge: AMD 990FX
South Bridge: AMD SB950

MEMORIA DEL SISTEMA:
4 x sockets 1.5V DDR3 DIMM que admiten hasta 32 GB de memoria del sistema
Arquitectura de memoria Dual Channel
Soporte para módulos de memoria DDR3 2000(O.C.)/1866/1600/1333/1066 MHz

SLOTS DE EXPANSIÓN:
2 x PCI Express x16, a x4 (PCIEX4)
2 x PCI Express x16 a x16 (PCIEX16)
2 x PCI Express x1 slot (Todas las ranuras PCI Express conforman el estándar PCI Express 2.0.)
1 x PCI Slot

SATA:
Soporte de RAID 0, RAID 1, RAID5, RAID 10 y JBOD
6 x conectores SATA 6Gb/s (SATA3 0~6) con capacidad para 6 dispositivos SATA 6Gb/s (South Bridge)
Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD
JMicron JMB363 chip:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 3Gb/s devices
Support for RAID 0, RAID 1, and JBOD

AUDIO:
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF Out

LAN ONBOARD:
1 x Realtek RTL8111E chip (10/100/1000 Mbit)

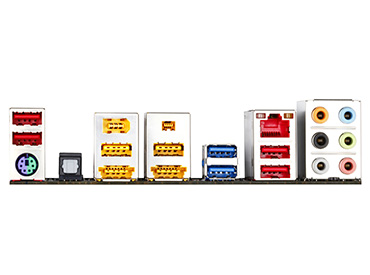

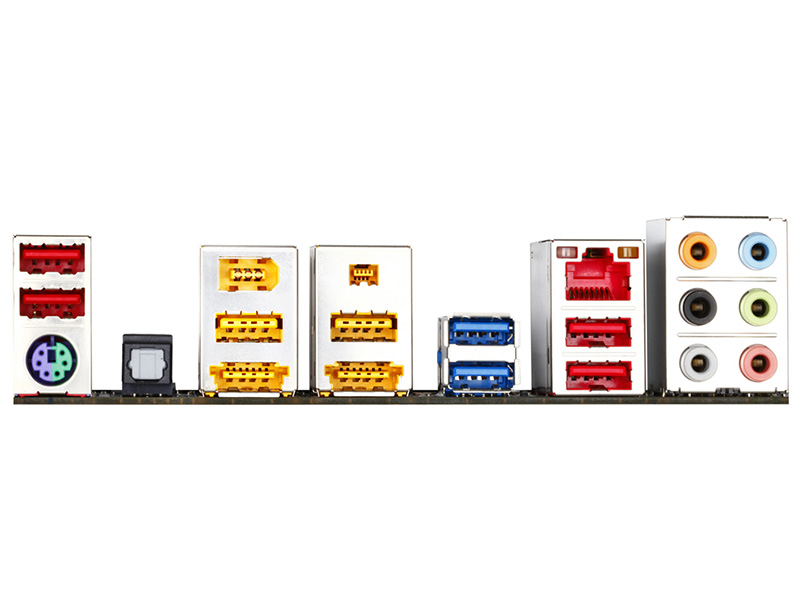

Panel Trasero de Conectores de E/S:
1 x PS/2 keyboard/mouse port
1 x optical S/PDIF Out connector
6 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
2 x IEEE 1394 ports
2 x eSATA/USB Combo connectors
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Conectores Internos E/S:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x USB 3.0/2.0 header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x clearing CMOS jumper

DIMENSIONES:
ATX, 305mm x 244mm

Incluye: Manual, CD de Drivers y Cables
Garantía:36 meses
