Marca: Gigabyte

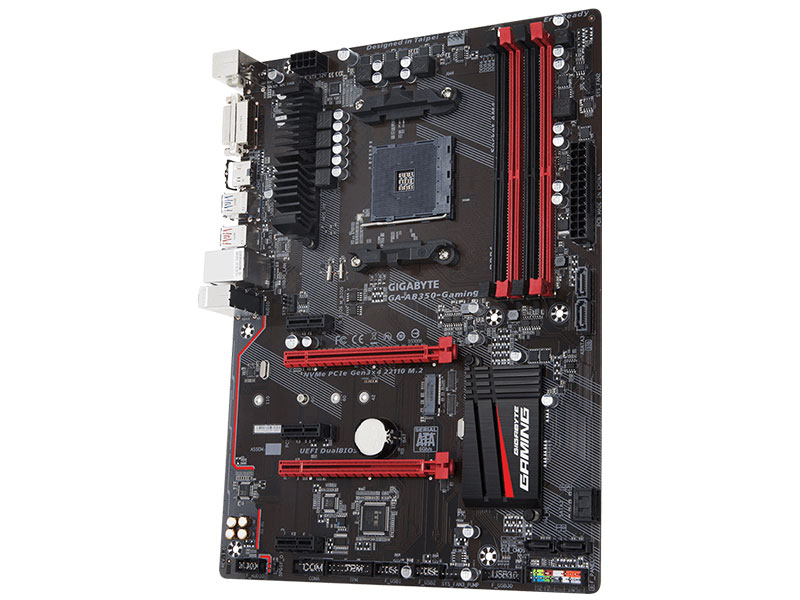

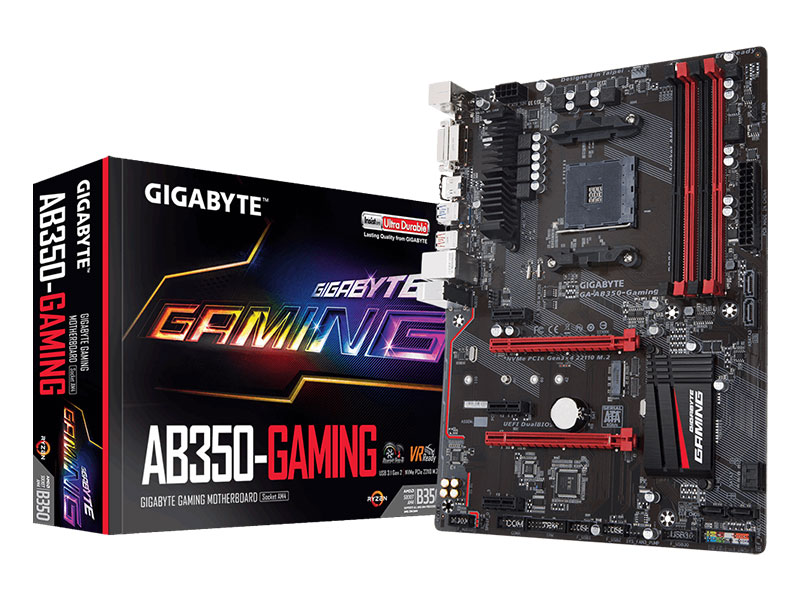

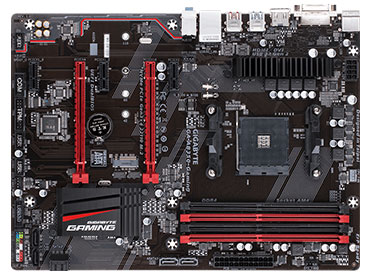

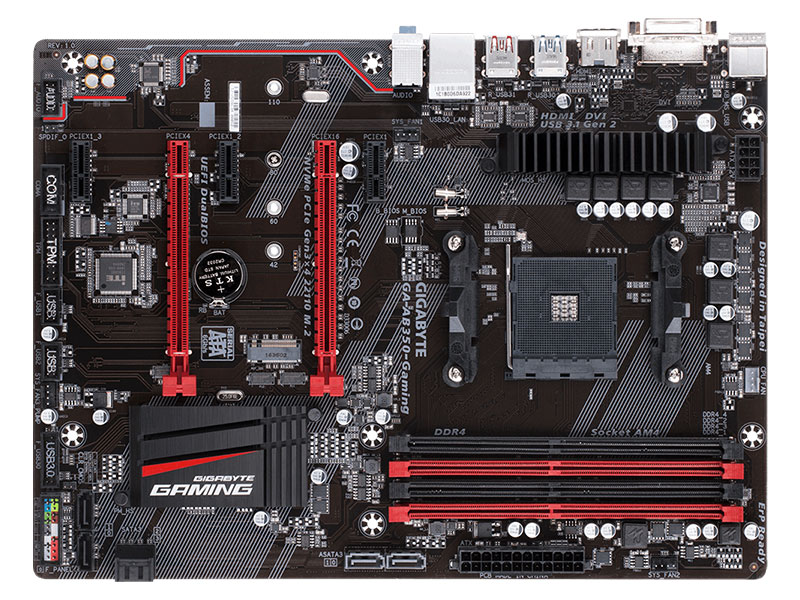

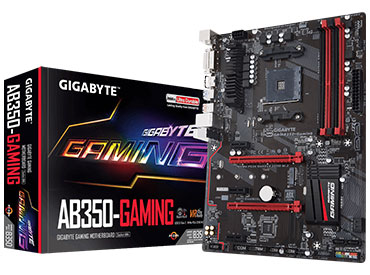

Modelo: GA-AB350-Gaming (rev. 1.0)
Socket: AM4 (AMD Ryzen™)
Chipset: AMD B350
Soporte de Procesadores:
- AMD Ryzen™ processor
- AMD 7th Generation A-series/ Athlon™ processor

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz
Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel

Gráficos:
Integrated Graphics Processor:
- 1 x DVI-D supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Máxima memoria compartida: 2 GB

Puertos de expansión:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Tecnología Multi-Gráficos:
Soporte para 2-Way AMD CrossFire™ Technology

Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
6 x SATA 6Gb/s (SATA3 0~5)
Soporta Raid 0, 1, 10

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio:
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

USB:
Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports (available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Características Especiales:

Soporte para APP Center:
@BIOS
3D OSD
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC UP 2
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit
Windows® 7 64-bit

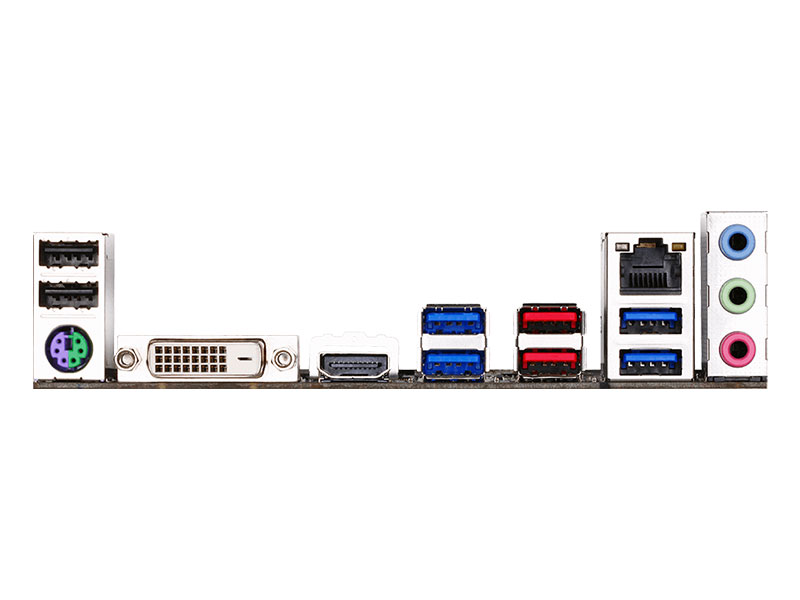

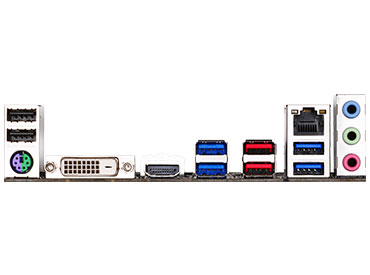

Conectores:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
2 x USB 2.0/1.1 port
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Tamaño:
ATX Form Factor
30.5cm x 22.5cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
