Marca: Gigabyte
Modelo: GA-AB350N-Gaming WIFI (rev. 1.0)
Socket: AM4 (AMD Ryzen™/7th Gen A-series)
Chipset: AMD B350
Soporte de Procesadores:
- AMD Ryzen™ 2nd Generation / Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics / Ryzen™ 1st Generation / 7th Generation A-series / Athlon X4 Processors

Memoria:
2 x DDR4 DIMM, Max. 32GB
Soporte para módulos de memoria DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz
Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 *
* ECC is only supported with AMD Ryzen™ and Athlon™ of PRO-series CPU.
Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor:
- 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz
- 1 x HDMI port supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Máxima memoria compartida: 2 GB

Puertos de expansión:
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Almacenamiento:
1 x M.2 Socket 3 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4*/x2 SSD support)
* Actual support may vary by CPU.
4 x SATA 6Gb/s connectors
Soporta Raid 0, 1, 10

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module:
- Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR
- Support for 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.

Audio:
Realtek® ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

USB:
Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Integrated in the CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Características Especiales:

Soporte para APP Center:
@BIOS
3D OSD
RGB Fusion
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit
Windows® 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

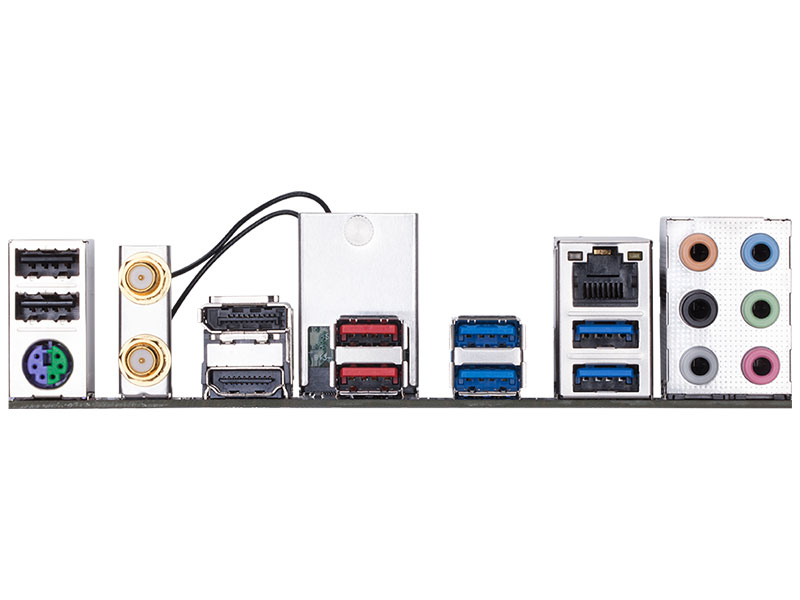

Conectores:
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors
1 x DisplayPort
1 x HDMI port
2 x USB 2.0/1.1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
4 x USB 3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Tamaño:
Mini-ITX Form Factor
17.0cm x 17.0cm

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

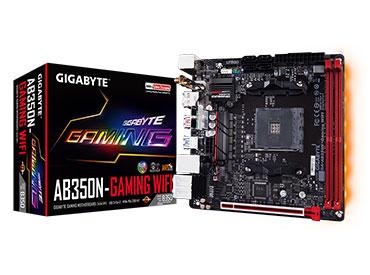

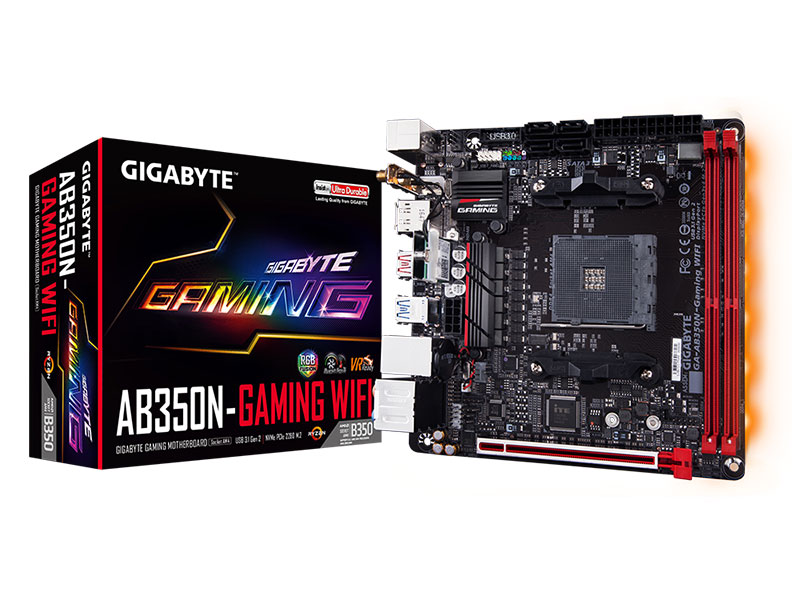

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
