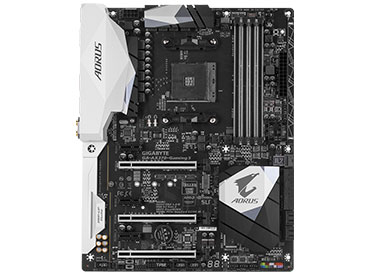

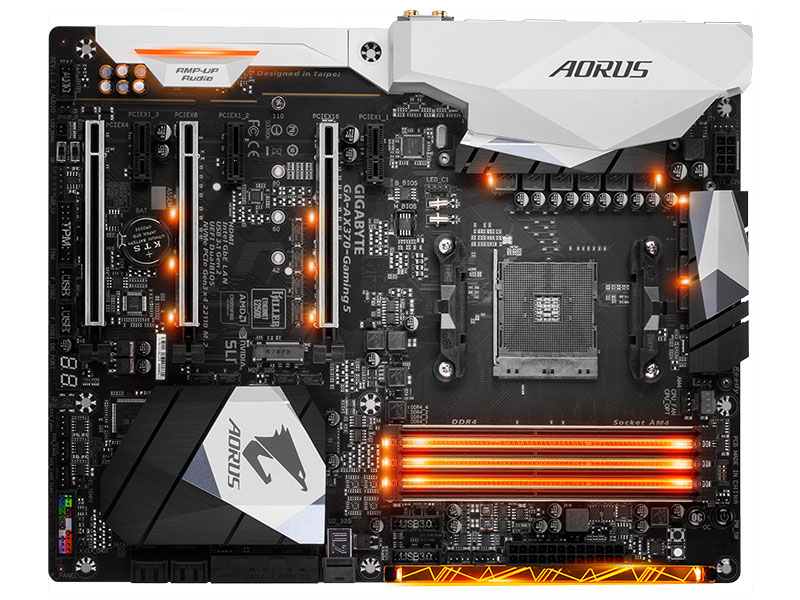

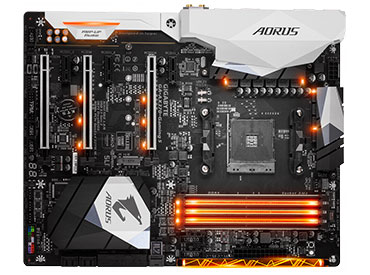

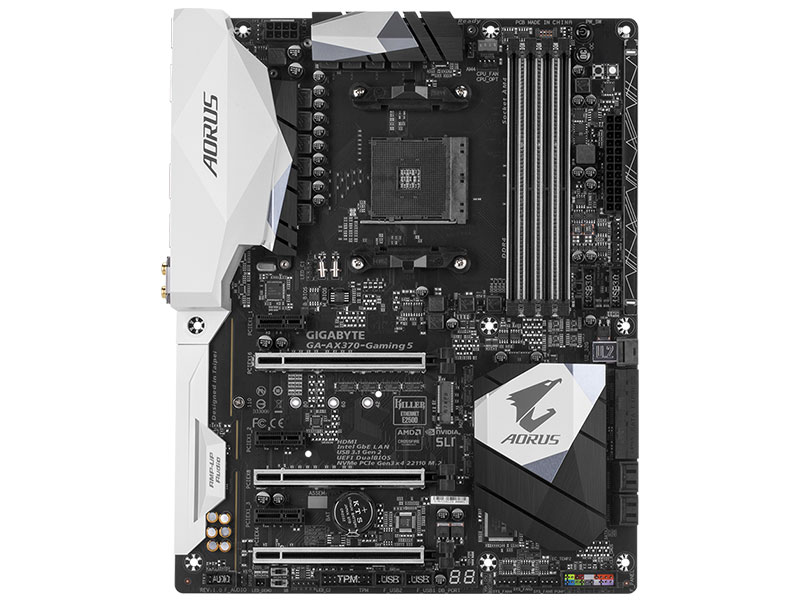

Marca: Gigabyte
Modelo: GA-AX370-Gaming 5 (rev. 1.0)
Socket: AM4
Chipset: AMD X370
Soporte de Procesadores:
- AMD Ryzen™ processor
- AMD 7th Generation A-series/ Athlon™ processor

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz
* Support for higher than DDR4 2667 MHz may vary by CPU.
Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8
Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Soporte para módulos de memoria Extreme Memory Profile (XMP)
Arquitectura de memoria Dual Channel

Gráficos:
Integrated Graphics Processor:
- 1 x HDMI port supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Máxima memoria compartida: 2 GB

Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* Actual support may vary by CPU.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* Actual support may vary by CPU.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with all of the PCI Express x1 slots. The PCIEX4 slot operates at up to x4 mode when all of the PCI Express x1 slots are empty.
- 3 x PCI Express x1 slots
* All of the PCI Express x1 slots share bandwidth with the PCIEX4 slot. The PCIEX4/PCIEX1_2/PCIEX1_3 slot operates at up to x1 mode when the PCIEX1_1 slot is populated; the PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated.
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Tecnología Multi-Gráficos:
Soporte para NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Soporte para AMD Quad-GPU CrossFire™ and 3-Way AMD CrossFire™ technologies

Almacenamiento:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
* Actual support may vary by CPU.
- 1 x U.2 connector
* When the U.2 connector is populated, the M.2 connector becomes unavailable.
- 2 x SATA Express connectors
- 8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

LAN:
1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
1 x Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2)
* Teaming is not supported.

Audio:
2 x Realtek® ALC1220 codecs
Soporte para Sound Blaster X-Fi MB5
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

USB:
Chipset+ASMedia® USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0/1.1 ports (available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Características Especiales:

Soporte para APP Center:
@BIOS
3D OSD
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC UP 2
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit
Windows® 7 64-bit

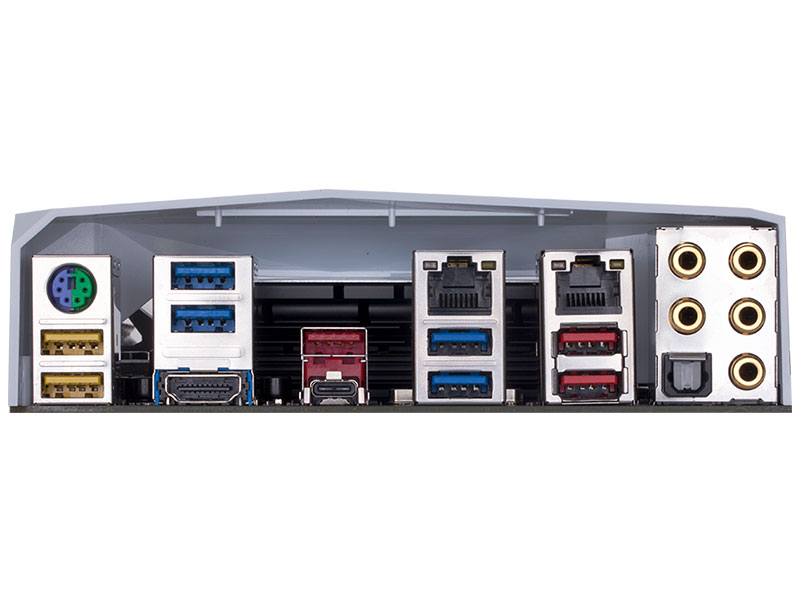

Conectores:
1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3 x USB 3.1 Gen 2 Type-A ports (red)
6 x USB 3.1 Gen 1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

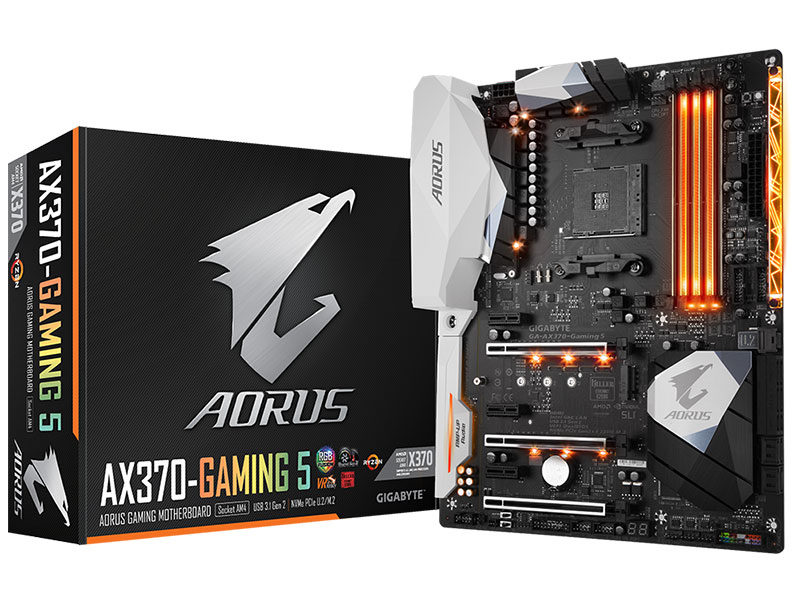

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
