Marca: Gigabyte

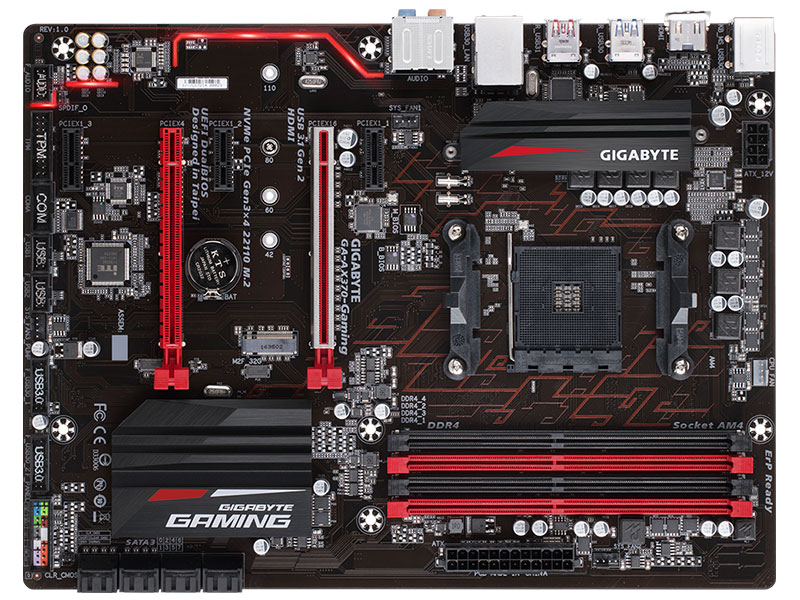

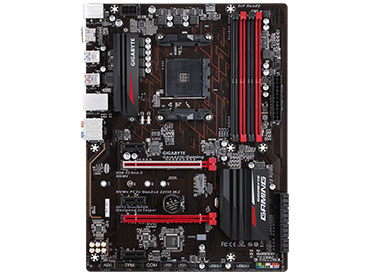

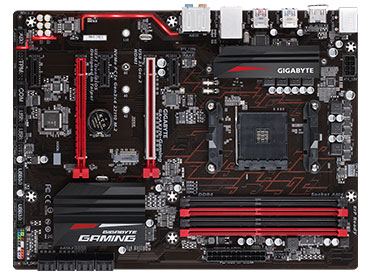

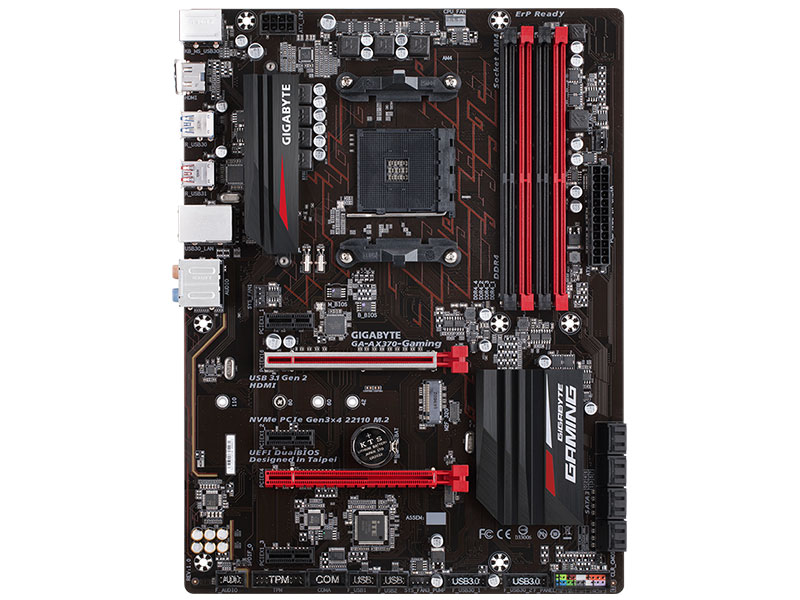

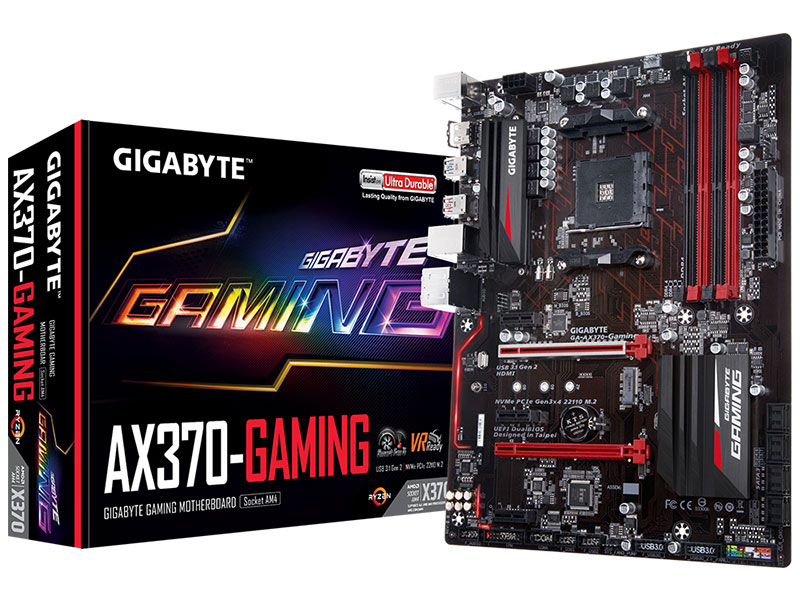

Modelo: GA-AX370-Gaming (rev. 1.x)
Socket: AM4
Chipset: AMD X370
Soporte de Procesadores:
- AMD Ryzen™ processor
- AMD 7th Generation A-series/ Athlon™ processor

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz
* Support for higher than DDR4 2667 MHz may vary by CPU.
Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Soporte para módulos de memoria Extreme Memory Profile (XMP)
Arquitectura de memoria Dual Channel

Gráficos:
Integrated Graphics Processor:
- 1 x HDMI port supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Máxima memoria compartida: 2 GB

Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* Actual support may vary by CPU.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 3 x PCI Express x1 slots
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2/PCIEX1_3 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_2 and PCIEX1_3 slots are empty.
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

Tecnología Multi-Gráficos:
Soporte para AMD Quad-GPU CrossFire™ y 2-Way AMD CrossFire™ technologies

Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
* Actual support may vary by CPU.
8 x SATA 6Gb/s connectors
Soporta Raid 0, 1, 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

LAN:
Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio:
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

USB:
ASMedia® USB 3.1 Gen 2 Controller:
2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
Chipset:
6 x USB 3.1 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 2.0/1.1 ports available through the internal USB headers
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Características Especiales:

Soporte para APP Center:
@BIOS
3D OSD
Ambient LED
AutoGreen
BIOS Setup
Cloud Station
Color Temperature
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit
Windows® 7 64-bit

Conectores:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 3.1 Gen 2 Type-A ports (red)
1 x USB 2.0/1.1 port
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Tamaño:
ATX Form Factor
30.5cm x 23.0cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk

Garantía: 36 Meses
