Marca: Gigabyte
Modelo: GA-B250N Phoenix-WIFI (rev. 1.0)
Socket: Intel® Socket 1151
Chipset: Intel® B250 Express
Soporte de Procesadores:
- Intel® 7ma y 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®

Características Principales:
- Supports 7th/6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
- 802.11ac Dual Band 867Mbps wireless supports MU-MIMO and BT4.2
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- RGB FUSION LED Light Show design
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- GIGABYTE UEFI DualBIOS™
- APP Center Including Cloud Station™ Utility

Memoria:
2 x DDR4 DIMM, Max. 32GB
Soporte para módulos de memoria DDR4 2400/2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
- 1 x HDMI port supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Máxima memoria compartida: 1 GB

Audio:
Realtek® ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN:
Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module:
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.

Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16
(El slot PCI Express conforma con el estandar PCI Express 3.0.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Almacenamiento:
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
4 x SATA 6Gb/s

USB:
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Características Especiales:

Soporte para APP Center:
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Support for Windows 10 64-bit (for 7th Generation Intel® processors)
Support for Windows 10 64-bit/Windows 8.1 64-bit/Windows 7 32-bit/64-bit (for 6th Generation Intel® processors)

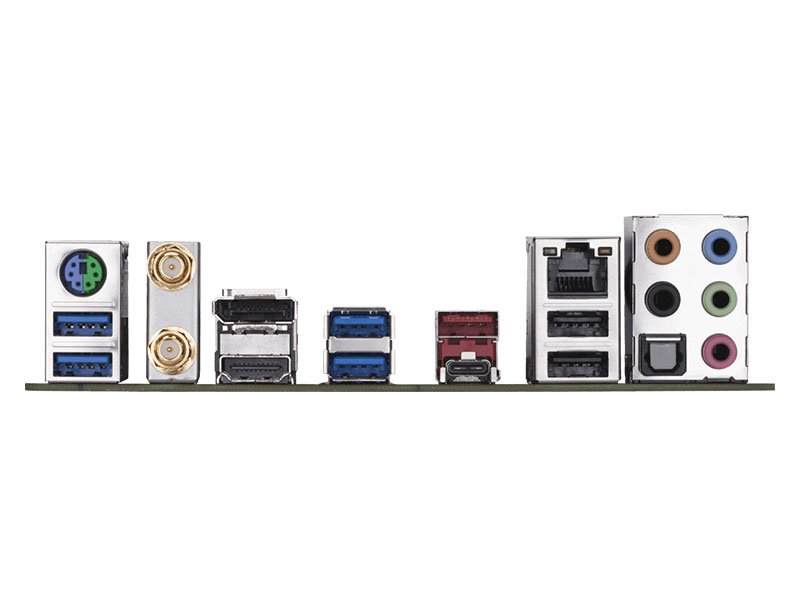

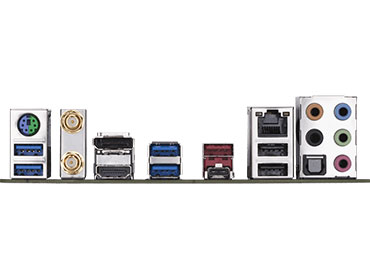

Conectores:
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Tamaño:
Mini-ITX Form Factor
17.0cm x 17.0cm

BIOS:
2 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk
Quick Installation Guide

Garantía: 36 Meses
