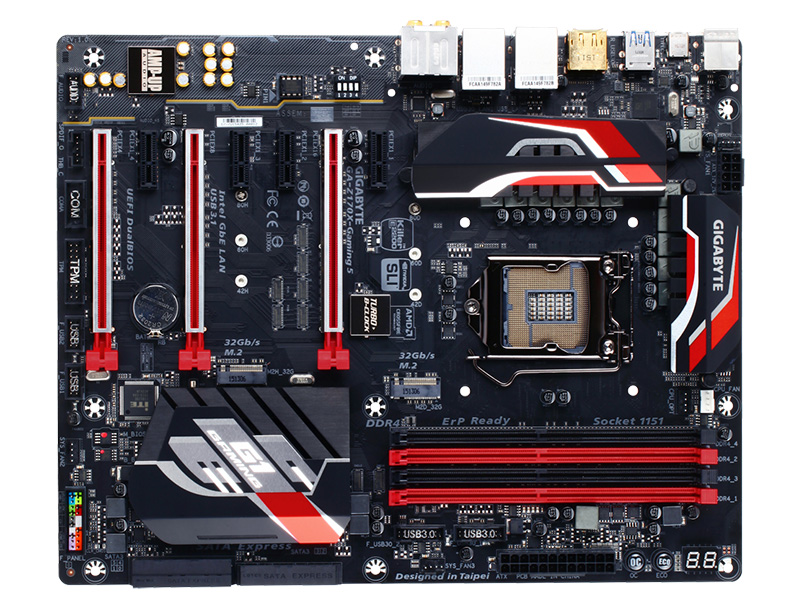

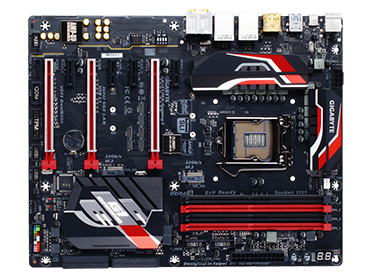

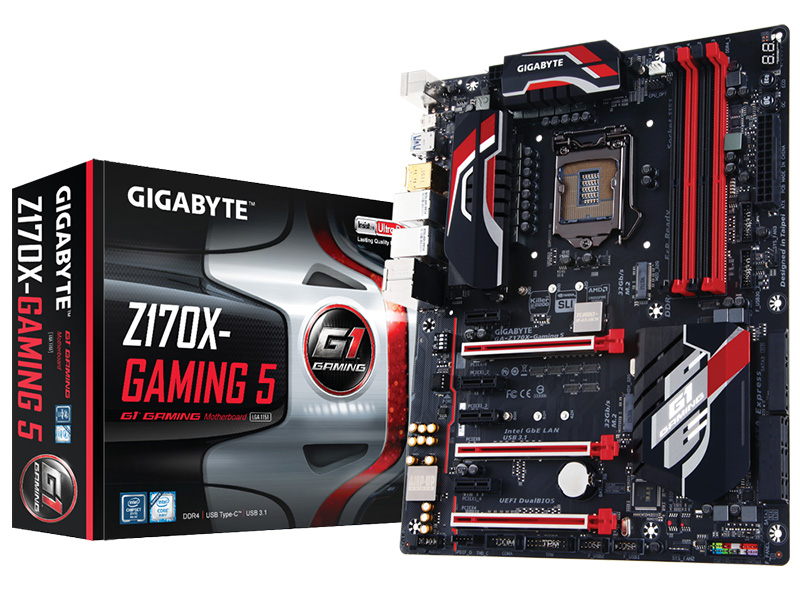

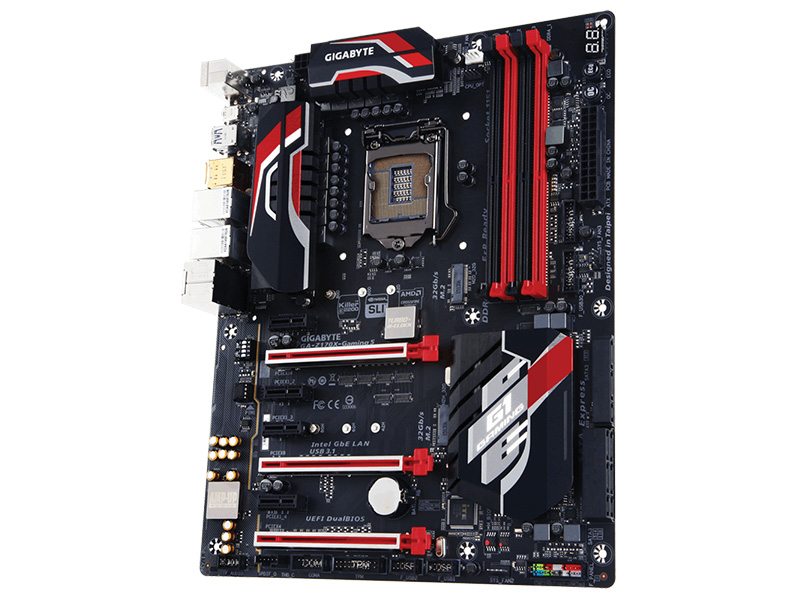

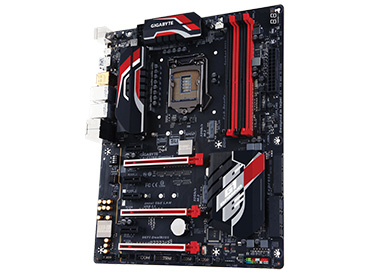

Mother Gigabyte GA-Z170X-GAMING 5 Socket 1151
Este producto no está disponible.
Encontrá productos similares clickeando acá.
Marca: Gigabyte
Modelo: GA-Z170X-GAMING 5
Socket: Intel® Socket 1151
Chipset: Intel® Z170 Express
Soporte de Procesadores:
- Intel® 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0
Memoria:
4 x DDR4 DIMM, Max. 64GB
DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1 x DisplayPort con una resolución máxima de 4096x2304@60 Hz
- 1 x HDMI con una resolución máxima de 4096x2160@24 Hz
Máxima memoria compartida: 1024 MB
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Puertos de expansión:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
4 x PCI Express x1 slots
(Todos los slots PCI Express conforman el estandar PCI Express 3.0.)
Tecnología Multi-Gráficos:
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
Almacenamiento:
Chipset:
2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
3 x SATA Express connectors
6 x SATA 6Gb/s connectors
Soporta Raid 0, 1, 5, 10
Soporta Intel® Smart Response Technology
LAN:
1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
1 x Killer E2201 chip (10/100/1000 Mbit) (LAN2)
Audio:
Realtek® ALC1150 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
USB:
Chipset:
7 x USB 3.0/2.0 ports (3 puertos en panel posterior, 4 puertos mediante el header USB interno)
6 x USB 2.0/1.1 ports (4 puertos en panel posterior, 2 puertos mediante el header USB interno)
Chipset+GENESYS LOGIC USB 2.0 Hub:
2 x USB 2.0/1.1 ports (mediante el header USB interno)
Controlador Chipset+Intel® USB 3.1:
1 x USB Type-C™ port en panel posterior, con soporte USB 3.1
1 x USB 3.1 Type-A port (red) en panel posterior
Características Especiales:
Soporte para APP Center:
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Soporte para Q-Flash
Soporte para Smart Switch
Soporte para Xpress Install
Soporte Sistema Operativo:
Windows 10/8.1 64-bit
Windows 7 32-bit/64-bit

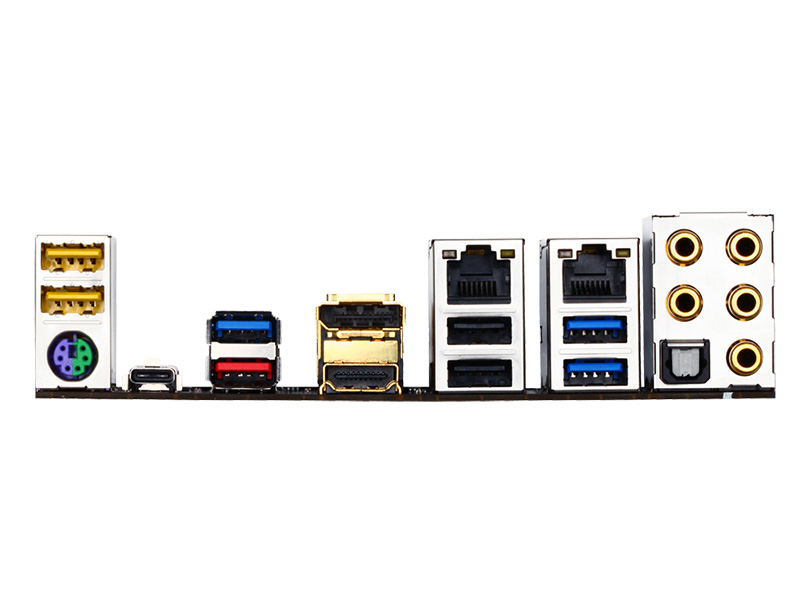

Conectores:
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ Port, con soporte USB 3.1
1 x USB 3.1 Type-A port (red)
3 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Tamaño:
ATX Form Factor
30.5cm x 24.4cm
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Incluye:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
Motherboard driver disk
1 x 2-Way SLI bridge connector
Quick Installation Guide
1 x G Connector
Garantía: 36 Meses
