Marca: Gigabyte
Modelo: GA-Z270X-Gaming 5 (rev. 1.0)
Socket: Intel® Socket 1151
Chipset: Intel® Z270 Express
Soporte de Procesadores:
- Intel® 7ma / 6ta generación: Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
- CPUs Intel® 14 nm
- Intel® Turbo Boost Technology 2.0

Memoria:
4 x DDR4 DIMM, Max. 64GB
Soporte para módulos de memoria DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz
Soporte para módulos de memoria ECC UDIMM 1Rx8/2Rx8 (operate in non-ECC mode)
Soporte para módulos de memoria non-ECC UDIMM 1Rx8/2Rx8/1Rx16
Arquitectura de memoria Dual Channel
Compatible con Intel® Extreme Memory Profile (XMP)

Gráficos:
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
- 1 x HDMI port supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Máxima memoria compartida: 1 GB

Puertos de expansión:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
3 x PCI Express x1 slots
(Todos los slots PCI Express conforman el estandar PCI Express 3.0.)

Tecnología Multi-Gráficos:
Soporte para NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
Soporte para AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies

Almacenamiento:
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
1 x U.2 connector
3 x SATA Express connectors
6 x SATA 6Gb/s
Soporta Raid 0, 1, 5, 10

LAN:
1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
1 x Killer™ E2500 LAN chip (10/100/1000 Mbit) (LAN2)
* Teaming is not supported.

Audio:
Realtek® ALC1220 codec
Soporte para Sound Blaster X-Fi MB5
TI NE5532 operational amplifier
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

USB:
Chipset:
8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+ASMedia® ASM2142 USB 3.1 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Características Especiales:

Soporte para APP Center:
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner
Soporte para Q-Flash
Soporte para 3TB+ Unlock
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

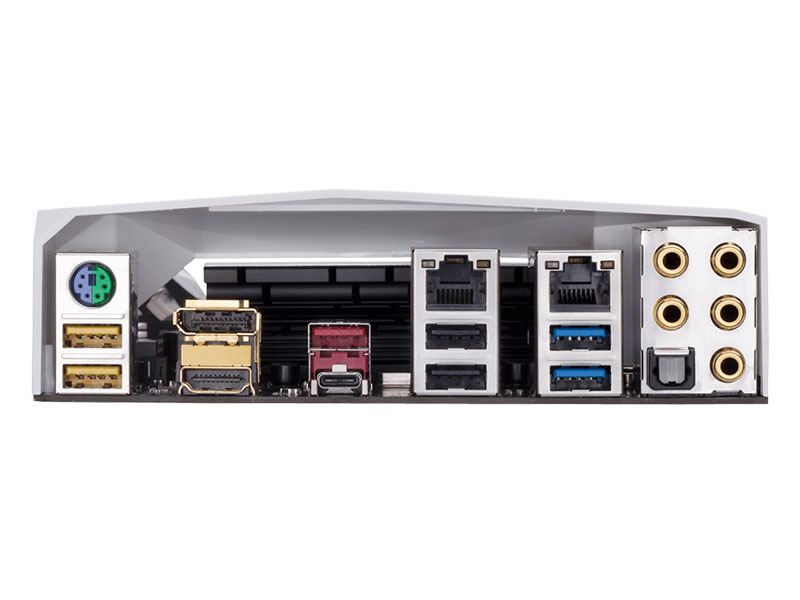

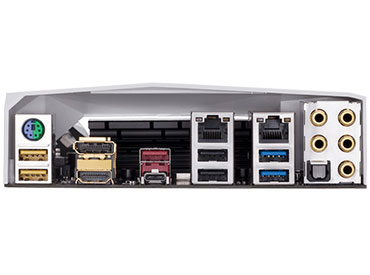

Conectores:
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red)
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
Motherboard driver disk
One RGB (RGBW) LED strip extension cable
Quick Installation Guide
1 x G Connector

Garantía: 36 Meses
