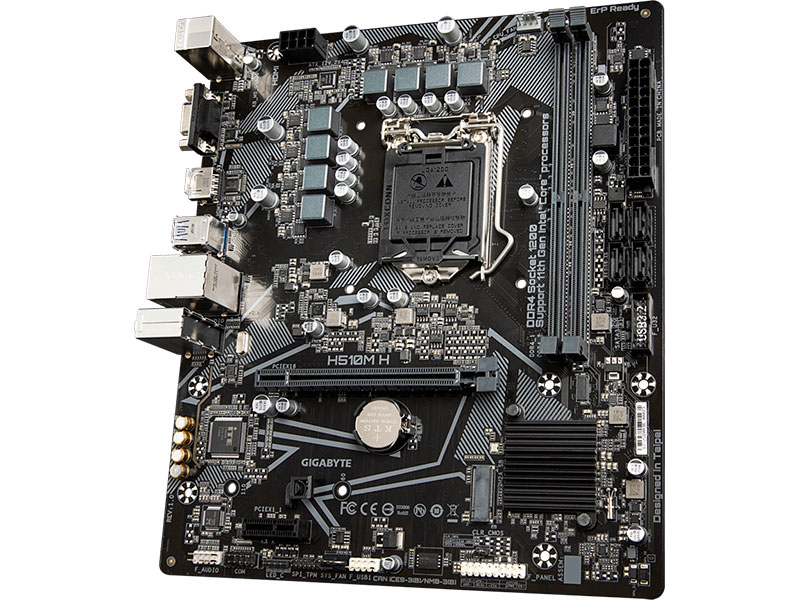

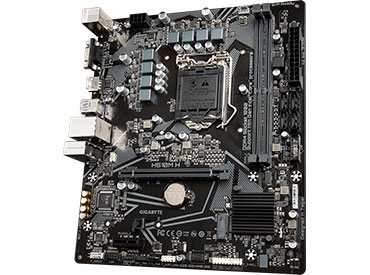

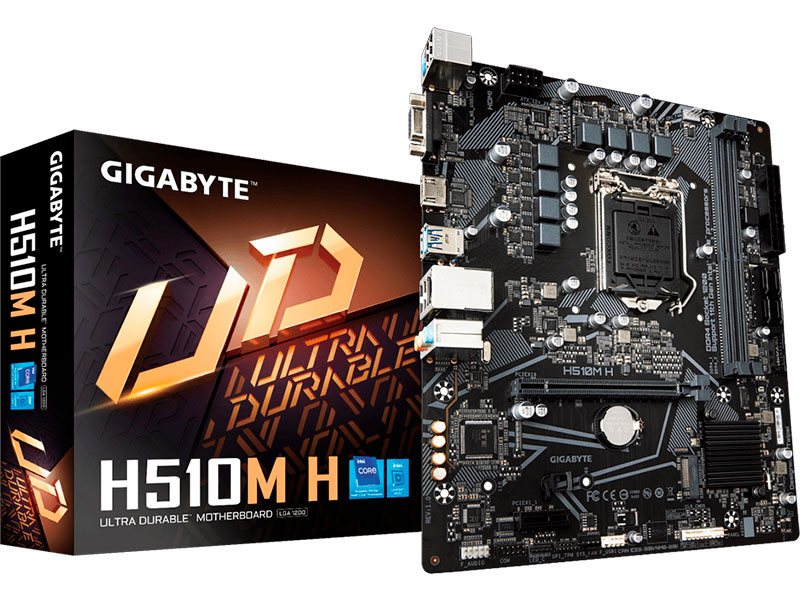

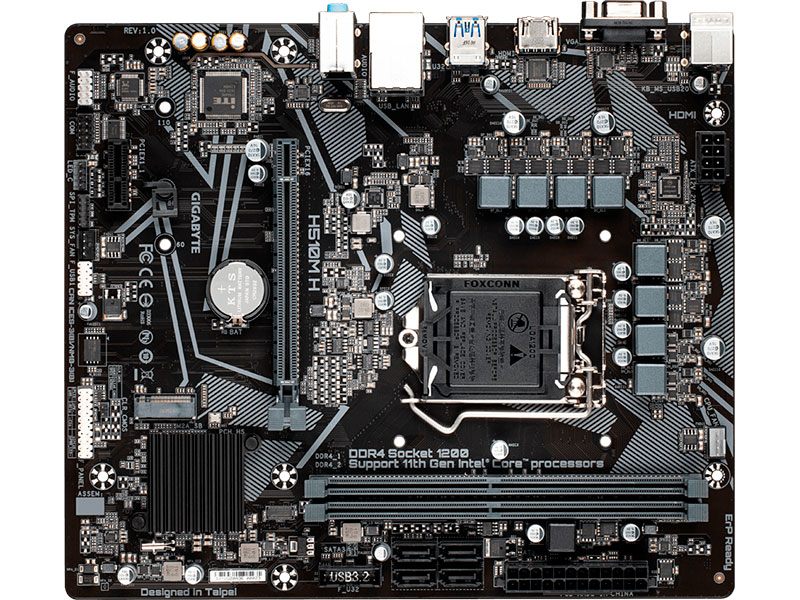

Marca: Gigabyte
Modelo: H510M H (rev 1.0)
Socket: Intel® Socket 1200
Chipset: Intel® H510 Express
Soporte de Procesadores:
- Intel® 11ᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5
- Intel® 10ᵐᵃ generación: Intel® Core™ i9 / Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron®
Memoria:
- Procesadores Intel® Core™ i9/i7/i5 11ᵃ generación:
Soporte para módulos de memoria DDR4 3200/3000/2933/2666/2400/2133 MHz
- Procesadores Intel® Core™ i9/i7 10ᵐᵃ generación:
Soporte para módulos de memoria DDR4 2933/2666/2400/2133 MHz
- Procesadores Intel® Core™ i5/i3/Pentium®/Celeron® 10ᵐᵃ generación:
Soporte para módulos de memoria DDR4 2666/2400/2133 MHz
- 2 x DDR4 DIMM, Max. 64GB (32 GB single DIMM capacity)
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1x HDMI con una resolución máxima de 4096 x 2160 @ 30 Hz
- 1x D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
* Soporte para HDMI 1.4 y HDCP 2.3.
Máxima memoria compartida: 512 MB
Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
* Supported by 11th Generation processors only.
- 1 x PCI Express x1 slot (PCIEX1_1)
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Almacenamiento:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
LAN:
- Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Audio:
- Realtek® Audio codec
- Audio de alta definición
- 2/4/5.1/7.1-channel
USB:
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Características Especiales:
- Soporte para APP Center:
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
- Soporte para Q-Flash
- Soporte para Xpress Install
Soporte Sistema Operativo:
- Windows 10 64-bit

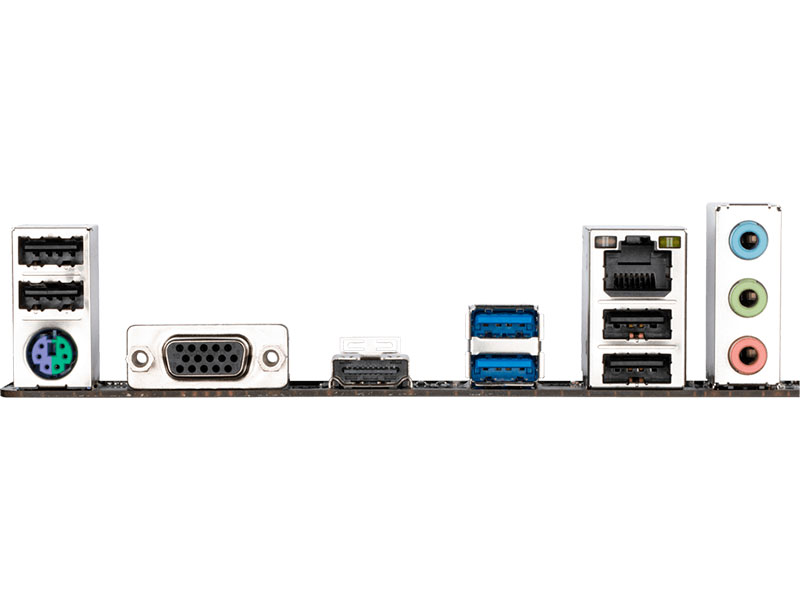

Conectores:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Tamaño:
Micro ATX Form Factor
24.4cm x 21.0cm
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Incluye:
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
Motherboard driver disk
Garantía: 36 Meses
