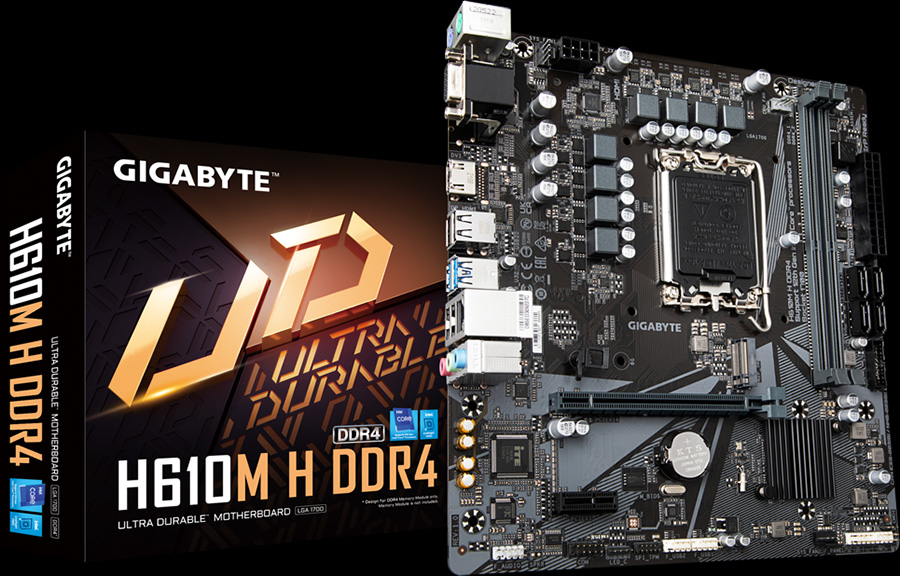

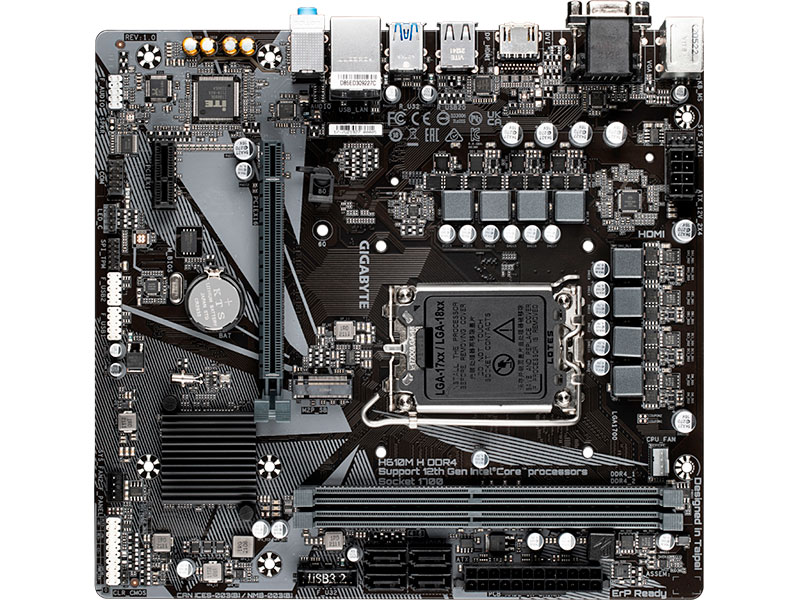

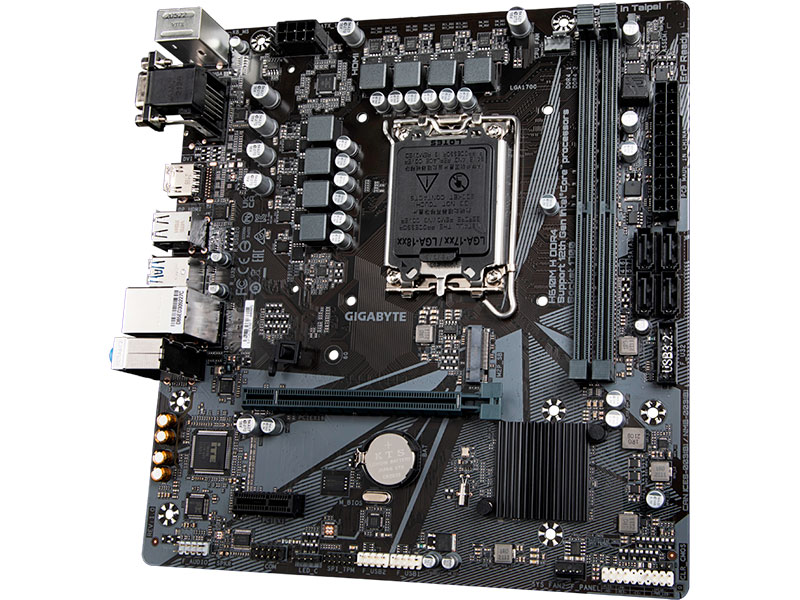

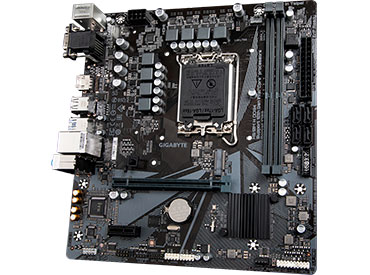

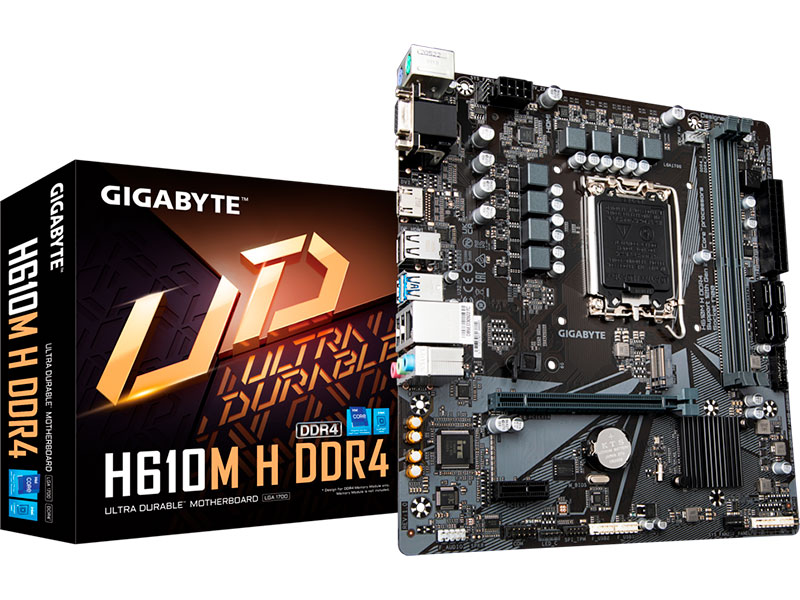

Marca: Gigabyte
Modelo: H610M H DDR4 (rev. 1.1/1.3)
Socket: LGA1700
Chipset: Intel® H610 Express
Soporte de Procesadores:
- Intel® 12ᵃ generación: Procesadores Intel® Core™, Pentium® Gold y Celeron®
Memoria:
- Soporte para módulos de memoria DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode)
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Soporte para módulos de memoria Extreme Memory Profile (XMP)
Gráficos:
Gráficos integrados en el CPU (Soporte para Intel® HD Graphics)
- 1x D-Sub con una resolución máxima de 1920 x 1200 @ 60 Hz
- 1x HDMI con una resolución máxima de 4096 x 2160 @ 60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Puertos de expansión:
- 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
- 1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Almacenamiento:
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
LAN:
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Audio:
- Realtek® audio CODEC
- Audio de alta definición
- 2/4/5.1/7.1-channel
USB:
Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Características Especiales:
- Soporte para APP Center:
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
- Soporte para Q-Flash
- Soporte para Xpress Install
Soporte Sistema Operativo:
- Windows 11 64-bit
- Windows 10 64-bit

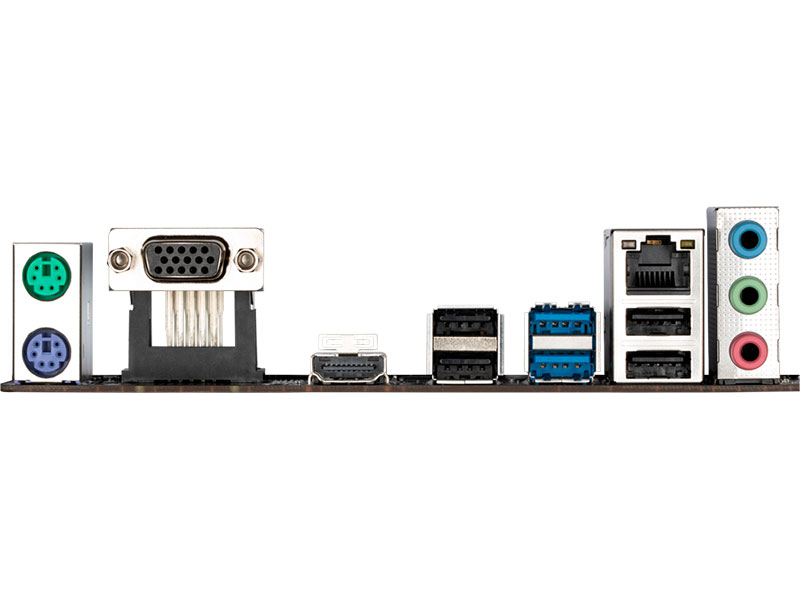

Conectores:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI 2.0 port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Conectores Internos de E/S:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Tamaño:
Micro ATX Form Factor
23.0cm x 21.5cm
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Incluye:
User's manual
Motherboard driver disc
2 x SATA 6Gb/s cable(s)
I/O Shield
Garantía: 36 Meses
