Marca: Gigabyte
Modelo: X570 AORUS ELITE (rev. 1.0)
Socket: AM4
Chipset: AMD X570
Soporte de Procesadores:
- Ryzen™ 5000 Series
- Ryzen™ 5000 G-Series
- 3rd Gen Ryzen™
- 3rd Gen Ryzen™ with Radeon™ Vega Graphics
- 2nd Gen Ryzen™
- 2nd Gen Ryzen™ with Radeon™ Vega Graphics

Memoria:
- 4 x DDR4 DIMM sockets soportando hasta 128 GB (32 GB single DIMM capacity)
- AMD Ryzen™ 5000 series processors / 3rd Generation AMD Ryzen™:
Soporte para módulos de memoria DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Soporte para módulos de memoria DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- 2nd Generation AMD Ryzen™ processors / 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors / AMD Ryzen™ with Radeon™ Vega Graphics processors:
Soporte para módulos de memoria DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
- Soporte para módulos de memoria ECC Un-buffered DIMM 1Rx8/2Rx8
- Soporte para módulos de memoria non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
- Arquitectura de memoria Dual Channel
- Soporte para módulos de memoria Extreme Memory Profile (XMP)

Gráficos:
Integrados en los procesadores AMD Ryzen™ con Gráficos Radeon™ Vega:
- 1 x HDMI Con resolución máxima de 4096 x 2160 @ 60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
Máxima memoria compartida: 16 GB

Puertos de expansión:
Integrated in the CPU (PCIEX16):
- 3rd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- 2nd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors / AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
- Integrated in the Chipset (PCIEX4/PCIEX1)
1 x PCI Express x16 slot, supporting PCIe 4.0* / 3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen™ processors only.
3 x PCI Express x1 slots, supporting PCIe 4.0* / 3.0
* For 3rd Generation AMD Ryzen™ processors only.

Tecnología Multi-Gráficos:
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

Almacenamiento:
- Integrated in the CPU (M2A_SOCKET):
3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
- Integrated in the Chipset (M2B_SOCKET):
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support)
* For 3rd Generation AMD Ryzen™ processors only.
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB:
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

LAN:
Intel® GbE LAN chip (10/100/1000 Mbit)

Audio:
Realtek® ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Capacitores de audio de alta calidad y protección de ruido, iluminación LED con trayectoria de seguimiento

Características Especiales:

Soporte para APP Center:
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Soporte para Q-Flash Plus
Soporte para Q-Flash
Soporte para Xpress Install

Soporte Sistema Operativo:
Windows® 10 64-bit

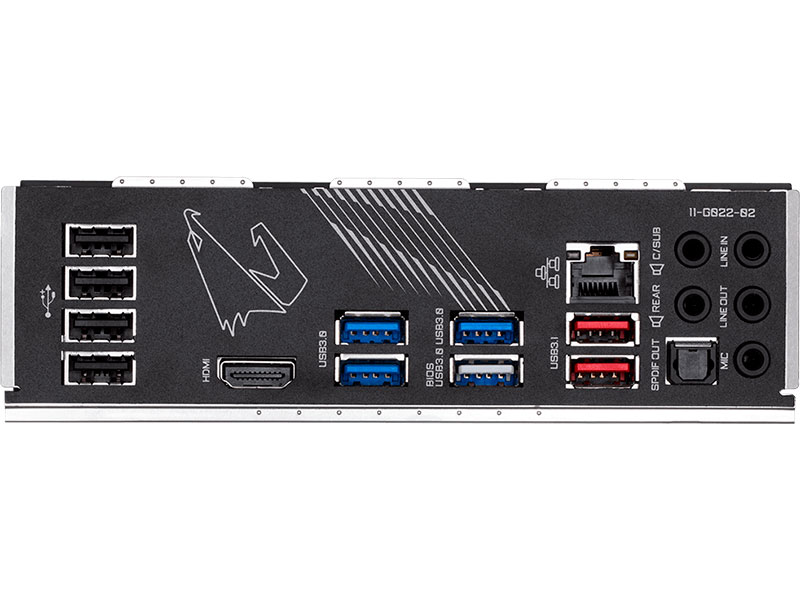

Conectores:
4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

Tamaño:
ATX Form Factor
30.5cm x 24.4cm

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Incluye:
User's manual
Quick Installation Guide
4 x SATA 6Gb/s cable(s)
1 x G Connector
Motherboard driver disk
M.2 screw(s)/M.2 standoff(s)

Garantía: 36 Meses
